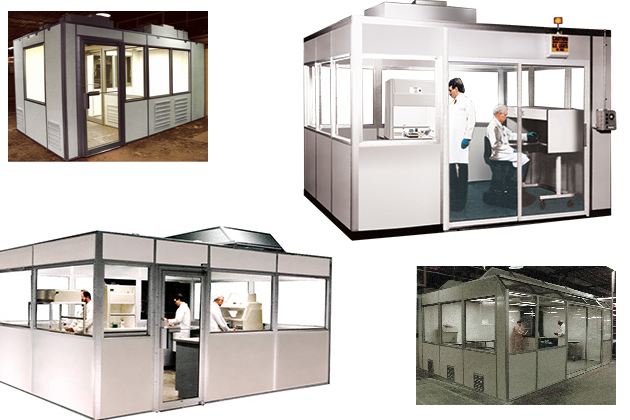

Modular Clean Rooms & Labs

Flexible, pre-engineered modular rooms built to meet your exact laboratory requirements.

HEMCO Modular Clean Rooms & Labs are engineered for performance, safety, and adaptability. These modular environments provide a cost- and time-effective alternative to traditional construction, allowing facilities to be quickly installed, expanded, or reconfigured with minimal downtime.

Wall panel options support thermal control, chemical resistance, sound reduction, and fire-rated applications. Roof and ceiling systems can be designed for load-bearing capacity or suspended systems to support overhead supply plenums.

Expert Help For Your Laboratory Needs

Chat with HEMCO's sales team to find products and configurations that suit your unique needs and laboratory specifications.

Talk to Our Sales Team

Modular Labs

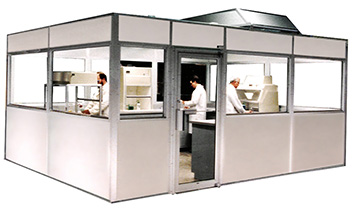

ModuLab – Designated Lab Work Area

Modular workspaces constructed to meet your specific laboratory specifications.

Pre-engineered modular construction for fast delivery — on time and on budget
Adaptable to existing lab spaces or warehouse environments
Can be assembled, moved, modified, and reconfigured as needs change
Insulated wall systems with chemical-resistant, easy-to-clean surfaces
Compatible with furniture layouts, fume hoods, and controlled airflow systems

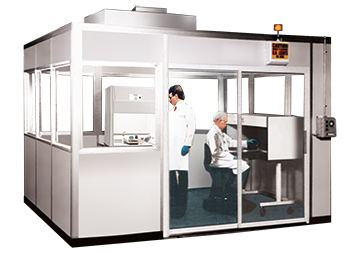

Regulated Lab Work Area

Dedicated modular work environments designed for containment and visibility.

All-glass modular construction with distinctive angled upper panel
Allows full visual observation of personnel and processes
Serves as secondary containment between lab operations and surrounding areas
Transparent walls provide an open, well-lit workspace
Isolates and contains hazardous operations
Can incorporate existing walls into the enclosure

Quick Ship Modular Clean Labs

Modular Labs and Applications - Industrial Quality Control Laboratory

HEMCO ModuLab room structures are innovative, pre-engineered modular laboratory workspaces that are built to your exact process, size and design requirements, for ventilation and safety.

Hazardous Materials Testing
CMM/Calibration Lab
Designated Control Rooms
Additional Lab Space

As technologies change, companies need facilities that can immediately be put into use or quickly adapt with a minimum amount of installation, time, and cost.

The Modular Clean Lab features a pre-engineered modular wall panel system that is a cost effective and time efficient alternative to traditional construction. It gives you a fully equipped, high quality enclosure that is easily expanded or relocated as needs change. Determine where the room should be located, assemble the Modular Clean Lab, connect services and start your process.

The Modular Clean Lab can fit a wide range of applications. Wall panel options are available to meet thermal, chemical resistance, sound, and fire control requirements. Room roof panels can offer load bearing capacity and suspended ceiling systems are available for pressurized overhead supply plenums.

Modular Clean Labs can be shipped knocked-down to fit through a standard doorway for easy on-site erection. If desired, it can be shipped pre-assembled for turnkey operation complete with laboratory fume hoods, furniture, and all component equipment to meet your laboratory requirements. You can detail your specific requirement on our convenient specification planner.

Standard Sizes of UniLab Modular Labs

(Custom sizes available to your specs)

Rooms include: laboratory base cabinets, countertops (yellow), fluorescent lighting (blue), and slide entry door (purple). Request a tech data sheet for room specifications.

*If a Fume hood, sink or HEPA filtered supply is required, consult Factory for details.

Plan View Room #1

Cat. No. 80068 (8’ x 6’ X 8’)

Cat. No.	Room #1 Description	Qty
80068	8’w X 6’d x 8’ h Modular Lab (3) Solid Walls	1
	8’ wide Sliding Door	1
	Air Grill	1
	Vapor Proof light fixture with switch	1
	Lab furniture and worksurface, on (1) wall	1

Plan View Room #2

Cat. No. 80088 (8’ x 8’ X 8’)

Cat. No.	Room #2 Description	Qty
80088	8’w X 8’d x 8’ h Modular Lab (3) Solid Walls	1
	6’ wide Sliding Door	1
	Air Grill	1
	Vapor Proof light fixture with switch	2
	Lab furniture and worksurface, on (2) walls	1

Plan View Room #3

Cat. No. 80812 (12’ x 8’ X 8’)

Cat. No.	Room #3 Description	Qty
80812	12’w X 8’d x 8’ h Modular Lab (3.5) Solid Walls	1
	6’ wide Sliding Door	1
	Air Grill	1
	Vapor Proof light fixture with switch	3
	Lab furniture and worksurface, on (2) walls	1

Plan View Room #4

Cat. No. 80816 (16’ x 8’ X 8’)

Cat. No.	Room #4 Description	Qty
80816	16’w X 8’d x 8’h Modular Lab (3.5) Solid Walls	1
	8’ wide Sliding Door	1
	Air Grill	1
	Vapor Proof light fixture with switch	4
	Lab furniture and worksurface, on (3) walls	1

Plan-A-Lab Worksheet

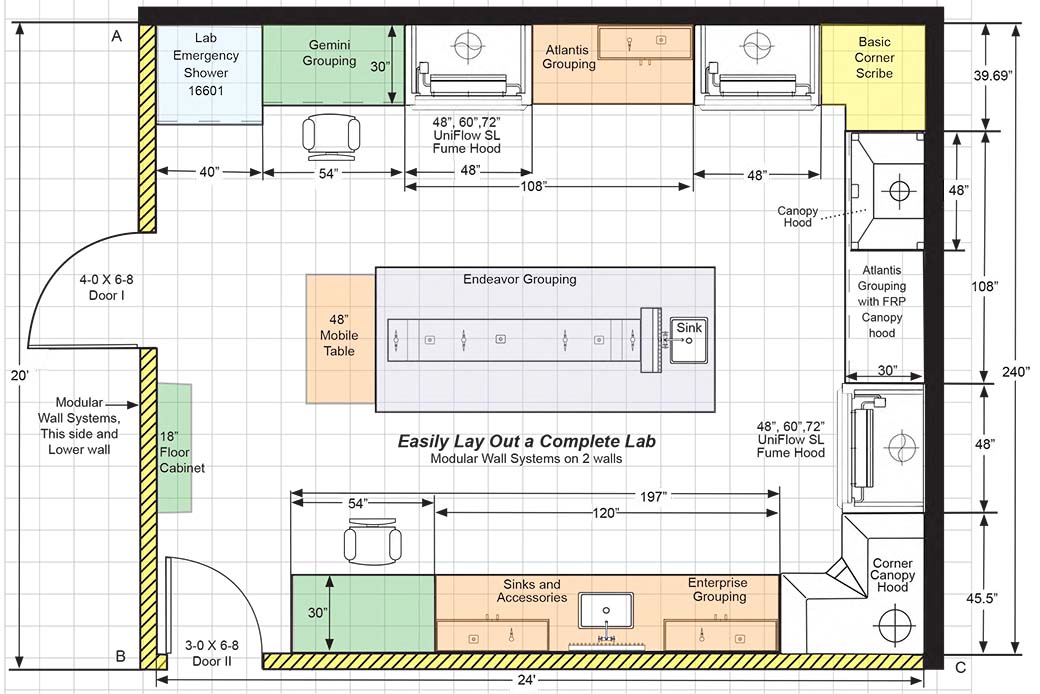

The HEMCO Plan-A-Lab enables you to conveniently lay out your lab furniture and your pre-engineered modular clean lab. For more information request the Modular Clean Room Brochure. Shown below is a 20’ X 24’ (2) wall system. Existing walls in black, new walls in yellow slash mark.

Furniture Layout Instructions

Determine the dimensions of the area (wall to wall) where the proposed lab furniture will be located.
Position the countertops in desired location for optimal work flow efficiency and ergonomics.
Remember to allow a wider dimension of 42” for aisle width. Higher traffic aisles require a wider dimension.
Locate water drain and supply locations for required sink placement.
Decide if backsplashes, rear curbs, or island reagent shelves are required.
Specify the style of grouping or individual cabinet selection.
If utility services are required, such as electrical services, service fixture keycocks, DI or cold water faucets, and safety services, please locate their placement on the benchtops.
Specify fume hood model or size if required .

Should a modular room structure be required to isolate the lab work area from a surrounding warehouse or production area, follow these steps.

Specify inside dimension requirements, verify available height clearance above the room, and verify the distance to the roof above. see above diagram.
Determine the number, type, and size of doors required and whether windows are needed.
If air conditioning is required, please detail the number of people, heat load of proposed lab instruments, ambient surrounding temperature, and the desired location for HVAC (e.g. floor, wall, roof, etc.).
Advise the class of clean room and if an airlock will be necessary.
Consider if the proposed lab can be accessed from a dock area.
