HEMCO offers a robust catalogue of EnviroMax accessories that fit seamlessly into your enclosures and lab design. Built for durability and stability, each product is meant to keep your laboratory working efficiently without interruption.
Expert Help For Your Laboratory Needs
Chat with HEMCO's sales team to find products and configurations that suit your unique needs and laboratory specifications.
EnviroMax Bench Stands & Worksurfaces

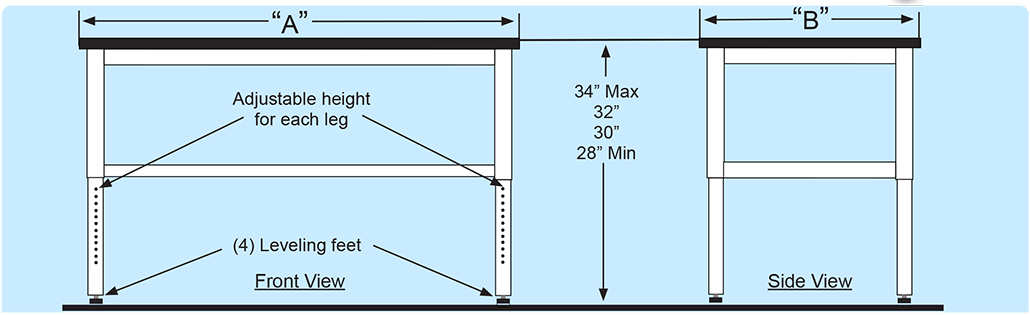

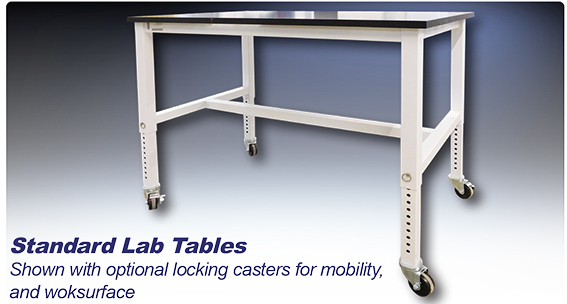

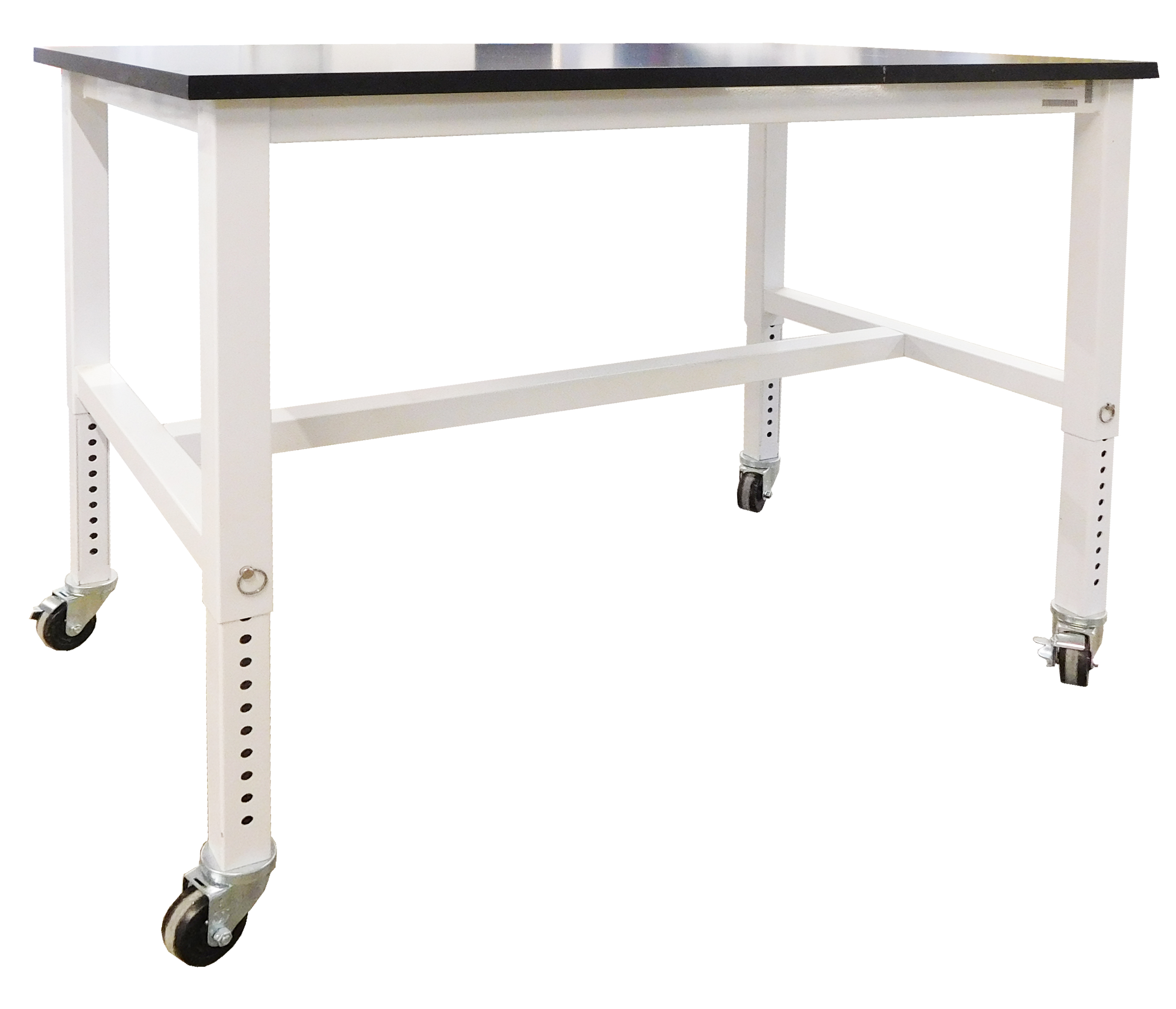

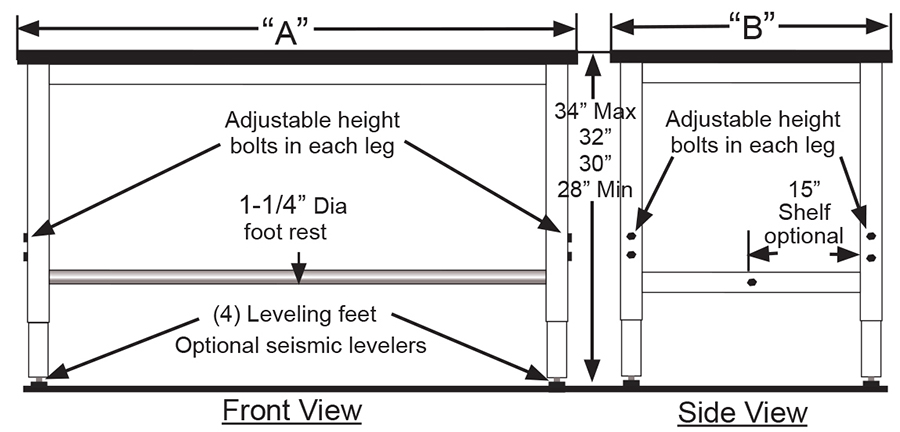

Standard Lab Tables
Available in 4’, 5’, 6’ & 8’ widths. Depths of 30” & 36”.
Tested to 2000 lb. load capacity.
Adjustable telescoping 2” square steel legs adjust to 28”, 30”, 32” & 34” heights.
Sturdy dual locking bolts on each leg.
Height adjustable leveling legs on all four legs.
Standard color: Lab White, (optional colors are available)
SEFA Certified
Black Phenolic Worksurface (not included)
Depth “B” | Heavy Duty Tables | |||
|---|---|---|---|---|
Width“A” | ||||
48” | 60” | 72” | 96” | |
30” | 54831 | 56031 | 57231 | 59631 |
36” | 54832 | 56032 | 57232 | 59632 |
Epoxy Worksurfaces | ||||
30” | 20425 | 20525 | 20625 | 20825 |
36” | 20435 | 20535 | 20635 | 20835 |
Phenolic Worksurfaces | ||||
30" | 20428 | 20528 | 20628 | 20828 |
36" | 20438 | 20538 | 20638 | 20838 |
Casters (4) Heavy Duty, with 2 locking Cat.No. 54444 | ||||

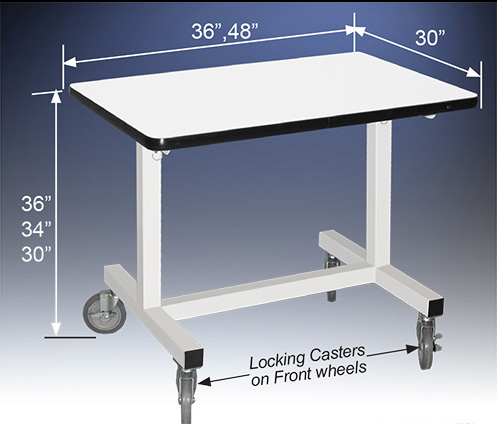

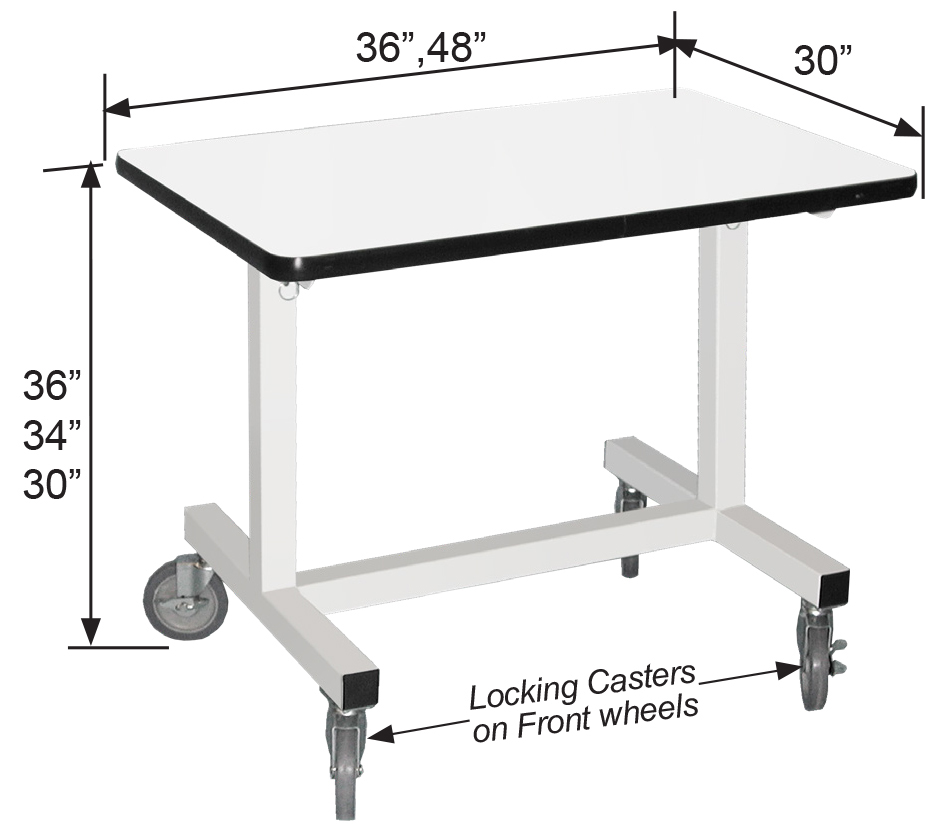

T - Frame Mobile Tables
The table is adjustable from 30 to 36 inches in height. Is is of welded steel construction with a phenolic resin work surface.
Mobile table is an ideal lab cart and can accommodate:
MicroFlow I, II & III Workstations
Demonstration Hoods
VSE Vented Safety Enclosures
Table Top Fume Hoods
Welded all steel construction, chemical resistant epoxy powder coated finish color white.
(2) locking casters & (2) Non-locking Casters included
Phenolic resin worksurface
Mobile Table 36” wide | 50318 |
Mobile Table 48” wide | 50418 |
Magnehelic Gauge Options
Minihelic Gauge
Gauge monitors the pressure across the HEPA filter. Gauge conveniently mounts on the fume hood or on the filter housing. Measure range is from 0 to 2.0” wg. Gauge is 3” dia. accurate within 5%
Cat. No. 51300
Magnehelic Gauge
Gauge measures static pressure across the HEPA filter. Can mount on the fume hood or the filter housing. Range of measurement is from 0 to 2”wg. Gauge is 5” dia. accurate within 2%.
Cat. No. 51301
Mini Photohelic Gauge
Series MP Mini-Photohelic differential pressure gauge with two SPDT switching set points, is designed to measure and control positive, negative, or differential pressures consisting of noncombustible and non-corrosive gasses. Gauge is 3” dia.
Cat. No. 51302
Digihelic Gauge
Series DH3 Gauge allows selection of pressure, velocity, or volumetric flow operation. Programming is easy using menu keys to access 5 menus which provide access to security level, selection of pressure, velocity of flow operation, and selection of engineering units. Gauge is 3” dia.
Cat. No. 51303
Fan Powered HEPA Module
Fan Powered Module
Module is 99.99% efficient.@ 0.3 micron HEPA filter,with 90 FPM @ initial 0.47 w.g., 115v low watt A/C, 60Hz 1ph, includes prefilter, on/off/variable speed control, powder coated steel housing.
HEPA filters can be changed from inside the enclosure, without removing the unit from the ceiling, Can be ordered with optional integral lighting.
Filter units feature an upstream gel channel on the final filter which provides a leak-free seal between the filter and the housing.
Size | With Lights | Without Lights |
|---|---|---|
24" X 24" | 50122 | 50322 |
24" X 48" | 50124 | 50324 |
24" X 72" | 50126 | 50326 |
Explosion Proof Module
Unit features a 24” X 48”, 99.99% efficient HEPA filter, prefilter, spark resistant fan, filter change from the inside of the enclosure.
Cat. No. 50424
HEPA Exhaust (Ductless)
Reverse flow HEPA filter module draws air out through the HEPA filter and discharges air back to lab. 24” X 48” 99.99% efficient HEPA filter
Size | With Lights | With Out Lights |
|---|---|---|
24" X 24" | 50232 | 50332 |
24" X 48" | 50234 | 50334 |
HEPA or Carbon Exhaust (Ducted)
Housing features a hinged access door for either HEPA or carbon filter change out. For exhaust requirements to 1000 cfm. Housing is installed on roof of enclosure.
Size | Housing with Filter | Replacement Filter |
|---|---|---|
HEPA Filter | 50189 | 50095 24" X 24" X 12" |
Carbon Filter | 50298 | 52101 24" X 24" X 12" |
Prefilter ctn of (6) | -- | 52001 24" X 24" X 12" |
Replacement Filters
Replacement Filters Description | Cat. No. |
|---|---|
Prefilter, 30% efficient 20” X 20” X 1” | 52190 |
HEPA filter 99.99% efficient (Inside Replaceable) (for 24” X 24” module) | 52201 |
HEPA filter 99.99% efficient (Non Inside Replaceable) (for 24” X 24” module) | 52070 |
HEPA filter 99.99% efficient (Inside Replaceable) (for 24” X 36” module) | 52214 |
HEPA filter 99.99% efficient (Non Inside Replaceable) (for 24” X 36” module) | 52013 |
HEPA filter 99.99% efficient (Inside Replaceable) (for 24” X 48” module) | 52200 |
HEPA filter 99.99% efficient (Non Inside Replaceable) (for 24” X 48” module) | 52090 |
EnviroMax Electrical Options
Fluorescent Lighting
Standard 4’ T-5,(2) bulb, 115V, with bulbs changed from the outside. Bulbs are not included. UL listed:
24”Cat. No. 50224
36” Cat. No. 50236
48” Cat. No. 50248
Vapor Proof Lighting
Fluorescent fixture, (2) tube T-8, 115V, with white steel reflector and changed from the outside. UL listed.
48” Cat. No. 50348
Explosion-Proof Light Std
For use in hazardous locations. 115V or 230V.bulb not included. Factory installed but not wired. UL listed. Class I Div II, Groups A,B,C,D, Class II Div II Groups F&G.
Cat. No. 50034
Explosion-Proof Fixture
For use in hazardous locations. Gray, two coat epoxy finish with easily removed prismatic globe. Accepts long neck bulb up to 300 watts, (bulb not included) 115 / 230V. Factory mounted, not wired. UL listed. Class I Div I Group C, D, Class II Div I Group E, F & G.
Cat. No. 50038

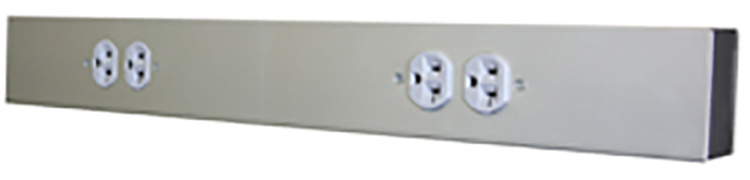

Multi-Plug Chase
Anodized aluminum raceway can be supplied with a variety of electrical or data services.
Specify length, type of plug, quantity of plugs, type of data outlet.
Electrical Pedestal Boxes
Brushed cast aluminum box with stainless steel cover. Please specify desired location of pedestal box.
| Single Gang | Double Gang | ||
|---|---|---|---|---|
Single Face | Double Face | Single Face | Double Face | |
Duplex/115 V/15a | 50131S | 50131D | 50031S | 50031D |
Single/230 V/20a | 50132S | 50132D | 50032S | 50032D |
GFI Duplex/115 V/20a | 50135S | 50135D | 50033S | 50033D |
One Duplex and One Single / 250 V/20a | 50034S | 50034D | ||
Service Set of Six
UV Ultraviolet Lighting for use in hazardous locations. Single tube 115V or 230V. UL listed. Polished stainless steel reflector.
Cat .No. 50348
Duplex Receptacle
115V single phase receptacle. Installed on front column of fume hood. Includes junction box and cover plate. UL listed.
amps | Cat. No. |
|---|---|
15 amps | 50029-1 |
20 amps | 50029-2 |
Single Receptacle
230V single phase receptacle. Installed on front column of fume hood. Includes junction box and cover plate. UL listed.
amps | Cat. No. |
|---|---|
15 amps | 50030-1 |
20 amps | 50030-2 |
GFI Duplex
115V consists of combination ground fault interrupters, 3-wire polarized grounded. Includes junction box & cover plate.
amps | Cat. No. |
|---|---|
15 amps | 50048-1 |
20 amps | 50048-2 |
Data Port
Cat 6, 10 gigabit ethernet, (2) port fixture. Installed on front column. Cabling not included.
Cat No. 50053
Plumbing Fixtures
Keycock
Fixture includes turret and shank connection.
Single Outlet | 50014 |
Double Outlet | 50014-2 |
Triple Outlet | 50014-3 |
Quad Outlet | 50014-4 |
Deck Mounted
Mixing Faucet. Hot and cold water faucet. 6” gooseneck. 3/8” NPT.
Cat. No. 50026

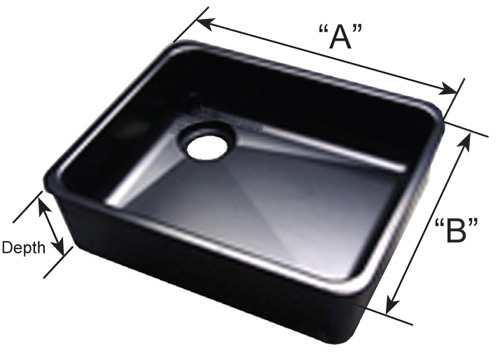

Epoxy or Sinks
Chemical resistant sinks are molded with integral flanges allowing drop-in mounting. Sinks include 1 1/2” IPS threaded outlet. Please specify location in counter top layout of A and B dimensions.
A | B | Depth | Cat. No. |
|---|---|---|---|
9” | 6” | 6” | 42021 |
16” | 12” | 8” | 42022 |
18” | 15” | 11” | 42026 |
24” | 16” | 8” | 42027 |
EnviroMax Ducting Accessories
Ducting and accessories are chemical resistant and easy to install
Flexible and Rigid PVC Ducting | 4” | 6” | 8” | 10” | 12” | 14” | |
|---|---|---|---|---|---|---|---|

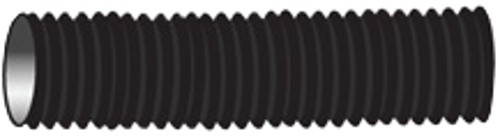

| 1. Flexible Ducting neoprene impregnated fiberglass reinforced with steel helix wire. Standard 12’ lengths. Each piece includes two strap clamps. | Cat. No. 80051 | Cat. No. 80052 | Cat. No. 80053 | Cat. No. 80054 | Cat. No. 80055 | Cat. No. 80056 |

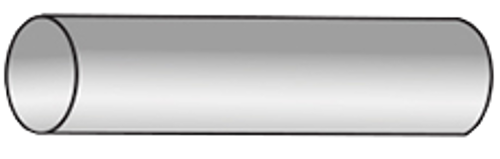

| 2. PVC Rigid Ducting chemical resistant for permanent installations. Standard 10’ lengths with straight ends. | Cat. No. 82004 | Cat. No. 82006 | Cat. No. 82009 | Cat. No. 82011 | Cat. No. 82013 | Cat. No. 82015 |

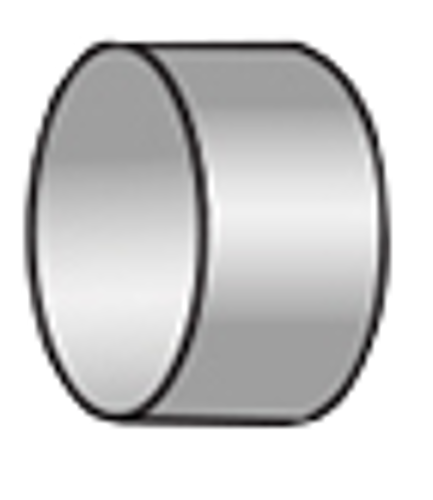

| 3. PVC Coupling required to connect straight sections. | Cat. No. 82147 | Cat. No. 82149 | Cat. No. 82153 | Cat. No. 82157 | Cat. No. 82159 | Cat. No. 82160 |

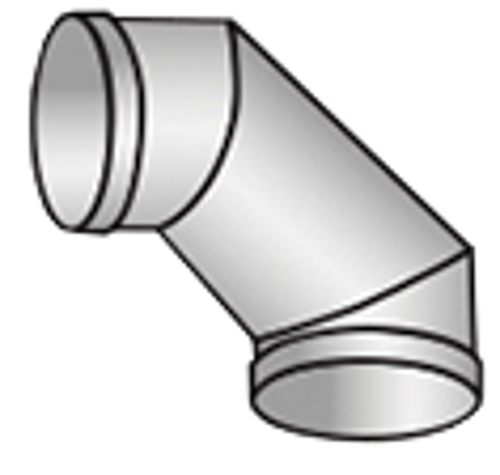

| 4. PVC 90 degree Elbow used in order to offset obstacles. Has belled ends for duct connections. | Cat. No. 82060 | Cat. No. 82061 | Cat. No. 82063 | Cat. No. 82066 | Cat. No. 82068 | Cat. No. 82069 |

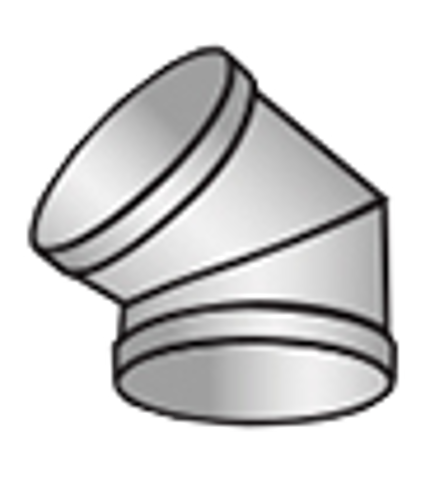

| 5. PVC 45 degree Elbow used in order to offset obstacles. Less static pressure loss than a 90 degree elbow. Has belled ends for duct connections. | Cat. No. 82082 | Cat. No. 82083 | Cat. No. 82085 | Cat. No. 82087 | Cat. No. 82089 | Cat. No. 82090 |

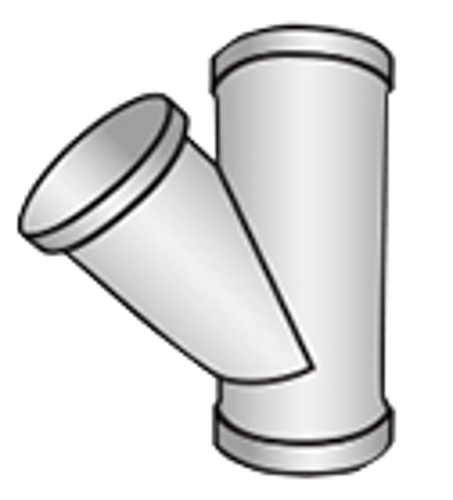

| 6. PVC 45 degree WYE lateral for joining common ductwork in multiple hood designs. Branch diameter may be sized to 2” to 4” smaller than main diameter. Has belled ends for duct connections. | Cat. No. 82216 | Cat. No. 82218 | Cat. No. 82226 | Cat. No. 82229 | Cat. No. 82233 | Cat. No. 82234 |

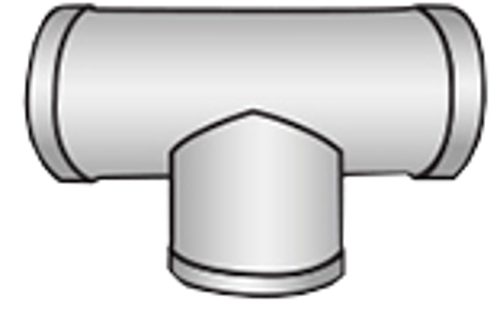

| 7. PVC Tee used in manifold exhaust systems. Has belled ends for duct connection. | Cat. No. 82034 | Cat. No. 82036 | Cat. No. 82038 | Cat. No. 82040 | Cat. No. 82044 | Cat. No. 82046 |

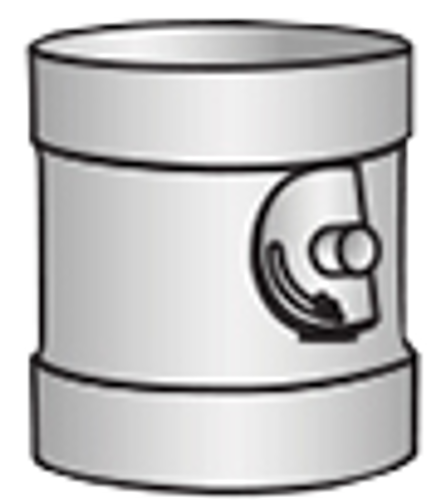

| 8. PVC Butterfly Damper modifies cfm for single or multiple hood arrangement. Has belled ends for duct connection. | Cat. No. 82450 | Cat. No. 82452 | Cat. No. 82454 | Cat. No. 82456 | Cat. No. 82458 | Cat. No. 82460 |

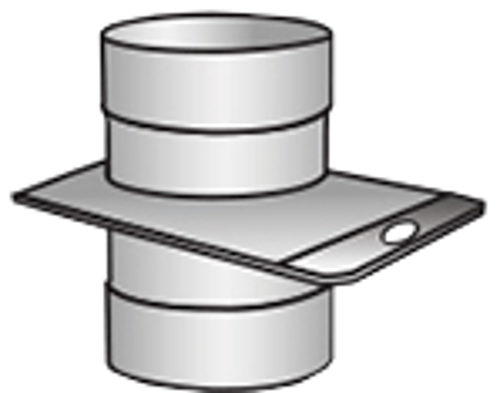

| 9. PVC Blast Gate Damper a gate that slides in and out to control cfm. Has belled ends for duct connection. | Cat. No. 82369 | Cat. No. 82371 | Cat. No. 82373 | Cat. No. 82375 | Cat. No. 82377 | Cat. No. 82379 |

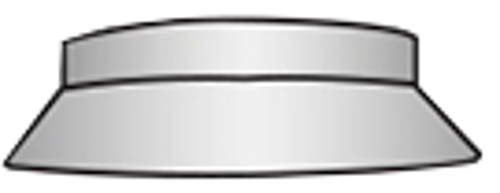

| 10. PVC Rain Skirt slips over straight pipe on roof to slope water away from cutout. | Cat. No. 82328 | Cat. No. 82330 | Cat. No. 82332 | Cat. No. 82334 | Cat. No. 82336 | Cat. No. 82337 |

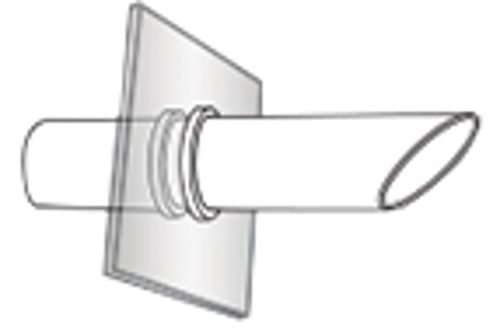

| 11. PVC Vent outlet for horizontal venting through wall or window. Angled end prevents rain from entering. Male connector included. | Cat. No. 80074 | Cat. No. 80076 | Cat. No. 80077 | Cat. No. 80078 | Cat. No. 80079 | Cat. No. 80080 |
| 12. Zero Pressure Weather Cap discharges fumes vertically away from roof. Self-draining. Minimal static pressure loss. This is the recommended weather cap. | Cat. No. 82350 “A”=16” | Cat. No. 82352 “A”=24” | Cat. No. 82354 “A”=32" | Cat. No. 82356 “A”=40" | Cat. No. 82358 “A”=48” | Cat. No. 82359 “A”=56” |

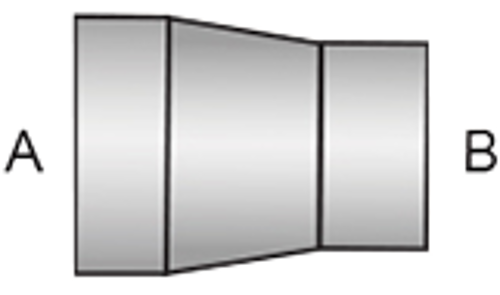

| 13. Round to Round Transition to smaller duct diameter. | Cat. No. 82613 4"- 6" | Cat. No. 82615 6"- 8" | Cat. No. 82617 8"- 10" | Cat. No. 82619 10"- 12" | Cat. No. 82620 12"- 14" | Cat. No. 82621 14"- 16" |
EnviroMax Enclosure Blowers
A complete line of belt and direct drive exhaust blowers that are chemical resistant & available in standard and explosion-proof models. HEMCO blowers are designed to operate effectively and efficiently to remove noxious & hazardous fumes. Standard 115V 60Hz international electrical configuration of 220V 50Hz AC available.
Blower Recommendations
1. Blowers should be mounted on the roof in-order that the ducting leading to the blower inlet is under negative static pressure. If exhaust blowers are mounted inside the building, all ducting connected to the blower outlet will be under positive static pressure, if a leak were to develop in the section of the duct inside the building, toxic & or hazardous fumes could be forced out of the ductwork and into that area of the building.
2. To achieve the lowest practical noise level in the exhaust system, we suggest that the following measurements be used when there is no conflict with other specifications of the system:
Use vibration isolators or mounting blower exhaust assembly.
Install a blower fan that will deliver the correct CFM and static pressure with the lowest practical impeller wheel RPM.
If possible, use a duct size large enough to keep duct velocity under 1800 FPM velocity.
Use a flexible connection at the fan inlet to isolate mechanical transmission of noise from the ducting between the hood and the exhaust blower.
Exhaust blower system should be designed with the fewest possible elbows or other fittings. Use radius type elbows & avoid using square elbows. Use gradual tapered transitions where necessary, & avoid abrupt changes in configuration or cross sectional area.
3. When ordering an exhaust blower, specify the orientation of discharge desired. Vertical up blast discharge is the most common and will be supplied unless otherwise specified.
4. All fans are shipped with clockwise rotation when viewed from the motor end of the assembly.
5. For normal usage, the standard for both the blower housing and impeller wheel is epoxy coated.
6. Blowers used for hood exhaust at altitudes above 1,000 feet, may require a correction factor to provide the correct CFM and static pressure.
Contact factory for details relating to your specific application.

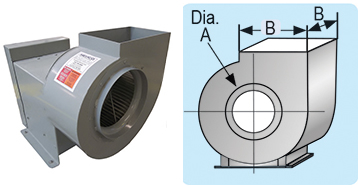

Epoxy Coated Steel Blower Belt Drive
Standard (STD) belt drive steel blower and impeller wheel are epoxy coated for superior chemical resistance. Explosion-proof blowers (EXP) have epoxy coated, non-sparking aluminum impeller wheel. V-belt drive and adjustable pulleys permit field balancing. Seven discharge positions to suit installation. Weather housing is furnished. Motor has thermal overload protection. Specify: 115 V single phase, 230 V single phase, 230/460 V three phase or 208 V (consult factory). 1 year manufacturer’s warranty.
Catalog Number and Static Pressure | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
cfm | A Inlet Diameter | B Outlet Size | 1/2” Static Pressure | 3/4” Static Pressure | 1” Static Pressure | 1 1/2” Static Pressure | ||||||||
HP | STD | EXP | HP | STD | EXP | HP | STD | EXP | HP | STD | EXP | |||
296 | 8 7/8” | 10 1/8” x 4 1/8” | 1/4 | 51701 | 51801 | 1/4 | 51702 | 51802 | 1/4 | 51703 | 51803 | 1/4 | 51704 | 51804 |
474 | 8 7/8” | 10 1/8” x 4 1/8” | 1/4 | 51705 | 51805 | 1/4 | 51706 | 51806 | 1/4 | 51707 | 51807 | 1/2 | 51708 | 51808 |
652 | 8 7/8” | 10 1/8” x 6 3/8” | 1/2 | 51709 | 51809 | 1/2 | 51710 | 51810 | 1/2 | 51711 | 51811 | 1/2 | 51712 | 51812 |
800 | 8 7/8” | 10 1/8” x 6 3/8” | 1/2 | 51713 | 51813 | 1/2 | 51714 | 51814 | 1/2 | 51715 | 51815 | 3/4 | 51716 | 51816 |
914 | 9 7/8” | 11 1/2” x 8 1/4” | 1/2 | 51717 | 51817 | 3/4 | 51718 | 51818 | -- | -- | -- | -- | -- | -- |
1044 | 9 7/8” | 11 1/2” x 8 1/4” | 1/2 | 51719 | 51819 | 1/2 | 51720 | 51820 | 1/2 | 51721 | 51821 | -- | -- | -- |
1175 | 9 7/8” | 11 1/2” x 8 1/4” | 1/2 | 51722 | 51822 | 1/2 | 51723 | 51823 | 3/4 | 51724 | 51824 | -- | -- | -- |
1240 | 9 7/8” | 11 1/2” x 8 1/4” | 1/2 | 51725 | 51825 | 1/2 | 51726 | 51826 | 3/4 | 51727 | 51827 | 3/4 | 51728 | 51828 |

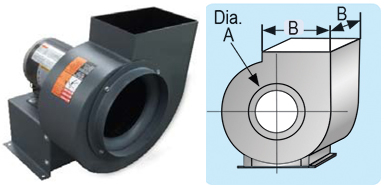

Epoxy Coated Steel Blower Direct Drive
Direct drive steel blower and impeller wheel are epoxy coated for superior chemical resistance. Explosion proof blowers have epoxy coated non-sparking aluminum impeller wheels. Motor is 115V, 1 phase and has thermal overload protection. 1 year manufacturer’s warranty.
Catalog Number and Static Pressure | ||||||||
|---|---|---|---|---|---|---|---|---|
A Inlet Diameter | B Outlet Size | HP | STD | EXP | 1/4” SP | 1/2” SP | 3/4” SP | 1” SP |
cfm | cfm | cfm | cfm | |||||
6” | 7” X 4-3/8” | 1/6 | 51177 | 51178 | 565 | 515 | 440 | 300 |
8” | 8-3/4” X 5-7/16” | 1/3 | 51179 | 51180 | 935 | 875 | 800 | 712 |
9” | 10-1/8” X 4-1/8” | 1/2 | 51181 | 51182 | 1050 | 980 | 920 | 850 |
9” | 10-1/8” X 5-1/8” | 3/4 | 51183 | 51184 | 1260 | 1220 | 1180 | 1100 |
Standard motors are 115V, 60Hz / 1 phase. Explosion proof motors are 115/230V, 60Hz, 1 phase. Other voltage, hertz, and phase motors are available.
Fume Hood Exhaust Blowers Ordering Info
HEMCO offers a complete line of chemical resistant non-metallic exhaust blowers in belt drive or direct drive options in standard or explosion proof models. Ideal for applications where corrosion resistance is critical. These blowers are available in polypropylene or fiberglass construction.
Blower Recommendations
1. It is recommended that exhaust blowers be located at the end of the ducting which is typically roof mounted. This ensures a negative pressure through out the ventilation system. However for applications where the duct is going directly out through a wall above a fume hood,one option is to have a fiberglass direct drive blower installed in the top of the fume hood. By having the blower internally mounted, the installation is simplified and convenient for duct connection and servicing. However there would be an airflow sound element associated to having the blower hood mounted.
2. By keeping the exhaust duct as short and as straight as possible, the total resistance will be reduced and by keeping the diameter of the duct correctly sized to the flow volume, noise and static pressure can be reduced.
3. Blower wheels for polypropylene and fiberglass blowers are polypropylene.
4. Vibration isolators are recommended when mounting the blower assemblies
5. HEMCO recommends that a sash stop be installed on the fume hood to limit the sash height for operation. By having stop at a half open position, the total CFM can be reduced by 50%; thus by reducing the volume, energy loss, duct diameter, motor and blower size, and sound is reduced.
Blower Description
CFM at 100 fpm face velocity
Housing is constructed of heavy gauged galvanized steel, with a baked enamel finish, to resist weather & chemical exposures.
Flange inlet collars enable easy connection to ductwork.
Wheel is dynamically balanced to minimize noise and increase efficiency.
Ball bearing pillow blocks are per-lubricated and resistant to both moisture & dirt.
Shaft is constructed of polished steel with a coating to prevent rust and corrosion.
Motors meet NEMA standards for single speed motors.
These blowers are ideally suited for both supply and exhaust applications in laboratories, educational, pharmaceutical, industrial, and other applications.
UniFlow SE & LE Fume Hoods | |||
|---|---|---|---|
Hood Width | Hood Depth | Full Open cfm | 1/2 Open cfm |
36” | 30” | 438 | 241 |
48” | 30” | 772 | 385 |
60” | 30” | 938 | 474 |
72” | 30” | 1162 | 592 |
96” | 30” | 1613 | 800 |
UniFlow CE Fume Hoods | |||
Hood Width | Hood Depth | Full Open cfm | 1/2 Open cfm |
30” | 24” | 378 | 189 |
36” | 24” | 460 | 230 |
48” | 24” | 654 | 327 |
72” | 24” | 960 | 480 |

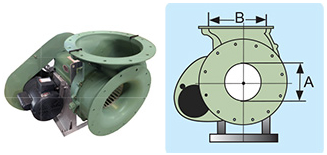

Polypropylene Belt Drive Blowers
High efficiency impellers produce low power consumption, reduced operating costs and quiet operation. 20 forward curved blades, in fire retardant polypropylene. Non-static and oil resistant v-Belt, cast iron pulleys, adjustable pulleys available, adjustment for tensioning and belt replacement. 230V explosion proof, non sparking, chemical resistant for hostile or hazardous environments. 115V single phase or three phase. Non-static and oil resistant V-belt, cast iron pulleys, adjustable pulleys available, adjustment for tensioning and belt replacement. 1 year manufacturer’s warranty.
Catalog Number and Static Pressure | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
cfm | A Inlet Diameter | B Outlet Diameter | 0.5” Static Pressure HP | 0.75” Static Pressure HP | 1.0” Static Pressure HP | ||||||
HP | STD | EXP | HP | STD | EXP | HP | STD | EXP | |||
400 | 6” | 6” | 1/4 | 51450 | 51850 | 1/4 | 51460 | 51860 | 1/4 | 51470 | 51870 |
800 | 8” | 8” | 1/4 | 51451 | 51851 | 1/3 | 51461 | 51861 | 1/3 | 51471 | 51871 |
1000 | 8” | 8” | 1/2 | 51452 | 51852 | 1/2 | 51462 | 51862 | 1/2 | 51472 | 51872 |
1200 | 10” | 10” | 1/2 | 51453 | 51853 | 1/2 | 51463 | 51863 | 1/2 | 51473 | 51873 |
1600 | 10” | 10” | 1 | 51754 | 51854 | 1 | 51464 | 51864 | 1 | 51474 | 51874 |
Variable Motor Speed Drive
Motor speed control can be used to manually adjust blower cfm. Adjustable speed control for 3-phase motors 3/4 to 10 horsepower at 230/460 volts and 50/60Hz. these drives provide high operation efficiency and constant input power factor throughout the entire speed range of 3 to 60Hz. Drives are rugged, reliable and backed by years of manufacturing and application experience in motors and controls. These drives are tailored to the variable torque loads in fans or fume hoods.
1/2 -5HP 230V 3ph, 50/60 Hz
Cat.No. 51402

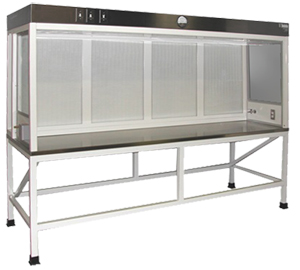

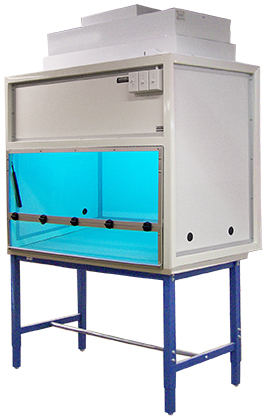

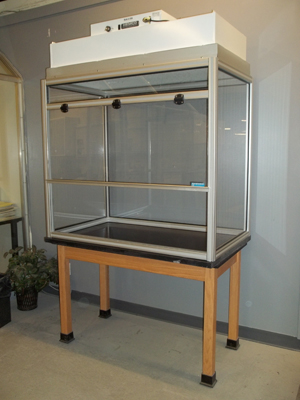

Laminar Flow Fume Hoods
Laminar Flow Fume Hoods / Clean Work Stations are designed to protect equipment or processes from contamination, by providing a HEPA filtered Class 100 environment. The workstation has user friendly clear acrylic side walls, convenient hinge-up front viewing window, and fluorescing lighting with all controls front mounted. Unit includes 115v power cord for immediate set-up and operation.
