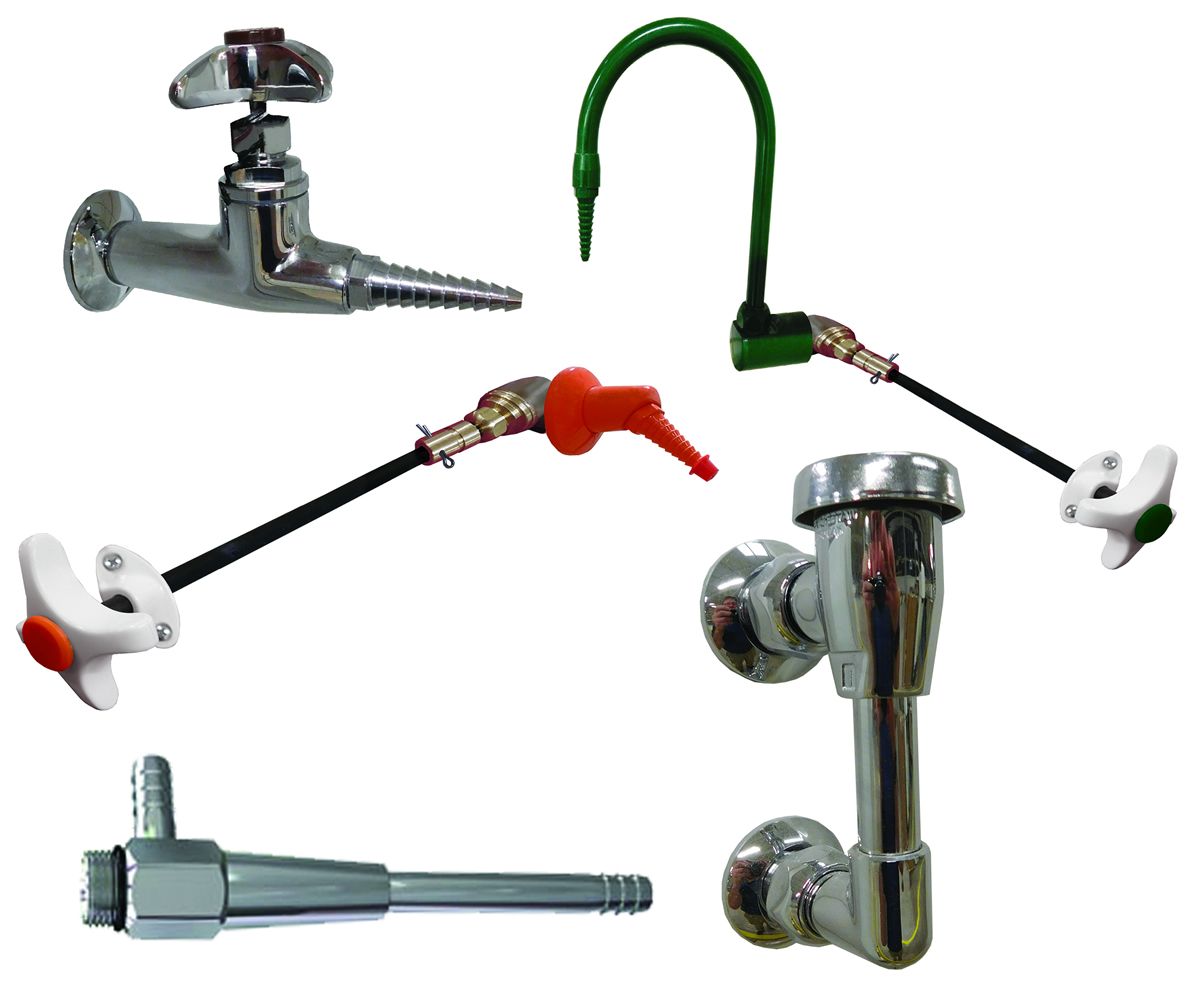

Fume Hood Wall Mounted Service Fixtures

HEMCO fume hood wall-mounted plumbing fixtures provide safe and convenient control of laboratory services, including gas, air, vacuum, and water.

Wall Mounted Service Fixtures

Service Fixture

Remote controlled single service outlet. color-coded index button with matching color coded serrated tip outlets.

Item. No. 50013

Turret Water Faucet

Cold water, remote controlled epoxy coated brass turret.

Item. No. 50012

PVC DI Faucet

Pure water 6” rigid PVC gooseneck.

Item. No. 50019

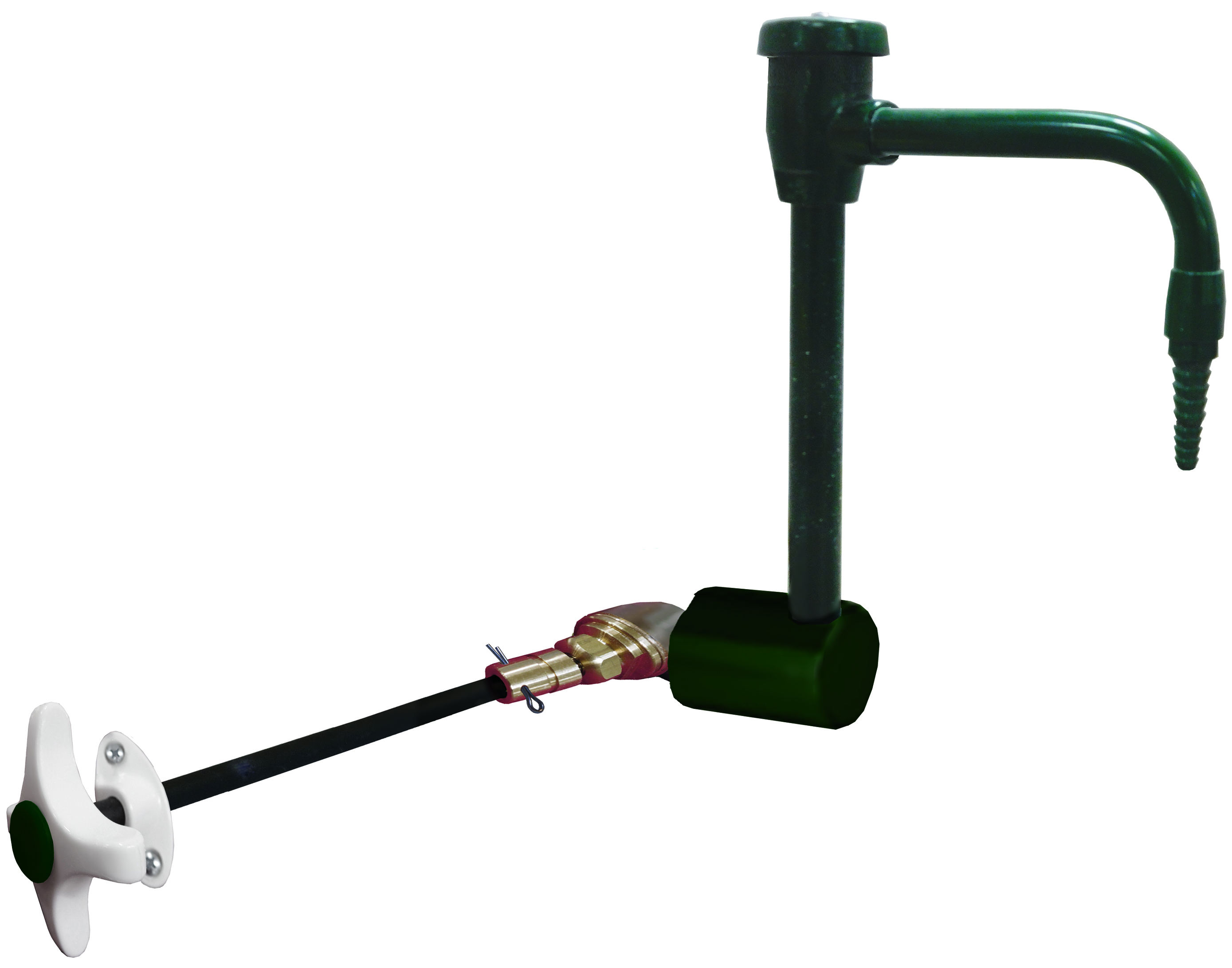

Water Faucet with Vacuum Breaker

Cold water remote controlled 6” swivel gooseneck. Turret & goose neck are epoxy coated brass.

Item. No. 50113-CW

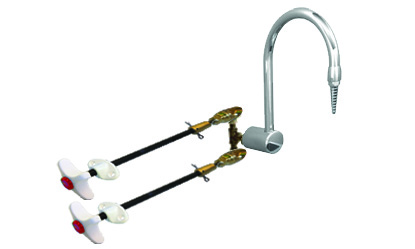

Gooseneck Mix Faucet

Hot and cold remote controlled 6” swivel gooseneck. Turret and gooseneck are epoxy coated brass.

Item. No. 50102

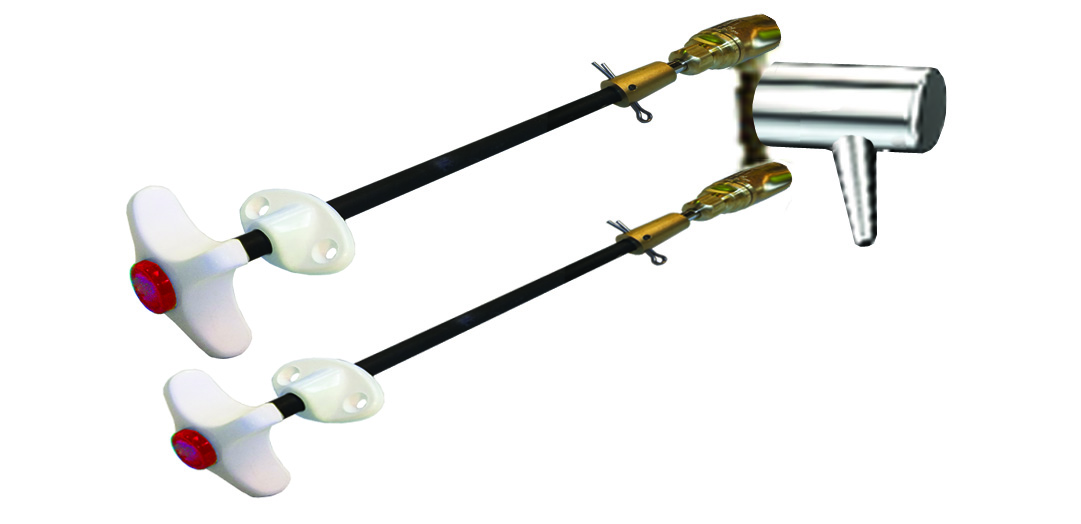

Turret Mix Faucet

Hot and cold water remote controlled turret. Turret is of epoxy coated brass.

Item. No. 50101

Keycock

Single flange mounted needle valve, keycock with integral flange and shank connection. Epoxy coated brass. 3/8” NPT with lock nut

Single Item. No. 50025
Double Item. No. 50125

Water Faucet with Vacuum Breaker

Cold water 6” swivel gooseneck. Epoxy coated brass.

Item. No. 50023

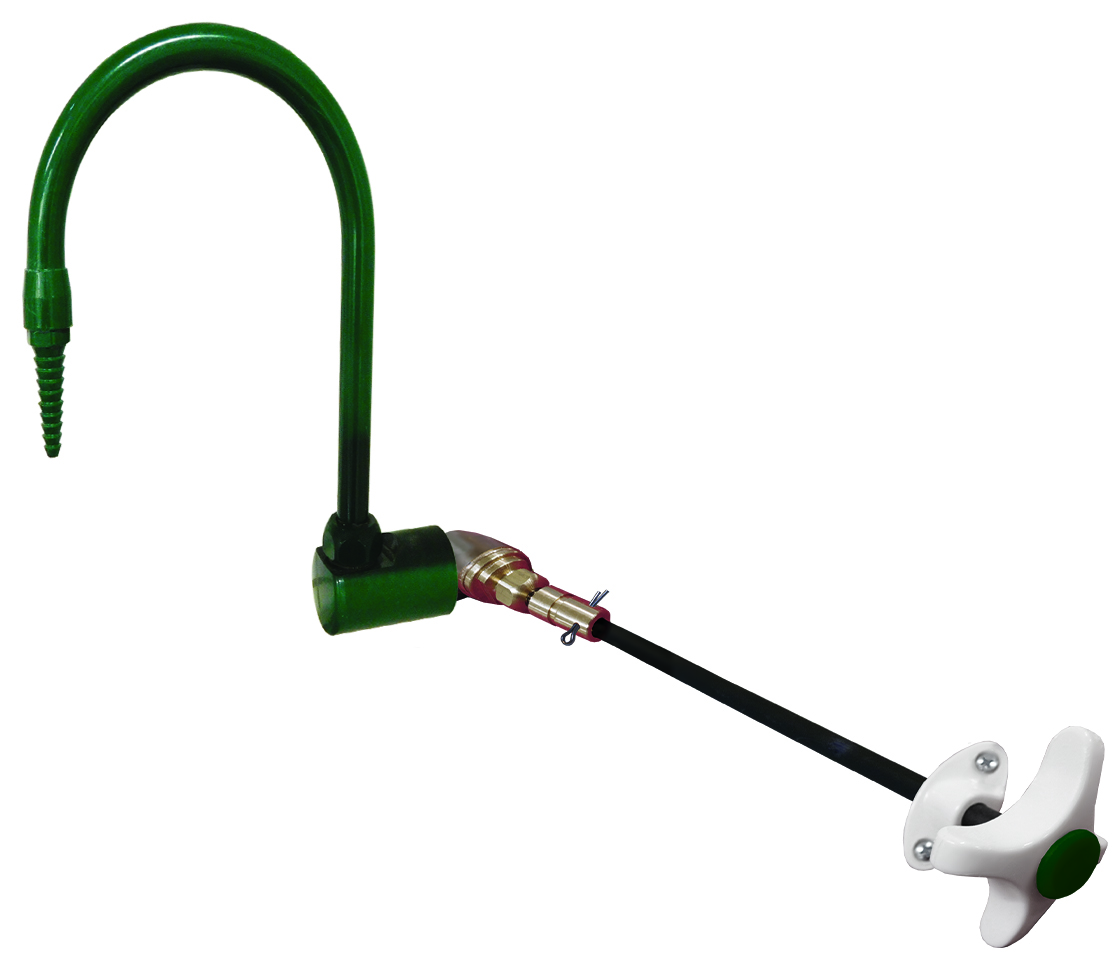

Gooseneck Water Faucet

Cold water remote controlled 6” swivel gooseneck. Turret and gooseneck are epoxy coated brass.

Item. No. 50112-CW

Tin-Lined DI Faucet

Pure water 6” swivel tin-lined gooseneck. Epoxy coated brass.

Item. No. 50022

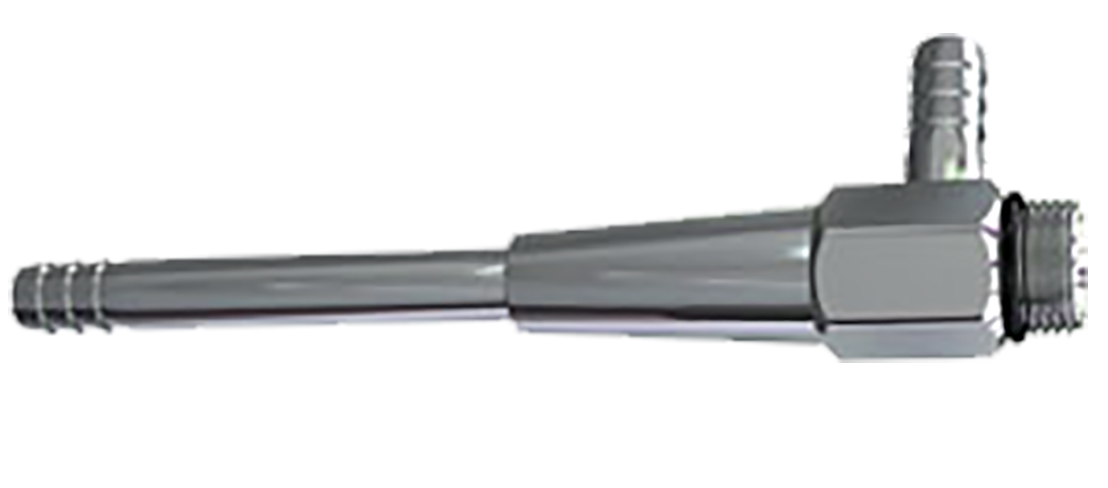

Aspirator

3/8” NPS male inlet Epoxy coated brass

Item. No. 50058

High Flow Water Valve, Straight Pattern

Ball valve construction with quarter turn open / close, used for supply and return connections

Item. No. 51023

External Mounted Vacuum Breaker

Breaker with 3/8” NPT inlet and outlet. Chrome plated brass.

Item. No. 50044
