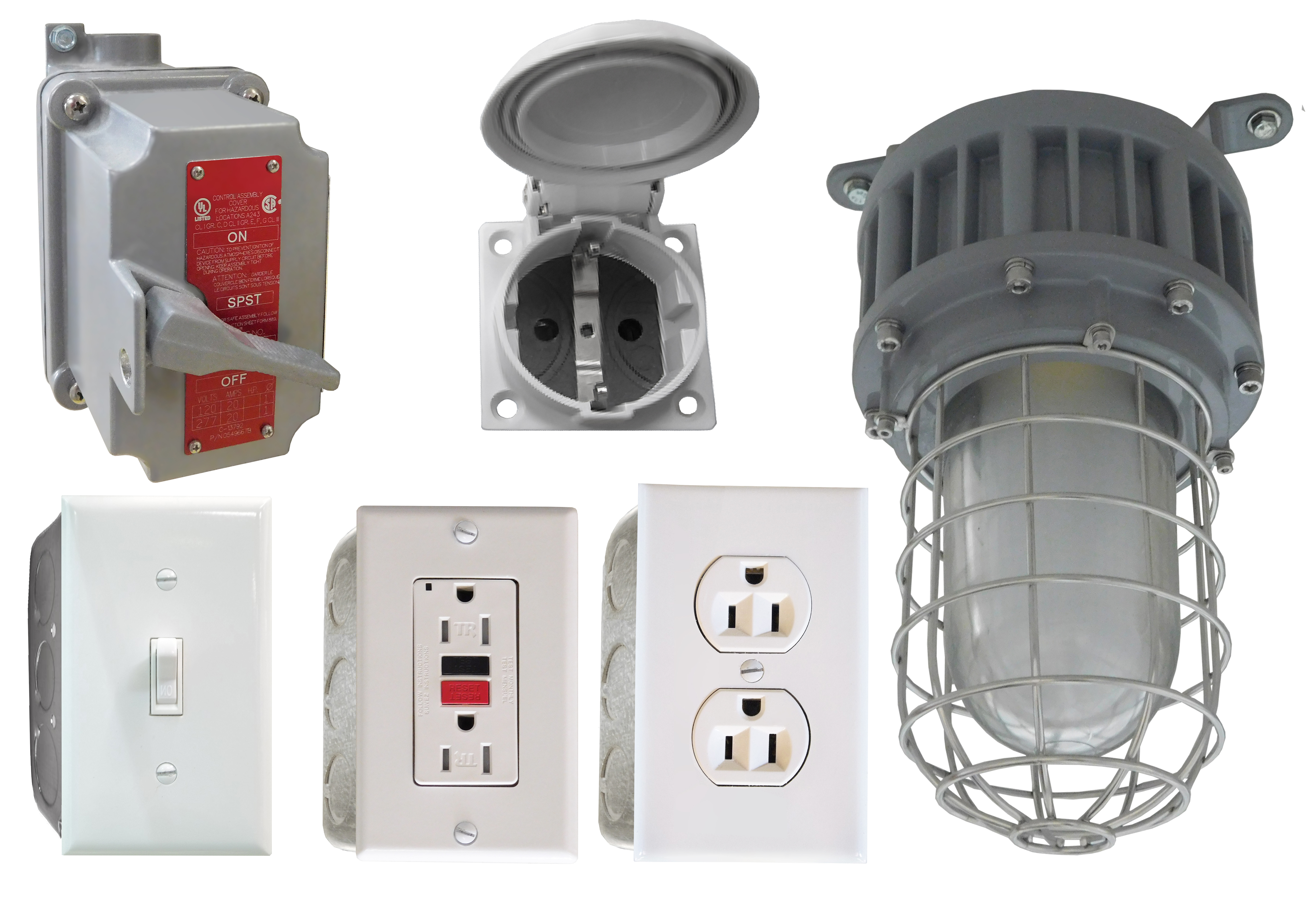

Fume Hood Electrical Services
Powering Your Fume Hoods
HEMCO's electrical services are UL, CSA, and CE listed and come factory-installed, wired to a single-point junction box when ordered with one of our fume hoods. All services must be wired to comply with local codes. Our sales and customer support teams can assist with any questions or wiring issues before purchase and during installation.
Receptacles and Power Access
Fume hood electrical receptacles provide convenient access to power for laboratory equipment and devices, mounted directly to the hood structure.
Available in multiple voltage configurations with integrated indicator light.
Duplex Receptacle
115V single phase receptacle. Installed on front column of fume hood. Includes junction box and cover plate. UL listed.
amps | Item. No. |
|---|---|
15 amps | 50029-1 |
20 amps | 50029-2 |
Single Receptacle
230V single phase receptacle. Installed on front column of fume hood. Includes junction box and cover plate. UL listed.
amps | Item. No. |
|---|---|
15 amps | 50030-1 |
20 amps | 50030-2 |
GFI Duplex
115V consists of combination ground fault interrupters, 3-wire polarized grounded. Includes junction box & cover plate. UL listed.
amps | Item. No. |
|---|---|
15 amps | 50048-1 |
20 amps | 50048-2 |
Data Port
Cat 6, 10 gigabit Ethernet, (2) port fixture. Installed on front column. Cabling not included.
Item. No. 50053

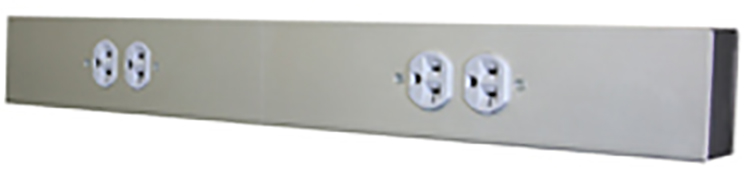

Electrical & Data Supply Chase
Anodized aluminum raceway can be supplied with a variety of electrical or data services. Specify length, type of plug, quantity of plugs, type of data outlet.
Item. No. 50086
Switches and Service Controls
Electrical switches and service controls allow safe and convenient operation of lighting, blowers, and connected systems.
Fume hood lighting systems are designed for durability, visibility, and safe operation in laboratory environments.
Light Switch
(standard)
115V/15 amps. Includes junction box and cover plate. UL listed.
Item. No. 50028-1
Blower Switch with Pilot Light
Includes junction box and cover plate. UL listed.
volts/amps | Item. No. |
|---|---|
115 V 15 amps | 50027-1 |
230 V 20 amps | 50027-3 |
Blower Switch
Mounted in a single gang receptacle box with face plate. Factory mounted not wired. Includes thermal overload protection. Double pole switch for up to 1 HP, single phase, 60 Hz 115V 50 Hz, 230V AC motors. UL listed.
Item. No. 50050

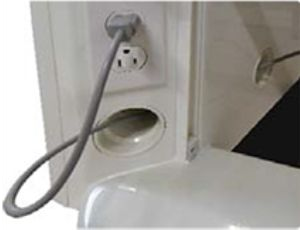

Service Port Pass-Through
Convenient port allows cords, tubes, or cables to pass to and from the hood.
Item. No. 50100
Lighting Systems
Fume hood lighting systems are designed for durability, visibility, and safe operation in laboratory environments.
Vapor-Proof Light
(bulb not included)
Factory installed. Accepts bulb up to 150w, 115V, UL listed, Standard on CE, Canopy, Universal and EcoFlow hoods.
Item. No. 50035

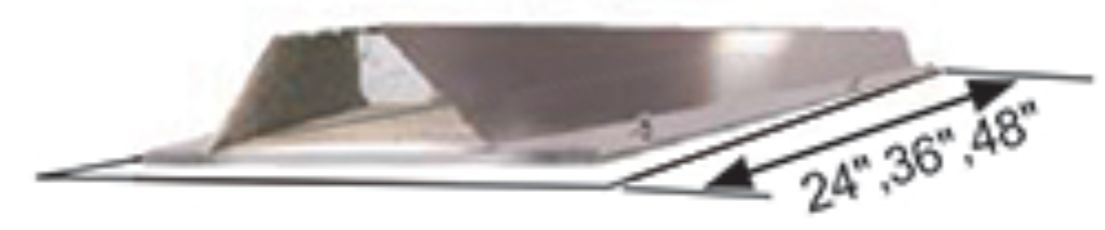

Vapor-Proof LED Light Fixture
LED fixture with composite reflector, (2) strip, 115V, UL listed. (LEDs included) LED has a 50,000 hour average life span. Standard on SE and LE Fume hoods.
Width | Item. No. |
|---|---|
24 inch | 51124 |
36 inch | 51136 |
48 inch | 51148 |
Fume Hood Explosion Proof Light Fixtures and Services
Explosion-proof components are designed for hazardous environments where flammable materials or vapors may be present.
Explosion-Proof Fixture Std Class I Div II
For use in hazardous locations. Gray, two-coat epoxy finish with easily removed prismatic globe. Factory mounted, not wired. Accepts compact fluorescent or LED, (bulb not included) 115V /230V UL listed. Class I Div II Group A, B,C,D Class II Div II Group F& G.
Item No. 50034
Explosion-Proof Fixture Std Class I Div II
For use in hazardous locations. Gray, powder coat finish with easily removed prismatic globe. Accepts compact fluorescent or LED, (bulb not included) 115V/230V. Factory mounted, not wired. UL listed. Class I Div I Group C, D, Class II Div I Group E, F & G
Item. No. 50038
Explosion-Proof Receptacle Class I Div I or I
For use in hazardous locations. Surface mount type with aluminum housing, 3-pole, 2-wire, Specify 115V/20 amp or 230V/20 amp. Not installed at factory. UL listed.
Item. No. 50037
Explosion-Proof Switch Class I Div I or I
For use in hazardous locations. Surface mount type with cast aluminum housing. Specify 115V/20 amp or 230V/20 amp. UL listed.
Item. No. 50036
Explosion-Proof Plug Class I Div I or II
Adaptable for use with all receptacles. 3-pole, 2-wire, Specify 115V/20 amp or 230V/20 amp AC. Not installed at factory. UL listed.
Item No. 50039
International Electrical Services
Electrical components are available for international applications with region-specific socket configurations.

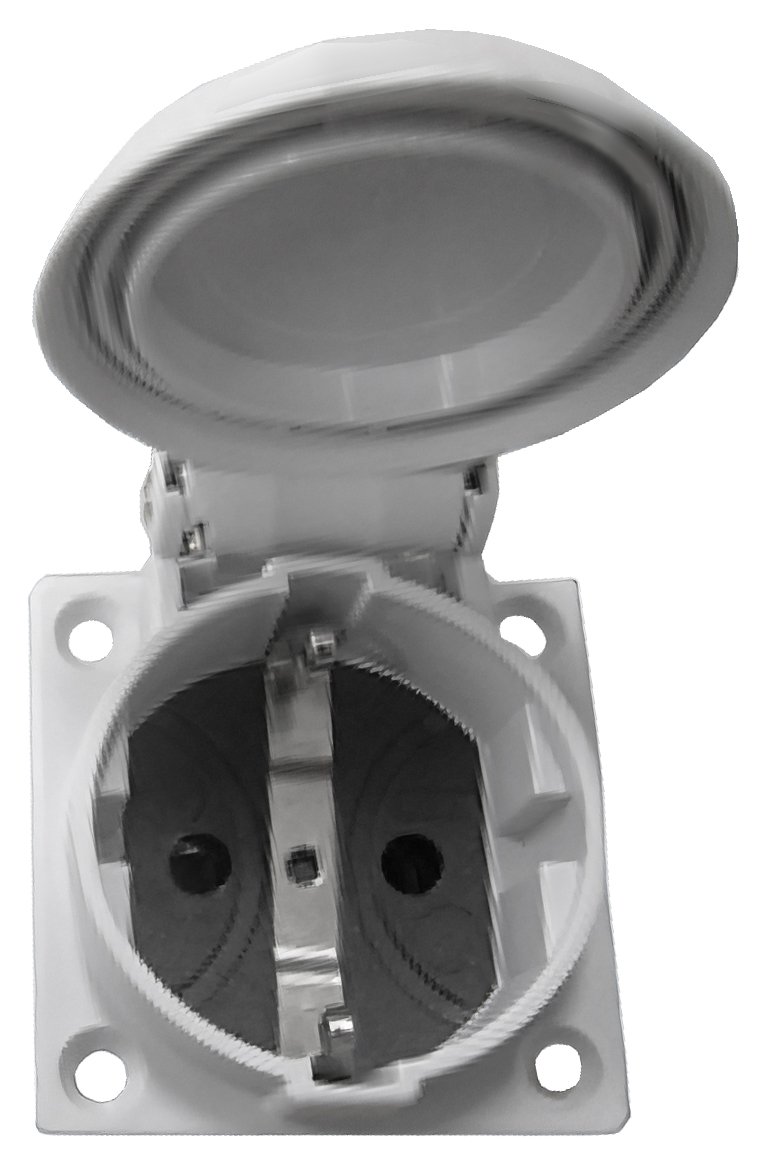

Continental European Socket with Cover Cap
Type : CEE7, color: gray, Rating 250V/16 amp, with box and cover,installed at factory.
Item. No. 50004
Indian / South / Africa Socket ISA
Type : BS546, color: white, Rating 250V/15 amp, with box and cover, installed at factory.
Item. No. 50006
United Kingdom / Ireland Shuttered Socket
Type : BS1363, color: white, Rating 250V/13 amp, with box and cover, installed at factory.
Item. No. 50007
Continental European Panel Mount Socket
Type : CEE7, color: white, Rating 250V/15 amp, with box and cover, installed at factory.
Item No. 50008
Applications
Fume hood electrical services are used in laboratory environments requiring safe, reliable power distribution and control, including research labs, industrial facilities, educational institutions, and regulated environments.
