Laboratory Fume Hoods

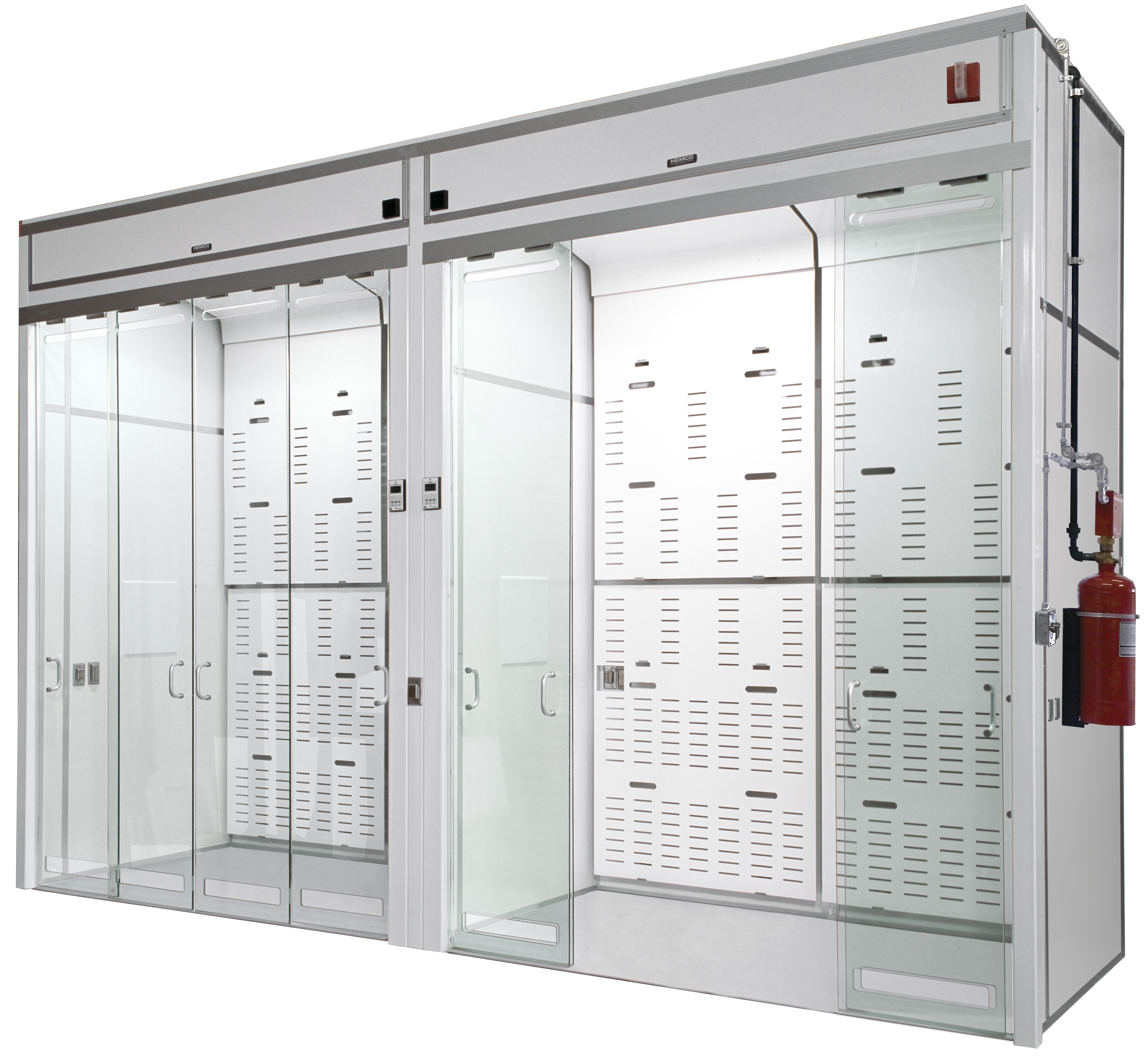

UniMax Walk-In Fume Hoods
Built for Large-Scale Laboratory Applications
HEMCO’s UniMax Floor-Mounted Walk-In Fume Hoods are designed to safely isolate large equipment, processes, and hazardous materials while effectively exhausting fumes and vapors from the workspace.
Built with durable, chemical-resistant materials and modular construction, UniMax hoods provide a flexible and long-lasting solution for laboratories requiring large containment areas and high-performance ventilation.
Expert Help For Your Laboratory Needs
Chat with HEMCO's sales team to find products and configurations that suit your unique needs and laboratory specifications.
What is a UniMax Fume Hood?

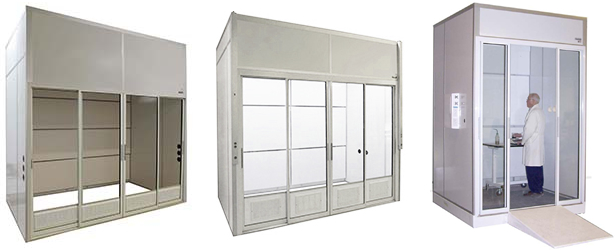

Designed for Large Equipment and Demanding Processes
UniMax Walk-In Fume Hoods are engineered for applications that require full walk-in access, making them ideal for handling large apparatus, drums, or specialized processing equipment.
Their modular construction allows the hood to be shipped knockdown, moved through standard doorways, and assembled on-site, making installation efficient and adaptable to your facility.

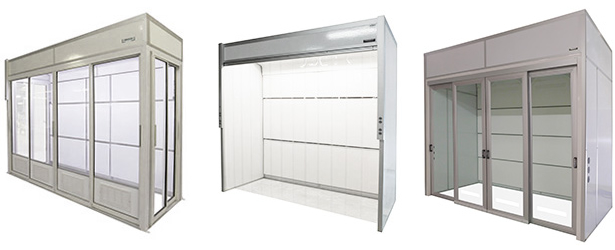

Ideal for Large-Scale and Hazardous Applications
UniMax Walk-In Fume Hoods are commonly used in:
Chemical processing laboratories
Industrial manufacturing environments
Botanical and butane extraction applications
Pharmaceutical and research facilities
Any lab requiring large equipment containment

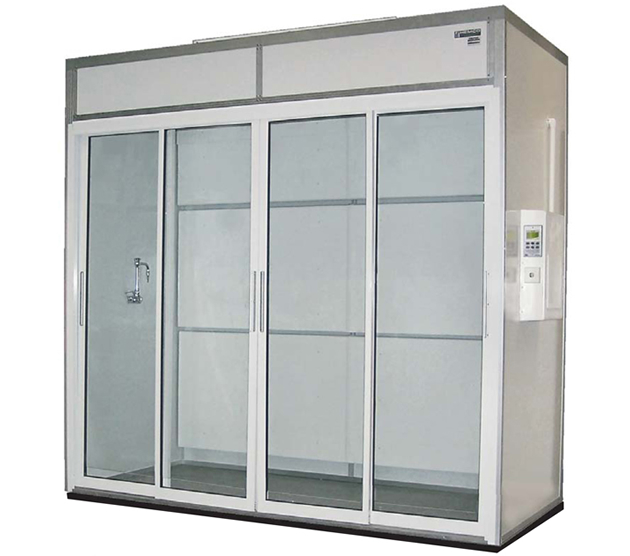

The UniMax Advantage
Chemical-Resistant Construction
2” thick modular walls with composite resin or stainless steel panels resist corrosion and harsh chemicals.Modular, Flexible Design
Knockdown construction allows easy transport, installation, and future relocation.Customizable to Your Application
Available in sizes from 6’ to 24’ wide with multiple height and depth configurations.Factory-Installed Systems
Lighting, electrical, and ventilation components are installed and configured to meet project requirements.Durable and Long-Lasting
Designed for continuous use in demanding laboratory and industrial environments.

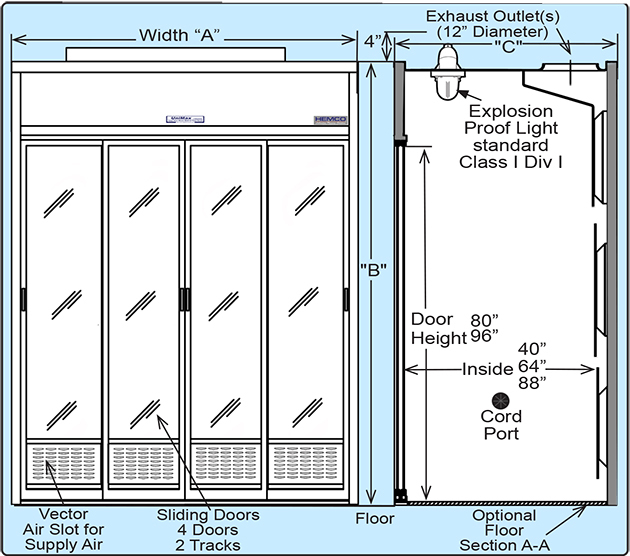

Flexible Configurations to Fit Your Needs
UniMax hoods are available with a wide range of configurable options, including:
Custom sizes and dimensions
Multiple depth and height options
Modular or fully assembled delivery
Lighting options (vapor proof, LED, explosion proof)
Integration with exhaust systems and ventilation components
Optional Floor Surfaces
Epoxy Resin (ER-WS)
High chemical resistance and durability for demanding laboratory environments. Optional raised perimeter ledge available for spill containment.Phenolic Resin (PR-WS)
Excellent resistance to chemicals, heat, and wear. Flat surface with optional perimeter containment edge.
Stainless Steel (SS-304)
Reinforced construction designed to support heavy equipment loads. Smooth, welded finish allows for easy cleaning and long-term durability.
Select the Right Access Configuration
Framed Glass Doors (Overhead Suspension)
Smooth-sliding doors with no floor track, allowing easy movement of equipment.
Framed Glass Doors (Floor Track)
Sliding doors with a floor-mounted track for controlled access.
Strip Curtains
Flexible vinyl curtains for easy entry of large equipment while maintaining containment.

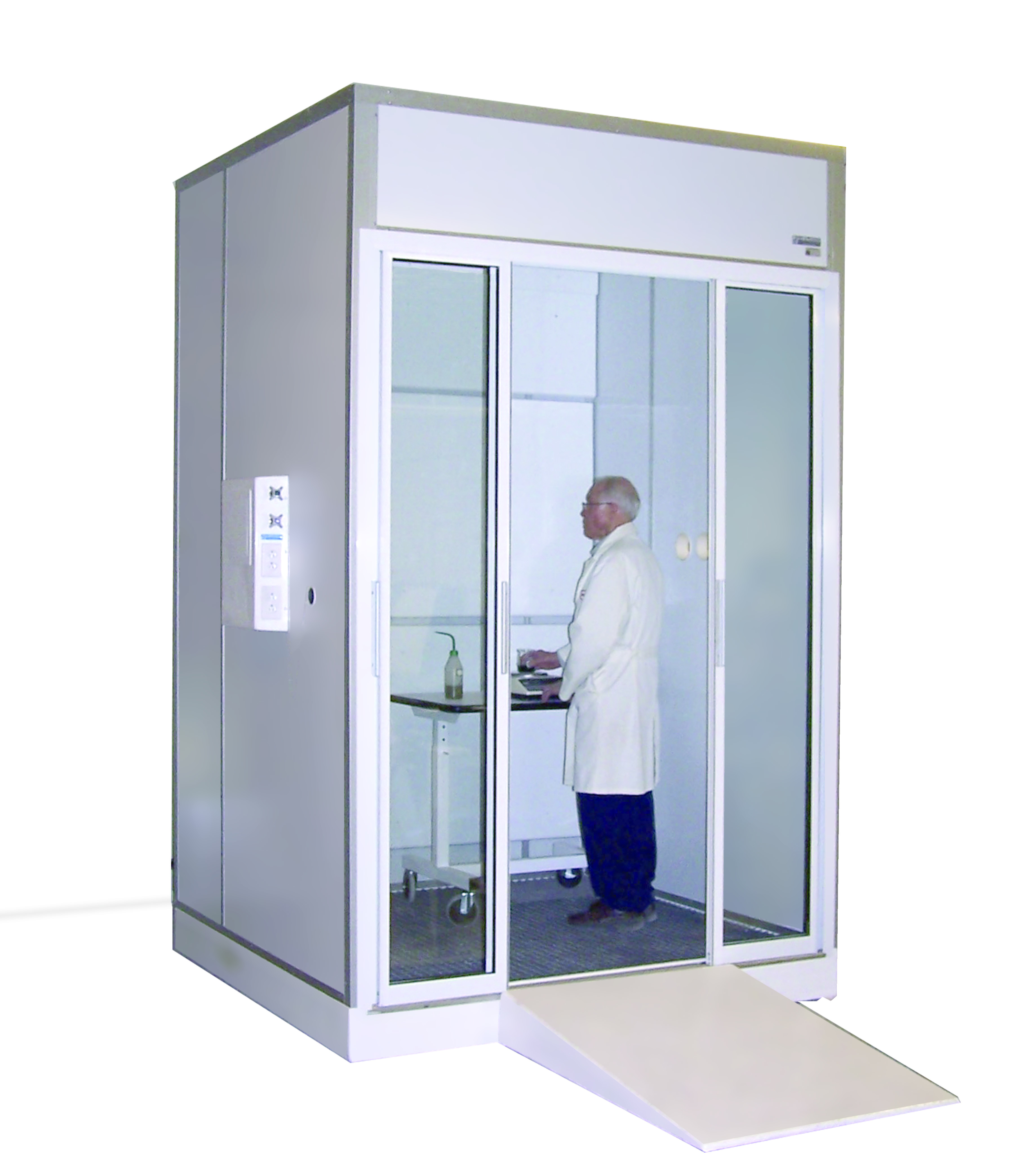

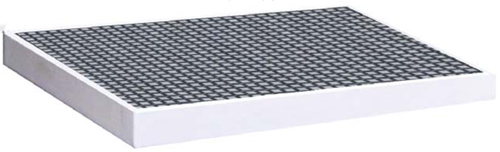

Optional Spill Containment with HazMax Basins
UniMax hoods can be configured with HazMax containment basins for applications requiring spill protection.
One-piece molded composite resin basin
Raised fiberglass grating for drainage
Easy access for cleaning and maintenance
Designed for safe containment of accidental spills
Standard Sizes and Specifications
UniMax hoods are available in widths from 6’ to 24’, with multiple height and depth configurations.
Width | Depth Options | Height Options | Exhaust Outlets |
|---|---|---|---|
6' to 24' | 48", 72", 96" outside | 8', 10', 12' | Varies by hood width |
Product Resources
UniMax Product Brochure (PDF) - Overview, configurations, and system options
UniMax Maintenance Manual (PDF) - Installation and maintenance guidelines
UniMax Specifications Planner (PDF) - Detailed specifications and configuration data
Supporting Systems & Components
HEMCO offers a full range of supporting systems designed to integrate seamlessly with UniMax fume hoods. These systems can be configured to meet your specific laboratory requirements
Electrical Services
UL and CSA approved electrical systems are factory-installed and configured to meet local codes.
Explosion-Proof Services
Explosion-proof electrical and lighting components are available for environments requiring enhanced safety and compliance.
Plumbing Services
Chemical-resistant plumbing solutions designed for seamless integration with UniMax systems and laboratory workflows.
Filtration Systems
Clean-Aire HEPA/Carbon filtration and Bag-In/Bag-Out HEPA systems provide advanced air purification and contaminant control.
Ducting & Ventilation
Custom ducting solutions support proper airflow, ventilation, and overall system performance.
Exhaust Blowers
Blowers are sized to meet specific airflow and static pressure requirements.
Fume Scrubbers & Filtration
Fume scrubbers remove water-soluble fumes and odors through high-efficiency filter media.
