Laboratory Countertops, Sinks & Plumbing
High-Performance Laboratory Worksurfaces & Plumbing Systems
HEMCO offers a complete line of laboratory countertops, sinks, and plumbing systems designed to support applications ranging from light-duty laboratory work to environments exposed to acids, solvents, and corrosive materials.
Available in multiple materials and configurations, these systems are engineered to meet performance, durability, and safety requirements across research, education, healthcare, and industrial laboratories.
HEMCO’s technical team can also assist in selecting the appropriate materials and configurations to meet your specific laboratory needs.
Laboratory Countertops

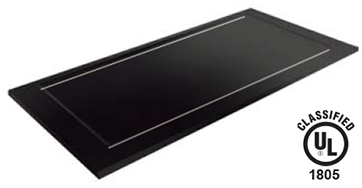

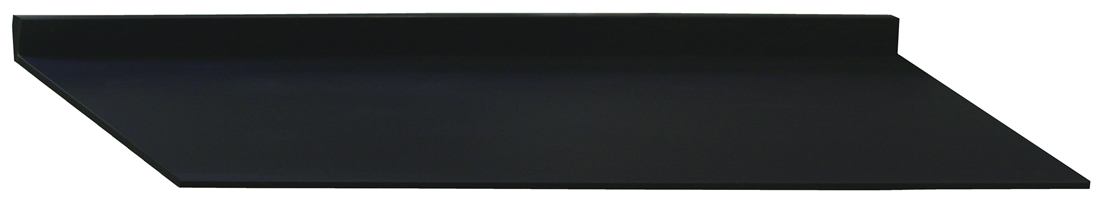

(UniFlow SE, LE hoods only) Epoxy Resin, color: black, 1-1/4” thick, 3/8” dished
Epoxy Resin Worksurfaces are recommended for general laboratory work where greater chemical resistance is required. Surface is dished 3/8" to contain spillage. Worksurface is cast of thermosetting epoxy resin, creating a molded solid 1-1/4" thick top which is extremely hard, abrasion and heat resistant. Tested to UL 1805 classification.
Size | Cat. No. | Size | Cat. No. |
|---|---|---|---|
36”W x 30”D | 20315 | 36”W x 36”D | 20325 |
48”W x 30”D | 20415 | 48”W x 36”D | 20425 |
60”W x 30”D | 20515 | 60”W x 36”D | 20525 |
72”W x 30”D | 20615 | 72”W x 36”D | 20625 |
96”W x 30”D | 20815 | 96”W x 36”D | 20825 |

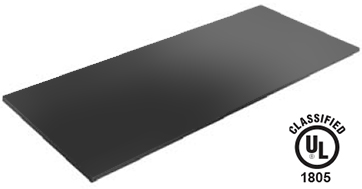

(UniFlow SE, LE hoods only) Phenolic Resin, color: black, 1-1/4" thick
Phenolic Resin Worksurface are recommended for general laboratory work where high concentrations of solvent, acids and alkalies are being worked with. Work surface combines excellent chemical resistance scratch and wear resistance. Surface is flat 1-1/4" thick.Tested to UL 1805 classification.
Size | Cat. No. | Size | Cat. No. |
|---|---|---|---|
36”W x 30”D | 20315 | 36”W x 36”D | 20325 |
48”W x 30”D | 20415 | 48”W x 36”D | 20425 |
60”W x 30”D | 20515 | 60”W x 36”D | 20525 |
72”W x 30”D | 20615 | 72”W x 36”D | 20625 |
96”W x 30”D | 20815 | 96”W x 36”D | 20825 |

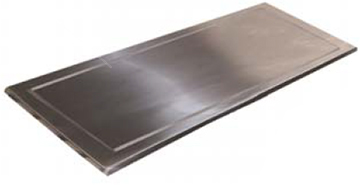

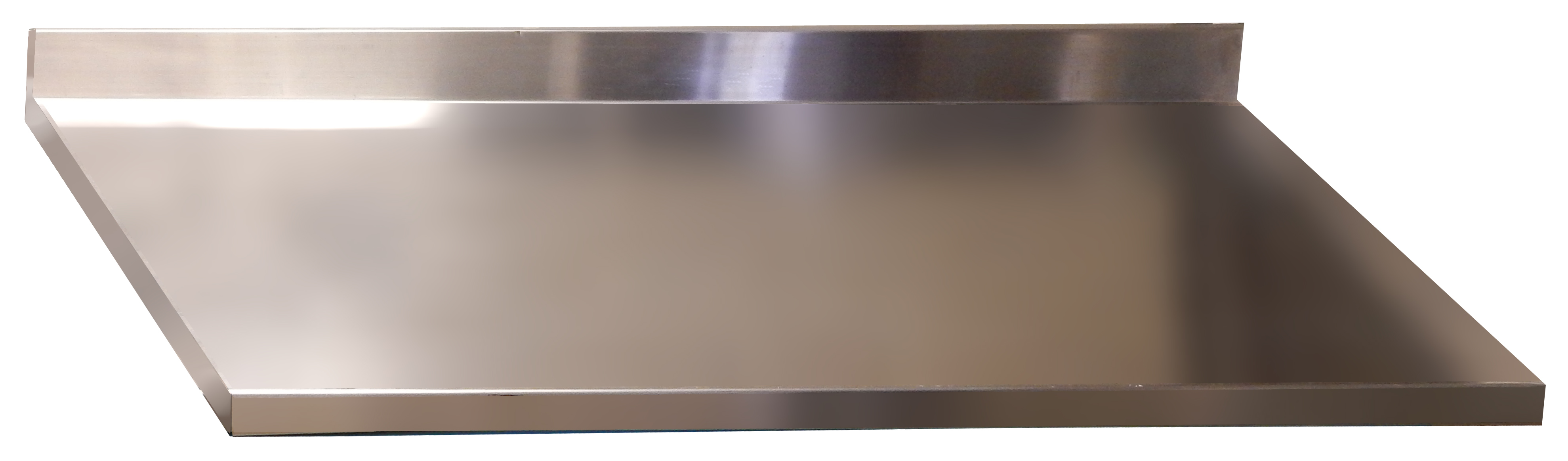

(UniFlow SE, LE hoods only) Stainless Steel, satin finish, 1-1/4” edge, 3/8” dished
Stainless Steel Fume Hood Worksurfaces are fabricated of type 304,16 gauge steel with #3 satin finish. Surface is dished 3/8” to contain spillage. All corners, ends, and joints are continuous 1-1/4” heliarc welded and ground smooth. Type 316 stainless steel is also available.
Size | Cat. No. | Size | Cat. No. |
|---|---|---|---|
36”W x 30”D | 20315 | 36”W x 36”D | 20325 |
48”W x 30”D | 20415 | 48”W x 36”D | 20425 |
60”W x 30”D | 20515 | 60”W x 36”D | 20525 |
72”W x 30”D | 20615 | 72”W x 36”D | 20625 |
96”W x 30”D | 20815 | 96”W x 36”D | 20825 |
Fume Hood Laboratory Sinks
A complete line of sinks in epoxy resin, polypropylene, and stainless steel.
Epoxy Resin Sink
Laboratory sink made of chemical and corrosion resistant epoxy resin. Drop-in sink. color: black. Specify location. Includes stopper & drain outlet.
Size | Cat. No. |
|---|---|
9” x 6” x 6” deep | 42021 |
16” x 12” x 8” deep | 42022 |
18” x 15” x 11” deep | 42026 |
24” x 16” x 8” deep | 42027 |
Polypropylene Sink
Made of chemical resistant heavy duty polypropylene. Drop-in sink. color: black. Please specify desired location. Includes drain outlet.
Size | Cat. No. |
|---|---|
12” x 8” x 8” deep | 72041 |
14” x 10” x 6” deep | 72043 |
18” x 15” x 12” deep | 72045 |
28” x 20” x 9” deep | 72048 |
Stainless Steel Sink
Made of one-piece, type 304 stainless steel & polished to a No. 4 satin finish. Drop-in sink. Underside is sound deadened to reduce drumming. Specify location. Includes drain outlet.
Size | Cat. No. |
|---|---|
12” x 12” x 7.5” deep | 42031 |
16” x 16” x 7.5” deep | 42032 |
16” x 22” x 7.5” deep | 42033 |
16” x 28” x 7.5” deep | 42034 |
Fume Hood Cupsinks
Cupsink 6” Diameter
Polypropylene cupsink with 1-1/2” IPS tailpiece and outlet strainer.
Cat. No. 40118
Oval Cupsink
Drop-in oval cupsink in polypropylene. 1-1/2” IPS tailpiece includes strainer.
3" X 6" Cat. No. 40119
3" X 9" Cat. No. 40121
Oval Wall Cupsink
6” x 3”, Cupsink is made of polypropylene with 1-1/2” IPS tailpiece and outlet strainer. Optional on FM fume hoods.
Cat. No. 40419
Round Cupsink
9” Diameter, Cupsink is made of epoxy with 1-1/2” IPS tailpiece and outlet strainer.
Cat. No. 40519
Pegboard, P-Traps & Fume Hood Neutralization Tanks
Jar P-Trap
P-trap includes adjustable tailpiece and removable jar. 1-1/2” IPS tail piece.
Cat. No. 40220
P-Trap
P-trap is made of polypropylene with 1-1/2” IPS tailpiece.
Cat. No. 40120
Phenolic Resin Pegboards
For drying and storage of lab ware. Pegboard in 1” thick and includes a stainless steel drip trough to collect run-off.
Width | Height | No. of Pegs | Cat. No. |
|---|---|---|---|
24” | 30” | 39 | 72430 |
30” | 30” | 46 | 73030 |
30” | 36” | 60 | 73036 |
Neutralization Tanks
Molded of one-piece,chemical resistant polyolefin, neutralization tanks are designed to dilute and neutralize laboratory waste and concentrated corrosives. Limestone is utilized as the medium for neutralizing the hazardous waste. Note: limestone is not included with tank.
Description | Cat. No. |
|---|---|
5 gallon tank (5.5” wide x 14” deep x 20” high with 1-1/2” IPS inlet/outlet) Note: 5 gallon tank requires (1) bag of limestone. | 40222 |
15 gallon tank (17.25” dia. x 15.5” H with 1-1/2” IPS inlet/outlet) Note: 15 gallon tank requires (3) bags of limestone. | 40322 |
Limestone is utilized as the medium for neutralizing the hazardous waste. (50 lb bag) Note: Limestone is not included with tank. | 40223 |
Fire Extinguishers
Foremost: fume hood fires must be extinguished promptly, failure to do so could result in loss of life and valuable equipment & processes. In case of a fire inside of a fume hood, 1. Lower the sash into the closed position. 2. Pull the manual front mount discharge cable to activate the fire extinguisher. 3. Shut off the fume hood blower on the fume hood, and any remote exhaust blowers that are connected. 4. Shut off any utility services that could feed a fire. Fire extinguisher activation occurs at 165° Fahrenheit. These are recommendations, contact your laboratory safety officer for guidelines.
ABC Dry Chemical Fire Extinguishers
Fire Extinguisher with automatic activation at 165° Fahrenheit. With dry chemical Monoammonium Phosphate, 10 lb.
Cat No. 53030
ABC Dry Chemical Fire Extinguishers
Fire Extinguisher with automatic activation at 165° Fahrenheit.
With Halon, up to 50 Cubic feet
Cat No. 53050
With Halon, 125 Cubic feet
Cat No. 53125
Manual Discharge Cable Kit
Cat No. 53007
Manual discharge cable kit Note: Larger hoods may require (2) or more extinguishers, based on interior cubic dimensions.
Expert Help for Your Laboratory Needs
HEMCO’s team can help you select the right countertop materials, sink configurations, and plumbing systems for your laboratory environment.
