Fume Hood Sink and Plumbing Services

HEMCO provides a complete line of fume hood sinks and plumbing services designed for chemical resistance, durability, and seamless integration into laboratory environments. Available in a variety of materials and configurations, these systems support safe and efficient operation within fume hoods.

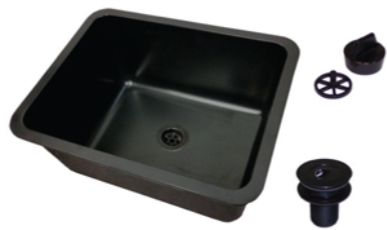

Laboratory sink made of chemical and corrosion resistant epoxy resin. Drop-in sink. color: black. Specify location. Includes stopper & drain outlet.

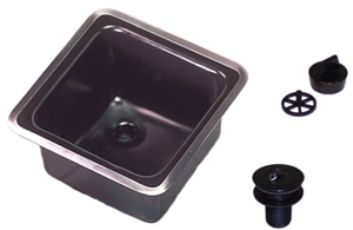

Made of chemical resistant heavy duty polypropylene. Drop-in sink. color: black. Please specify desired location. Includes drain outlet.

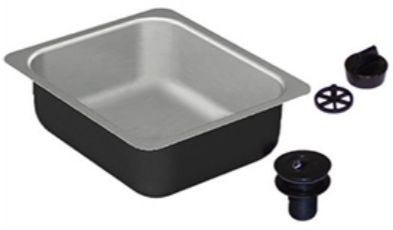

Made of one-piece, type 304 stainless steel & polished to a No. 4 satin finish. Drop-in sink. Underside is sound deadened to reduce drumming. Specify location. Includes drain outlet.

Polypropylene cupsink with 1-1/2” IPS tailpiece and outlet strainer.

Item. No. 40118

Drop-in oval cupsink in polypropylene. 1-1/2” IPS tailpiece includes strainer.

3" X 6" Item. No. 40119
3" X 9" Item. No. 40121

6” x 3”, Cupsink is made of polypropylene with 1-1/2” IPS tailpiece and outlet strainer. Optional on FM fume hoods.

Item. No. 40419

9” Diameter, Cupsink is made of epoxy with 1-1/2” IPS tailpiece and outlet strainer.

Item. No. 40519

P-trap includes adjustable tailpiece and removable jar. 1-1/2” IPS tail piece.

Item. No. 40220

P-trap is made of polypropylene with 1-1/2” IPS tailpiece.

Item. No. 40120

Molded of one-piece,chemical resistant polyolefin, neutralization tanks are designed to dilute and neutralize laboratory waste and concentrated corrosives. Limestone is utilized as the medium for neutralizing the hazardous waste. Note: limestone is not included with tank.

Fire Extinguisher with automatic activation at 165° Fahrenheit. With dry chemical Monoammonium Phosphate, 10 lb.

Item. No. 53030

Fire Extinguisher with automatic activation at 165° Fahrenheit.

With Halon, up to 50 Cubic feet
Item. No. 53050

With Halon, 125 Cubic feet
Item. No. 53125

Manual Discharge Cable Kit
Item. No. 53007

Manual discharge cable kit Note: Larger hoods may require (2) or more extinguishers, based on interior cubic dimensions.

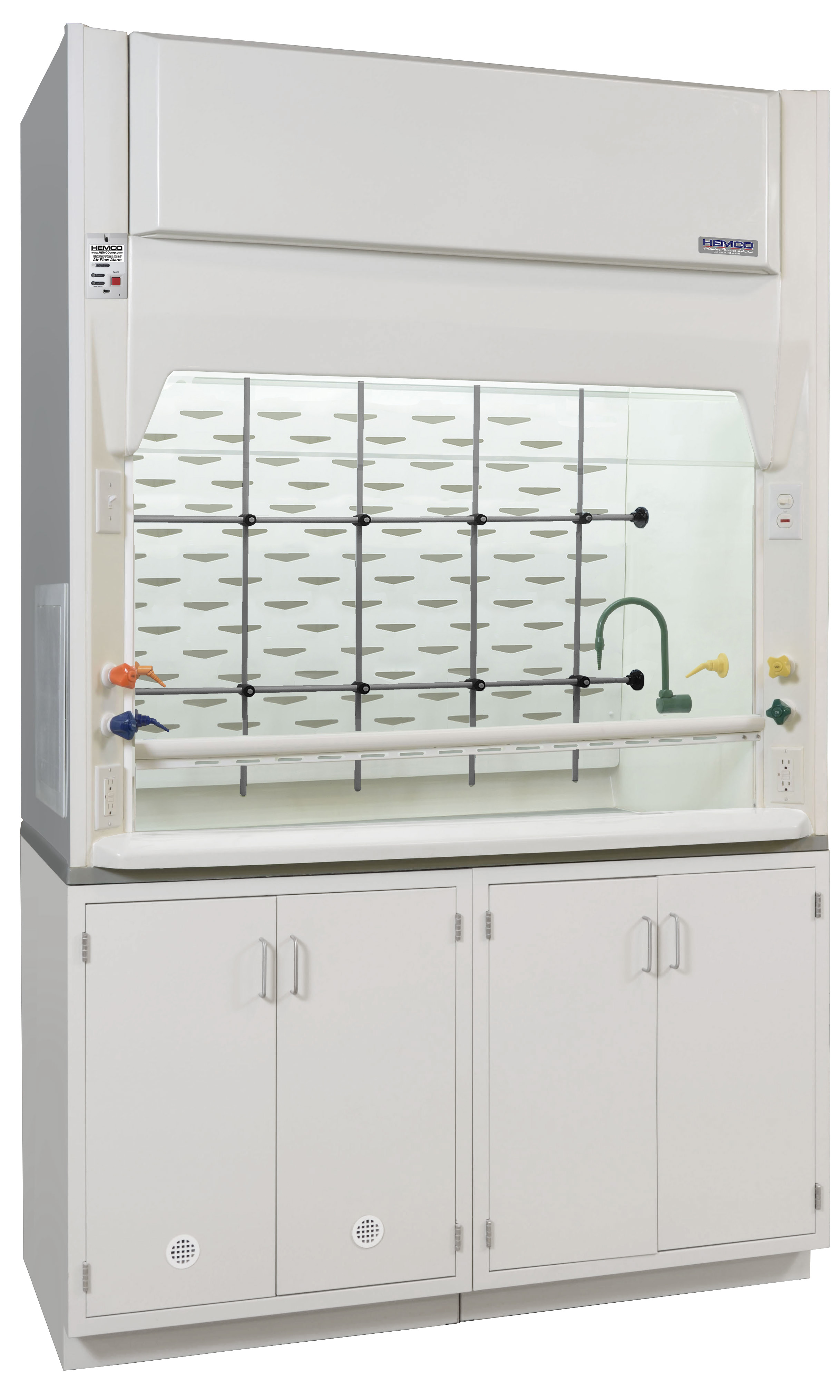

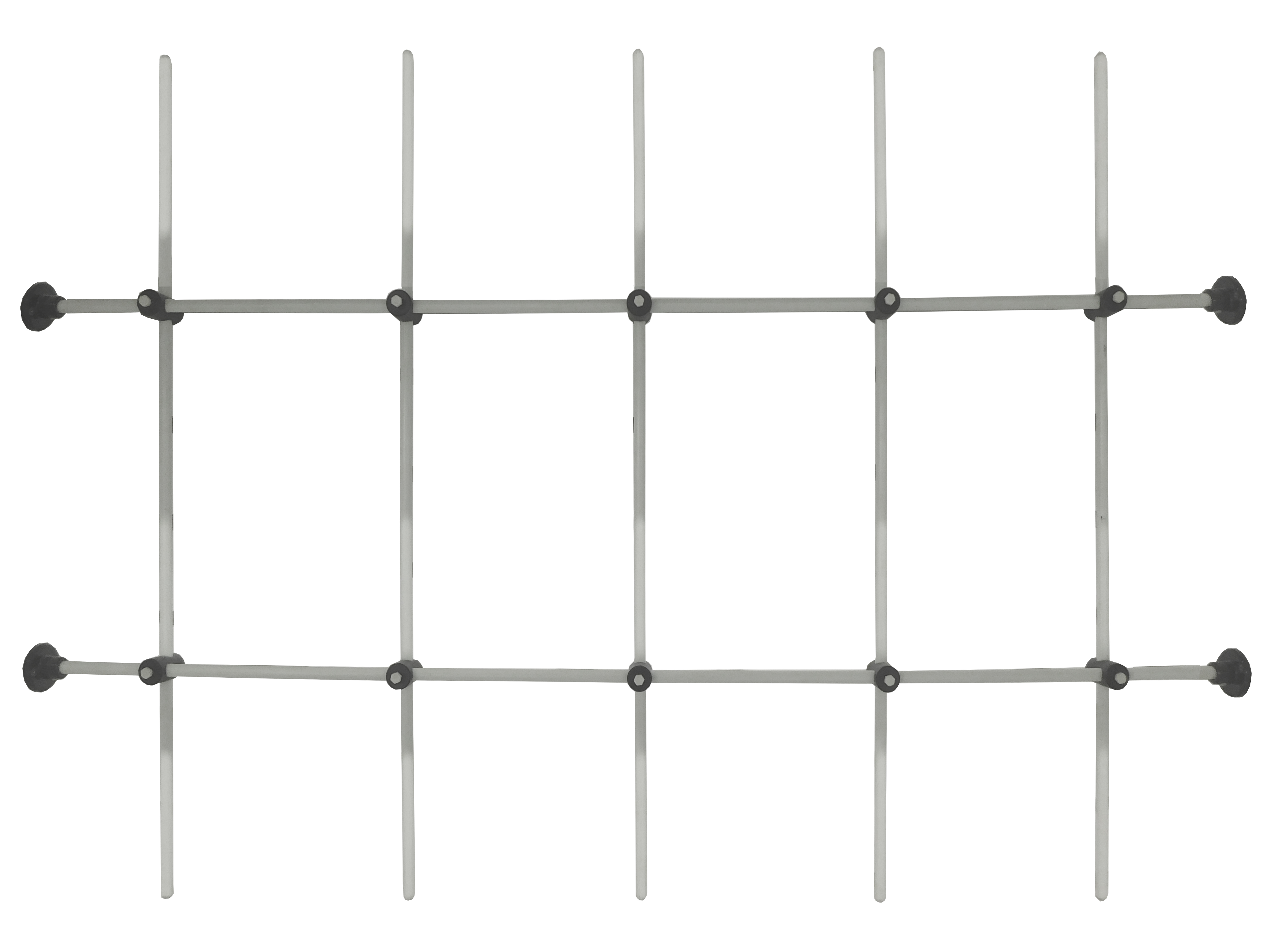

Distillation apparatus grids are designed to mount small apparatus and glassware in the interior of the fume hood, maximizing the work area. Grids are available in aluminum, stainless steel, or fiberglass to meet specific needs. Mounting options: 1. Grids can be mounted to the side walls of the fume hood, 2. When more strength is required, grids can mount to both the sidewalls and the worksurface, consult factory for details.

• All components are machined from solid aluminum bar stock.

• All aluminum lattice rod components are furnished with a satin  (brushed) finish.

• Backing plates for hood wall and mounting screws for flanges are

  not included.

• Stainless steel components offer superior strength and corrosion resistance for even the most demanding applications.

• All components are machined from Type 316 stainless steel bar stock and polished to a satin finish.

• Backing plates for hood wall and mounting screws for flanges are not included.

• All rod components are white fiberglass.

• All connectors are molded in black nylon for strength and chemical resistance.

• Backing plates for hood wall and mounting screws for flanges are not included.

• Half open style clamps, facilitate adding or removing rods from existing assembly.

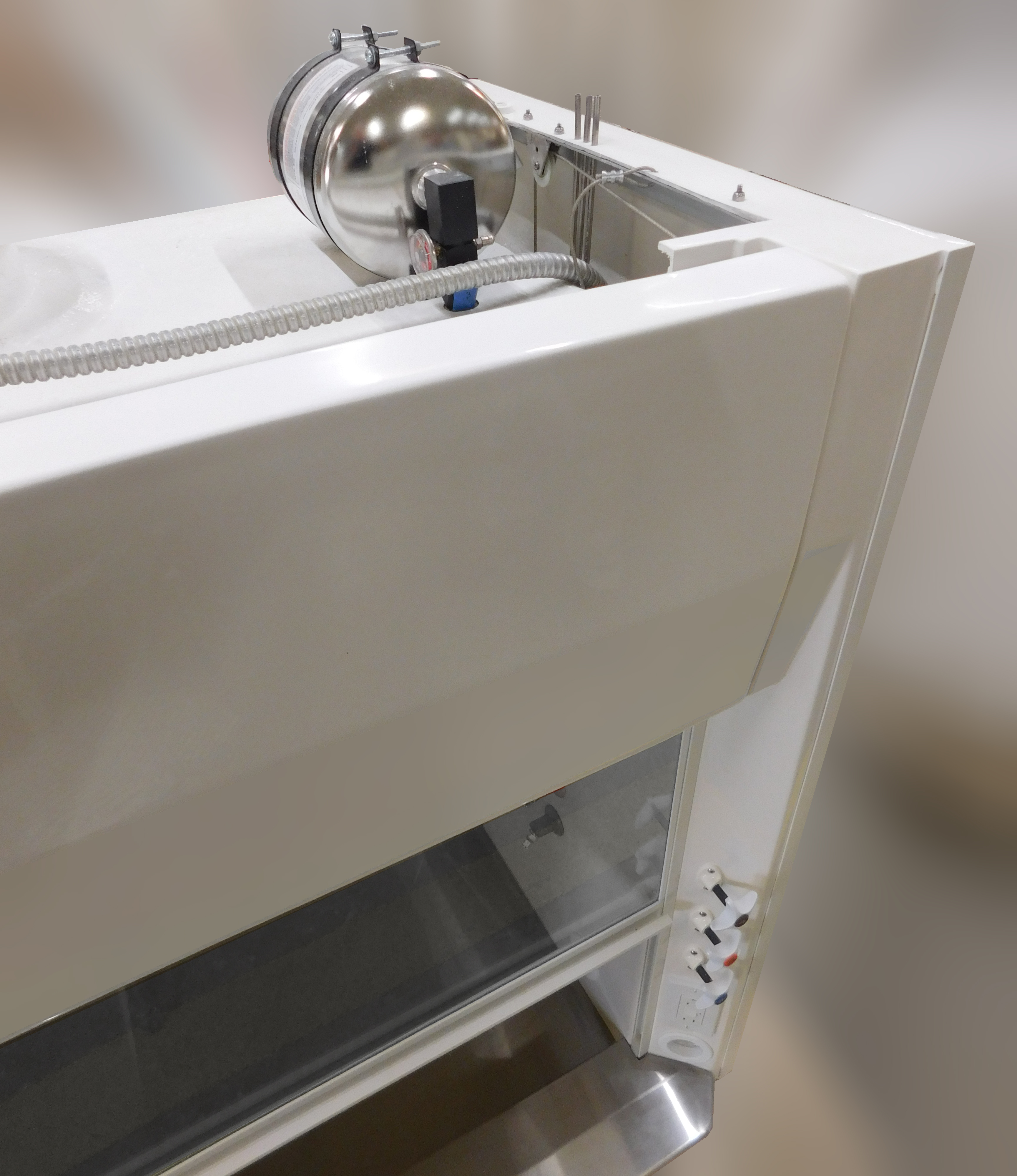

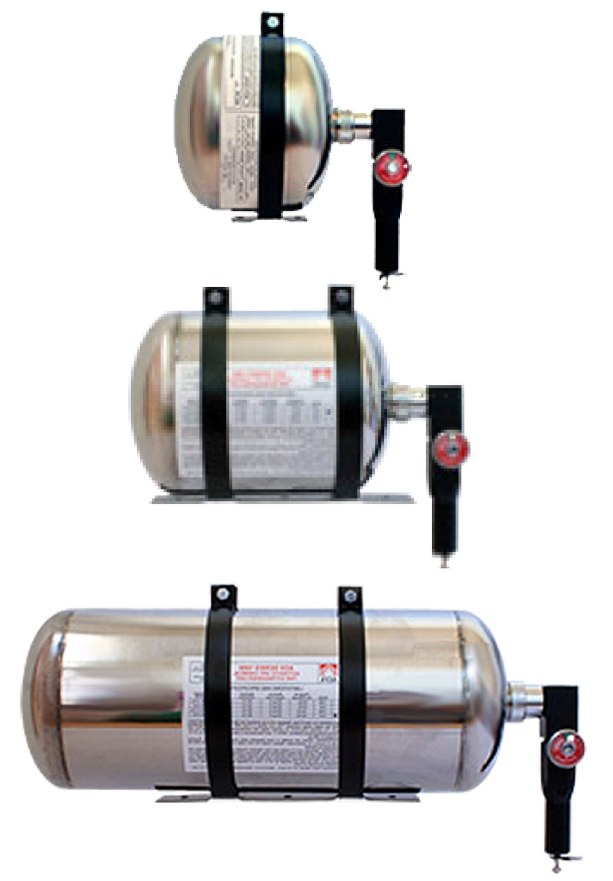

• HEMCO offers fire extinguishers for fume hoods with 7.5, 20 or 30 square foot work areas with class A,   B, or C fires.

• Fire Extinguishers feature a dry chemical system.

• A fusible link mounted inside the fume chamber senses excessive heat and automatically discharges the system.

• After activation, the fire is extinguished, keeping both users and the lab environment safe from any further threat of fire.

• These units are factory-installed when ordered with a hood, or they can be field-mounted on most pre-existing hoods.

• Does not interfere with the operation or maintenance of the fume hood

• Low toxicity of the fire agent means maximum user safety

Foremost: fume hood fires must be extinguished promptly, failure to do so could result in loss of life and valuable equipment & processes. In case of a fire inside of a fume hood, 1. Lower the sash into the closed position. 2. Pull the manual front mount discharge cable to activate the fire extinguisher. 3. Shut off the fume hood blower on the fume hood, and any remote exhaust blowers that are connected. 4. Shut off any utility services that could feed a fire. Fire extinguisher activation occurs at 165° Fahrenheit. These are recommendations, contact your laboratory safety officer for guidelines.

1. Fire Extinguisher for 7.5 square foot work area.....Item No. 54010

2. Fire Extinguisher for 20 square foot work area......Item No. 54020

3. Fire Extinguisher for 30 square foot work area......Item No. 54030

Note: Larger models require (2) extinguishers, based on interior cubic dimensions.
