Clean Aire HEPA & Carbon Filtration Systems

Filter Housing is fabricated of type-304 stainless steel & requires (1) carbon filter absorber, (1) 24” X 24” X 2” 30% pleated prefilter & (1) bag.

Bag-In bag-out filters are designed to meet air filtration requirements to handle hazardous fumes and vapors. The housing incorporates a ribbed bagging ring around the side access door over which a specially designed plastic bag is attached. Filters are then installed and changed through the bag to reduce the risk of exposure to personnel.

Minihelic Gauge
Gauge monitors the pressure differential across the HEPA filter, Gauge conveniently mounts on the fume hood or on the filter housing. Measure range is from 0 to 2.0” wg Gauge is 3” dia. with 5% accuracy Cat. No. 51300

Magnehelic Gauge
Gauge measures static pressure across the HEPA filter. Mounts on the fume hood or the filter housing. Range of measurement is from 0 to 2” wg. Gauge is 5” dia with 2% accuracy. Cat. No. 51301

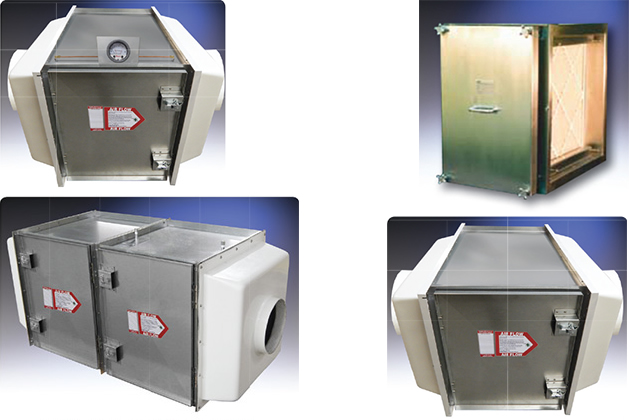

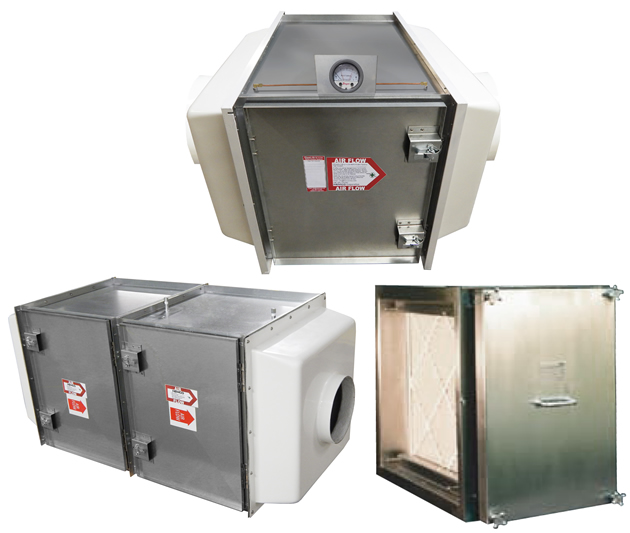

HEMCO carbon filter packs are used in laboratory exhaust and supply systems to remove chemical odors and vapors from the airstream. Filters are loaded with virgin coconut activated carbon to efficiently absorb organic solvents and acid fumes. The filter pack housing features a hinged access door with gaskets and spring latches for convenient filter changes. Inlet and outlet plenum's with duct connection collars are installed. The carbon filter pack can also be paired with a HEPA filter pack to collect particulate contaminants.

A standard “01” activated carbon filter for organics is included. HEMCO recommends the sampling kit to check if there has been a breakthrough in the carbon filter, and ordering a back-up replacement filter.

Filter housing is fabricated of type-304 stainless steel & requires (1) carbon filter absorber, (1) 24” X 24” X 2” 30% pleated prefilter & (1) bag.

Bag-In bag-out filters are designed to meet air filtration requirements to handle hazardous fumes and vapors. The housing incorporates a ribbed bagging ring around the side access door over which a specially designed plastic bag is attached. Old filter is removed then new filters are then installed and changed through the bag to reduce the risk of exposure to personnel. Note: The carbon filter is not included with the housing. We also, recommend the sampling kit below to check if there has been a break through in the carbon filter, and ordering a back-up replacement filter.

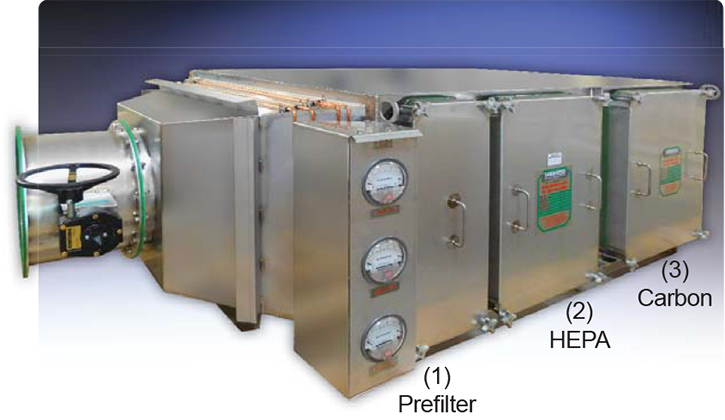

The filtration system is rated at 1800 cfm & includes a stainless steel housing with lift off and gasketed access doors for filter change-out and inlet & outlet plenum with duct connection collars sized to meet specification. Bubble tight dampers allow system to close off for filter change.

• Initial filters supplied (excludes prefilters)

• Initial change out bags supplied.

• Inlet/outlet duct connection flanges shall be a minimum of 1-1/2” wide.

• Approx. shipping weight: 1100 LBS.(without filters)

• Approx. operating weight: 1350 LBS.

• A minimum of four (4) feet of clearance in front of access door is recommended for filter change-out.

Cat. No. 58998-1 (1) HEPA and Carbon Incline

Cat. No. 58998-2 (2) HEPA and Carbon Online
