UniLine Casework Groupings

Modular Casework Systems for Efficient Lab Design

HEMCO UniLine Casework Groupings provide pre-configured laboratory furniture solutions designed to simplify planning while delivering durable, high-performance workspaces.

Each grouping is constructed from welded steel with a chemical-resistant epoxy powder-coated finish and includes phenolic resin countertops for long-term durability. These modular systems are designed to support a wide range of laboratory applications while allowing flexibility for future expansion.

Expert Help For Your Laboratory Needs

Chat with HEMCO's sales team to find products and configurations that suit your unique needs and laboratory specifications.

Talk to Our Sales Team

Laboratory Grade Casework & Cabinet Construction

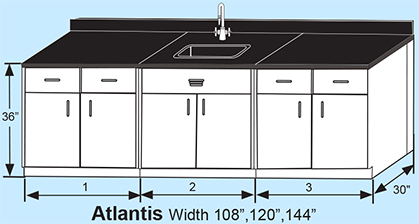

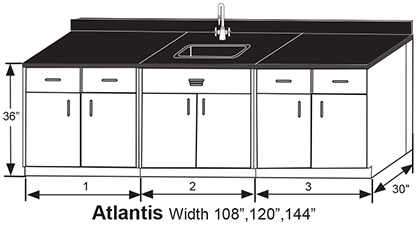

Atlantis Grouping

Atlantis Grouping provides basic lab storage & a versatile work area. Cabinet grouping includes 3 standing height cabinets with rear filler panels on both ends, phenolic resin worksurface with 4” high back splash. Includes 16” X 12” X 8” sink and H/C gooseneck faucet.

Width	1	2	3	24” Depth Cat. No.	30” Depth Cat. No.
108"	36”	36”	36”	70011	70021
120"	36”	48”	36”	70012	70022
144"	48”	48”	48”	70013	70023

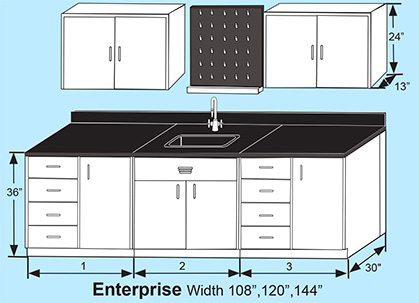

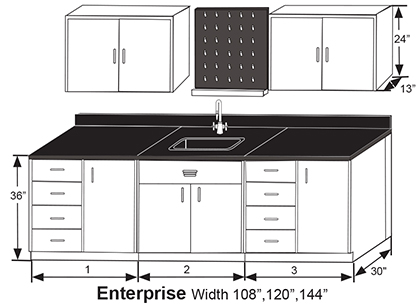

Enterprise Grouping

Enterprise Grouping provides a convenient balance of storage and work space. Cabinet grouping includes 3 standing height cabinets with rear filler panels, 2 wall cabinets, phenolic resin worksurface with 4” high back splash. Includes 16” X 12” X 8” sink, 30" X 30" pegboard and H/C gooseneck faucet.

Width	1	2	3	24” Depth Cat. No.	30” Depth Cat. No.
108"	36”	36”	36”	70211	70221
120"	36”	48”	36”	70212	70222
144"	48”	48”	48”	70213	70223

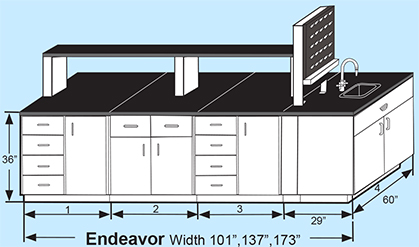

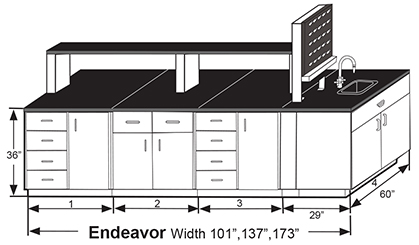

Endeavour Island Grouping

Endeavour Grouping is a flexible design that can serve as an island or peninsula layout. Cabinet grouping includes either 3 or 7 standing height cabinets with front and end filler panels, phenolic resin worksurface, and center island reagent shelf with pedestals and phenolic resin shelf. Includes 16” X 12” X 8” sink, 30" X 30" pegboard and H/C gooseneck faucet.

Width	1	2	3	4	Cat. No.
101”	36”	36”	—	60"	71311
137”	36”	36”	36”	60"	71312
173”	48”	48”	48”	60"	71313

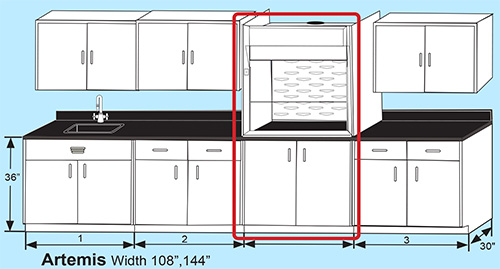

Artemis Grouping

UniLine Artemis Grouping provides ample lab storage with options. Cabinet grouping includes (3) 36” high cabinets, phenolic resin worksurface with 4” high back splash. Includes 16” X 12” X 8” sink and H/C gooseneck faucet, and three wall cabinets. Add a UniFlow SL fume hood in widths of 48”, 60”, 72”, and 96” wide.

Cat. No.	Length	1	2	Add a hood Select 48”, 60”, 72” or 96” SL	3
70901	108”	36”	36"		36"
70902	144”	48”	48”		48”

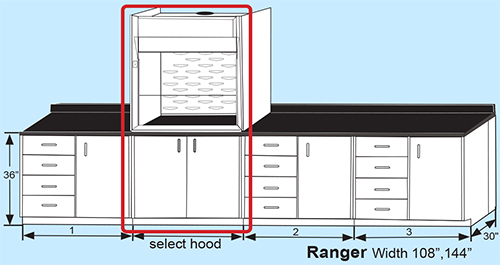

Ranger Grouping

UniLine Ranger Grouping combines convenient basic lab storage. Grouping includes (3) 36” high cabinets with rear filler panels on both ends, phenolic resin worksurface with 4” high back splash. Add a UniFlow SL fume hood in widths of 48”, 60”, 72”, and 96” wide.

Cat. No.	Length	1	2	Add a hood Select 48”, 60”, 72” or 96” SL	3
70911	108”	36”	36"		36"
70912	144”	48”	48”		48”

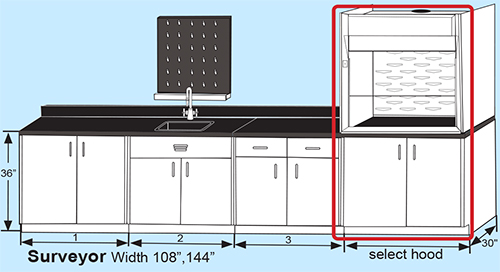

Surveyor Grouping

UniLine Surveyor Grouping accommodates greater storage requirements. Grouping includes (3) cabinets 36” high, phenolic resin worksurface with 4” high backsplash, 16” X 12” X 8” sink, H/C gooseneck faucet and pegboard. Add a UniFlow SL fume hood in widths of 48”, 60”, 72”, and 96” wide.

Cat. No.	Length	1	2	3	Add a hood Select 48”, 60”, 72” or 96” SL
70921	108”	36”	36"	36"
70922	144”	48”	48”	48”

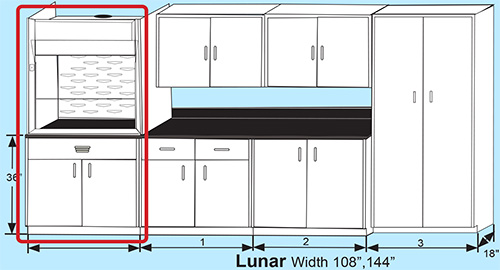

Lunar Grouping

UniLine Lunar Grouping provides lab storage. Cabinet grouping includes (3) 36” high cabinets with rear filler panels on the ends, and one floor storage cabinet, phenolic resin worksurface with 4” high back splash. Includes two wall cabinets. Add a UniFlow SL fume hood in widths of 48”, 60”, 72”, and 96” wide.

Cat. No.	Length	1	2	3	Add a hood Select 48”, 60”, 72” or 96” SL
70931	108”	36”	36"	36"
70932	144”	48”	48”	48”

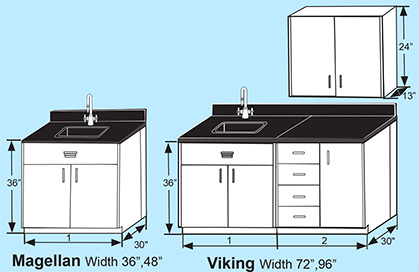

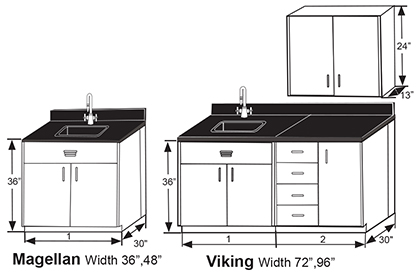

Viking / Magellan Grouping

Viking Grouping is ideal for medical examination rooms and small lab requirements. Cabinet grouping includes 1 or 2 standing height cabinets, 1 wall cabinet 36" or 48" wide, 24" high 12" deep, phenolic resin worksurface. Includes 16” X 12” X 8” sink and H/C gooseneck faucet.

Width	1	2	24” Depth Cat. No.	30” Depth Cat. No.
*Viking Cabinet Grouping*
72"	36”	36”	70413	70423
96"	48”	48”	70414	70424
*Magellan Cabinet Grouping*
Width	1	24” Depth Cat. No.		30” Depth Cat. No.
36"	36"	70611		70621
48"	48"	70612		70622

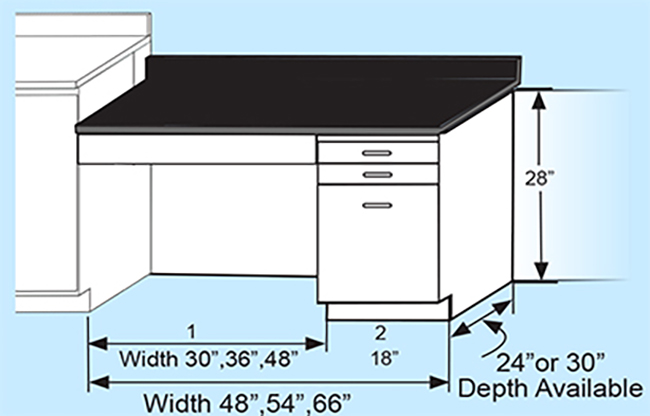

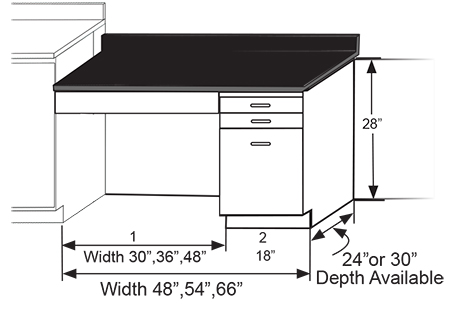

Gemini Grouping

UniLine Gemini grouping features a sitting height desk area that can be incorporated with any of the HEMCO groupings. Cabinet grouping includes 1 sitting height file drawer cabinet with rear filler panels, single drawer apron, and phenolic resin worksurface. Sitting height 28”.

Length	1	2	24” Depth Cat. No.	30” Depth Cat. No.
48”	30"	18"	70501	70521
54"	36”	18”	70502	70522
66"	48”	18”	70503	70523

Corner Casework Solutions

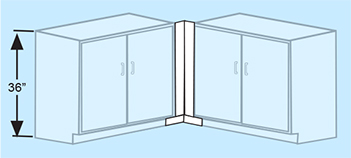

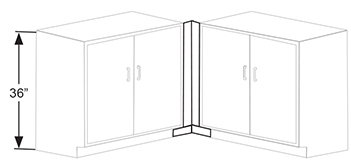

Basic Corner Scribe

2” Cat. No. 74002

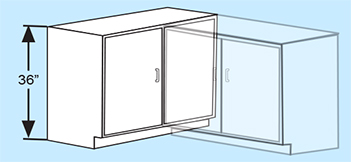

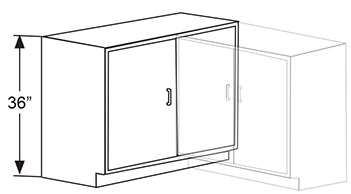

Overlap Corner Cabinet

36” Cat. No. 71981
48” Cat. No. 71983

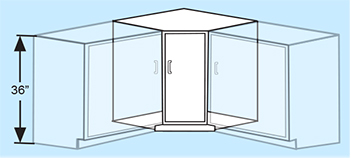

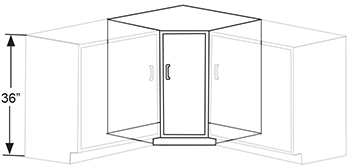

Spacious Corner Cabinet

Cat. No. 71901

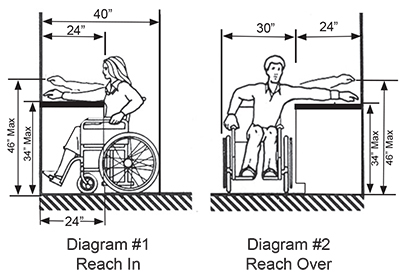

ADA Compliance Options

HEMCO is dedicated to ensuring all laboratory personnel have the access and ability to work comfortably with laboratory furniture and equipment.

When ADA requirements are necessary, the UniLine Freedom Grouping option allows customers to specify any HEMCO casework grouping in configurations that meet ADA standards for dimension, space, and accessibility.

All electrical services, plumbing accessories, and safety equipment—including emergency showers and eyewash stations—are designed to meet current ADA guidelines.

To order ADA-compliant equipment and casework, simply add “ADA” as a suffix to any HEMCO part number, and HEMCO will design, quote, and supply ADA-compliant equipment.

ADA Technical Standards & Guidelines
