Vented Table Top Fume Hoods

Compact Ventilation for Laboratory Workstations

HEMCO Vented Table Top Fume Hoods are designed to provide effective fume removal in compact laboratory environments. Featuring a molded seamless construction, these units help minimize cross drafts and create a controlled work area for small-scale applications.

Lightweight and portable, table top hoods can be easily repositioned to support changing workflows and laboratory setups.

Molded seamless construction with integrated side and rear walls
Lightweight, chemical-resistant composite materials
Recessed work surface to contain spills
Reduced cross drafts for improved airflow stability
Compact design for benchtop use
3” outlet collar for duct connection

Standard Model

Fumes are drawn through the enclosed work area and exhausted through the top outlet, reducing turbulence and maintaining a controlled environment.

These units are designed to connect to an external exhaust system for proper ventilation performance.

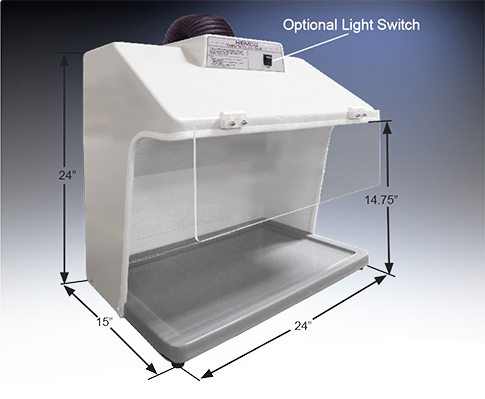

Model 24200 Vented Table Top Hood
Accessories	Cat. No.
Flexible Ducting - 4” Diameter Flex ducting with stainless steel clamps, in 12’ lengths	80047
Exhaust Blower- mounts to wall or table. Epoxy coated steel housing and wheel, 135 CFM @ .3”sp, 4” dia inlet and outlet, includes mounting bracket	51050
Vent Outlet - for through the wall or window venting. 4” dia., constructed of PVC Duct with acrylic mounting plate	80073
Vapor Proof Light- factory installed with a 6” power cord and switch. 115V U.L listed	50035
Clear Hinged Safety Shield - provides extra protection for user, size 6” X 6” X 11”	24121

Easy Access

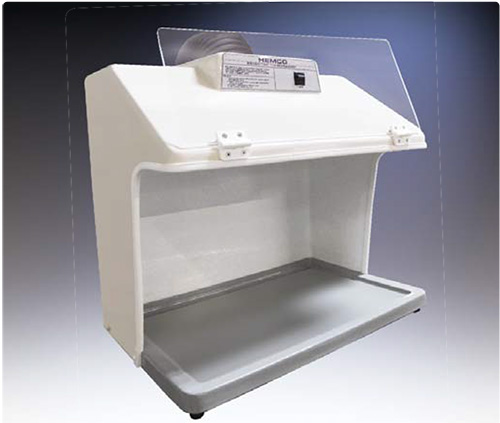

1. 24200 with Safety Shield in the Down position

2. 24200 with Safety Shield in the Up position
