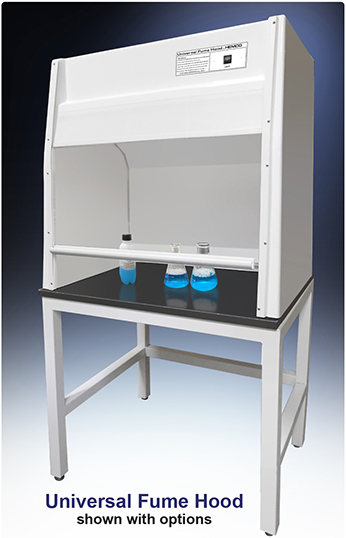

Universal Fume Hoods
HEMCO Universal Fume Hoods are designed for light to medium duty fume removal in laboratory environments. With a compact footprint and durable construction, these hoods are ideal for facilities where space is limited or where multiple hood installations are required.
Available in widths of 24”, 30”, 36”, and 48”, Universal Fume Hoods provide flexible, reliable ventilation for a wide range of applications.
Constructed of one-piece molded fiberglass, providing chemical resistance, durability, and long service life. Seamless interior with coved corners allows for easy cleaning.
Reduces sound and vibration while improving structural strength and performance.
Efficiently directs airflow through the fume chamber and out through the exhaust system for consistent performance.
3/16” thick shatterproof Plexiglas sash with “easy-touch” operation allows smooth and precise positioning.
Vapor-proof lighting provides a bright, glare-free work area.
Units are shipped fully assembled for simplified installation.
Widths: 24”, 30”, 36”, 48”
Built-in blower options available
Explosion-proof lighting options available
Designed for ducted exhaust systems
General laboratory ventilation
Light chemical handling
Educational laboratories
Multi-hood installations in limited space environments

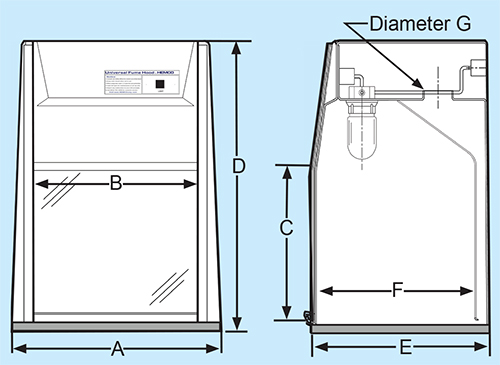

Universal Fume Hood Sizes
A | 24” | 30” | 36” | 48” |
B | 18” | 24” | 27” | 39” |
C | 20” | 20” | 20” | 20” |
D | 36” | 36” | 36” | 36” |
E | 23” | 23” | 23” | 23” |
F | 21” | 21” | 21” | 21” |
G | 6” | 6” | 6” | 8” |
Performance & Installation
Universal Fume Hoods are designed to be ducted to an external exhaust system for safe removal of fumes and vapors. Electrical components are factory installed but must be connected in accordance with local codes.
| Fume Hood Width “A” | |||
|---|---|---|---|---|
Specifications | 24” | 30” | 36” | 48” |
Universal Fume Hood with Vapor Proof light switch and 8’ 3 wire cord 115V. All electrical services are U.L and C.S.A. approved. | 92021 | 93021 | 90321 | 90421 |
Universal Fume Hood with vapor proof light and exhaust blower, same as above except equipped with built in 115V, 60Hz blower with polypro impeller wheel. | 92022 | 93022 | 90322 | 90422 |
Universal Fume Hood with explosion proof light. (U.L. approved Class 1, Group D; Class II, Group E,F,and G.) Switch and wiring not included with hood, must be furnished by customer to comply with local codes. | 92023 | 93023 | 90323 | 90423 |
Universal Fume Hood with explosion proof light and explosion proof Blower, same as above except equipped with built in explosion proof 115/230V, 60Hz blower with polypro impeller wheel (U.L. approved Class 1. | 92024 | 93024 | 90324 | 90424 |
Accessories |
|
|
|
|
Base Table | 52422 | 53022 | 53622 | 54822 |
Phenolic Work Surface | 92028 | 93028 | 90328 | 90428 |
Fume Hood Safety Panel, inserted under the sash to protect operator from hazards from within the fume chamber. | 92015 | 93015 | 90315 | 90415 |
