Canopy Hoods

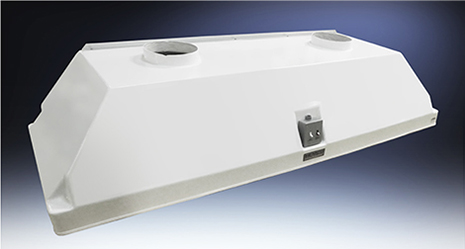

Fiberglass Canopy hoods are designed to collect and exhaust corrosive vapors, heat, steam, and odors when mounted over areas with water baths, hot plates, or portable equipment. standard color: Lab White

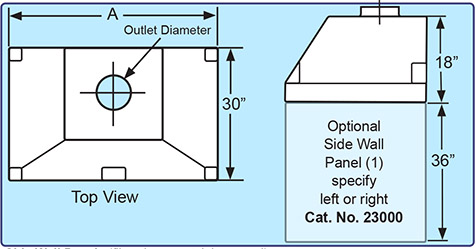

Side Wall Panels (fiberglass or stainless steel) Kit includes one wall panel and hardware Cat. No. 23000

Vapor Proof Light & Switch Cat. No. 50035

Rear Wall Panel (consult factory for details)

Blower Switch 115V/15A Cat. No. 50028

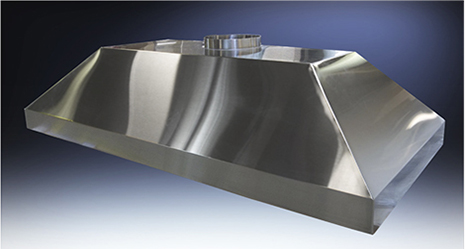

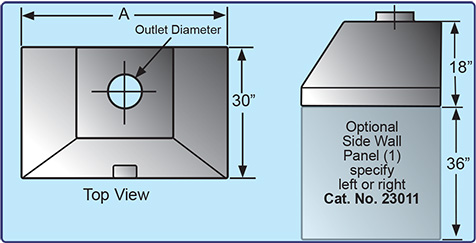

Stainless Steel Canopy hoods are constructed of type 304 stainless steel and designed to exhaust heat, steam when mounted over water baths, hot plates, or portable equipment. In sizes 36", 48", 72", 96" wide.

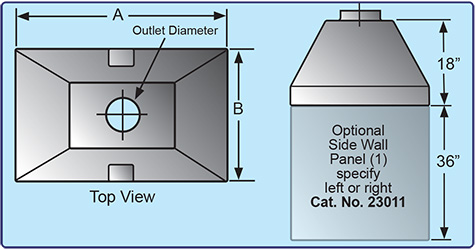

Side Wall Panels (fiberglass or stainless steel) kit includes one wall panel and hardware Cat. No. 23011

Vapor Proof Light & Switch Cat. No. 50035

Rear Wall Panel (consult factory for details)

Blower Switch 115V/15A Cat. No. 50028

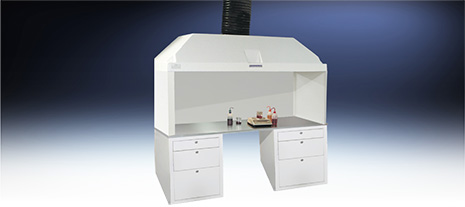

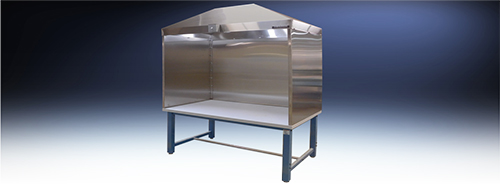

Suspended Island Canopy Hood Mounting Kit Includes all components to secure to ceiling including 6’ long threaded rods. Cat. No. 23001

Vapor Proof Light & Switch Cat. No. 50035

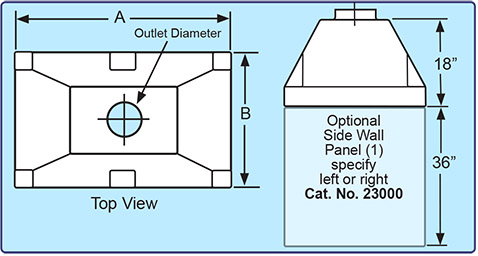

Side Wall Panels (fiberglass or stainless steel) kit includes one wall panel and hardware Cat. No. 23000

Rear Wall Panel (consult chart for Cat.No.)

Side Wall Panels (fiberglass or stainless steel) kit includes one wall panel and hardware Cat. No. 23011

Suspended Island Canopy Hood Mounting Kit Suspended Island Canopy Hood Mounting Kit Cat. No. 23001

Blower Switch 115V/15A (blower not included) Cat. No. 50027-2

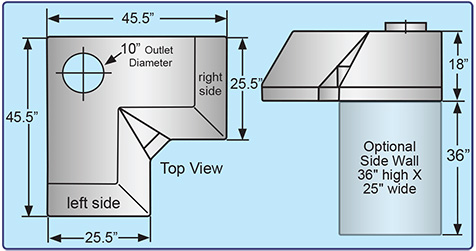

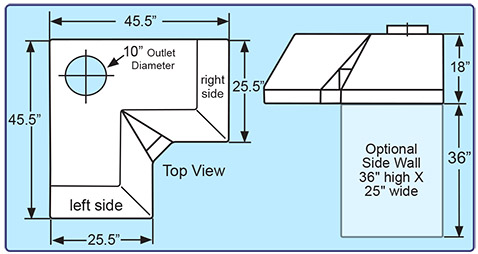

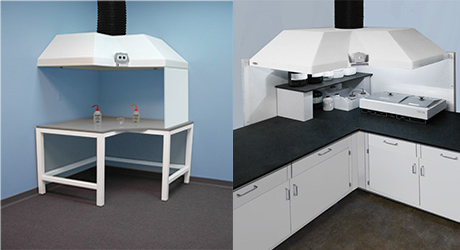

Corner Canopy Hood & Wall Mounting Kit Includes all components to secure the canopy hood to a wall. Cat. No. 13000

Corner Composite Resin Worksurface Comes dished to contain spillage. Cat. No. 13503

Corner Table Features welded steel construction Cat. No. 13502

Rear Wall Panel (2) required Qty (1) 36" high X 45" wide Cat. No. 23056

Side Wall Panels (fiberglass) 36" h X 25" w, kit includes one wall panel and hardware Cat. No. 23006

Blower Switch 115V/15A Cat. No. 50028

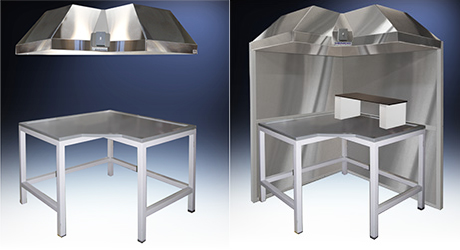

Corner Canopy Hood & Wall Mounting Kit Includes all components to secure the canopy hood to a wall. Cat. No. 13000

Corner Composite Resin Worksurface Comes dished to contain spillage. Cat. No. 13503

Corner Table Features welded steel construction Cat. No. 13502

Side Wall Panels (fiberglass) 36" h X 25" w, kit includes one wall panel and hardware Cat. No. 23004

Blower Switch 115V/15A Cat. No. 50027-2

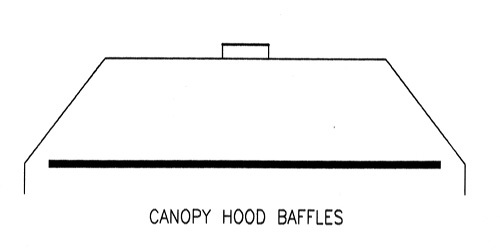

Fiberglass Canopy Baffles Increase air flow around perimeter of hood to improve capture. Can be slotted to improve velocity directly above specific areas.

Stainless Steel Canopy Baffles Increase air flow around perimeter of hood to improve capture. Can be slotted to improve velocity directly above specific areas.
