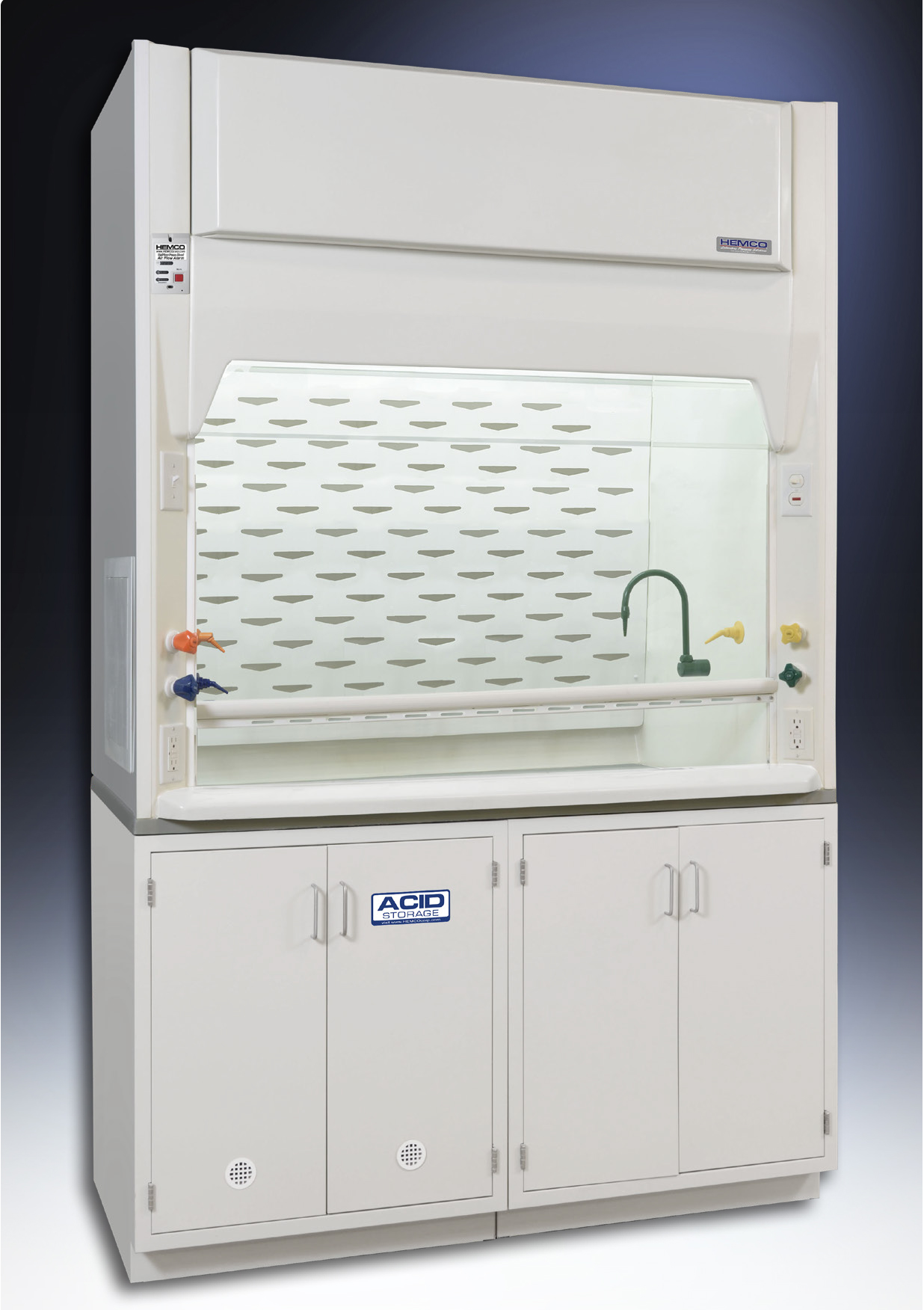

UniFlow SE AireStream Fume Hoods

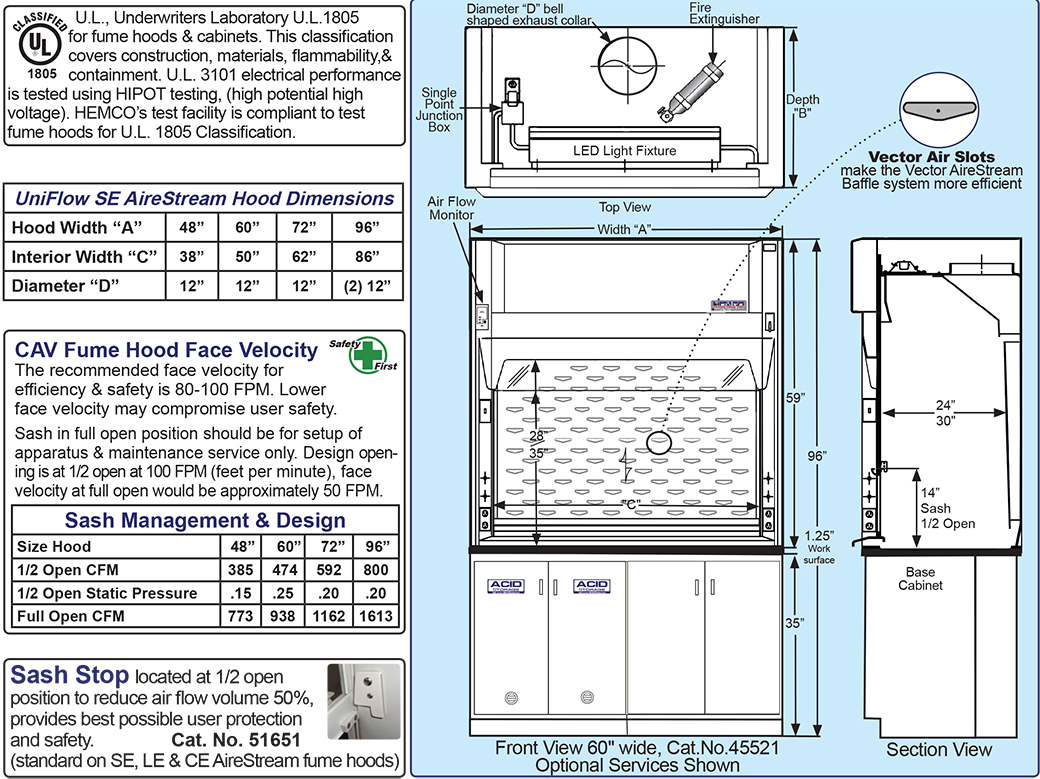

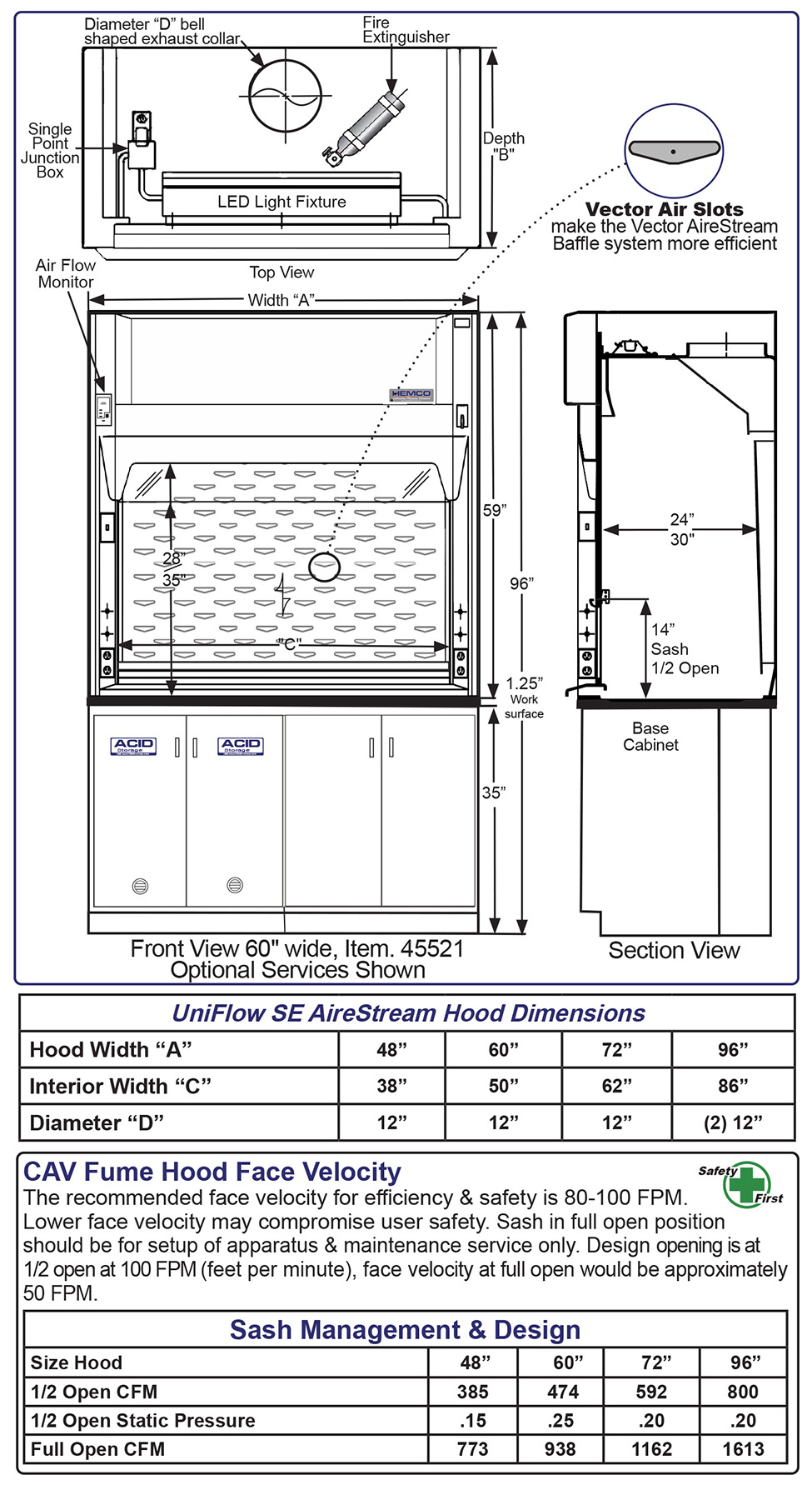

UniFlow SE AireStream Fume Hoods are designed for energy savings and maximum user protection. The aerodynamic face opening with airfoil ensures uniform airflow through the fume chamber, while the constant air volume (CAV) design and Vector Baffle System reduce turbulence and improve performance. Requires a remote exhaust blower. U.L. 1805 classified.

Non-metallic construction provides total chemical and corrosion resistance for long-term durability. The one-piece interior chamber features smooth, coved corners for easy cleaning. Unitized construction reduces weight for easier installation.

5 Year Warranty Policy (PDF)

Features engineered airflow slots that maintain consistent, low-flow, high-performance air movement through the chamber and into the exhaust collar.

Removable access panel allows convenient access to ducting, plumbing, and electrical connections from a single service point.

Factory-installed, U.L. listed lighting system with polished stainless steel reflectors. Energy-efficient operation (15W, 100–277VAC) with integrated control switch.

28" vertical sash opening allows easy access for equipment setup. Features counterbalanced 3/16" tempered safety glass with non-metallic framing and smooth operation.

35" viewing height with deep interior working space (24" or 30" reach-in depth), allowing for tall apparatus and complex lab setups.

Aerodynamic face opening improves airflow efficiency and directs air evenly into the chamber and through the baffle system.

Continuously monitors face velocity to meet ANSI and OSHA requirements. Available in analog or digital configurations.

Cat. No. 51403

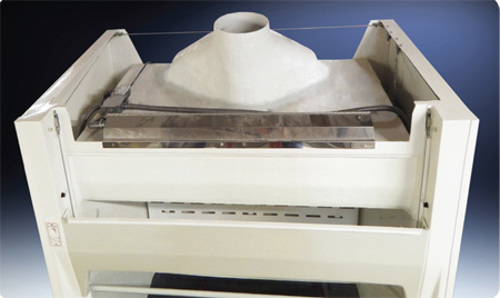

Low Resistance Exhaust Collar

Designed to reduce static pressure and improve airflow efficiency.

10" Diameter Exhaust Collar - Cat. No. 80101
12" Diameter Exhaust Collar - Cat. No. 80121

• Constant air volume (CAV) bypass design

• Reduces turbulence and improves containment

• Supports energy savings of up to 50%

• Non-metallic composite construction

• One-piece interior chamber

• Smooth, coved corners for easy cleaning

• U.L. 1805 classified

• Meets ANSI and OSHA requirements

• Designed for safe laboratory operation

• Widths: 48”, 60”, 72”, 96”

• Depths: 30” and 36”

• CAV (Constant Air Volume) models

• Optional VAV configurations

• Optional explosion-proof lighting

• International electrical configurations available
