UniFlow Radioisotope Fume Hoods
UniFlow Radioisotope Fume Hoods are specifically designed for laboratory environments requiring safe containment of radioactive and corrosive materials. The interior fume chamber is constructed of welded Type 304 stainless steel to prevent absorption and contamination, while providing a durable, easy-to-clean surface.
Available in widths of 48”, 60”, and 72”, these fume hoods are engineered to support applications requiring shielding materials and specialized filtration systems.
Constructed with a non-metallic FRP composite exterior for total chemical resistance and long-term durability. Interior fume chamber features a glass-smooth finish with VaraFlow baffle system and bell-shaped exhaust collar. Meets NFPA 45 requirements for flame spread.

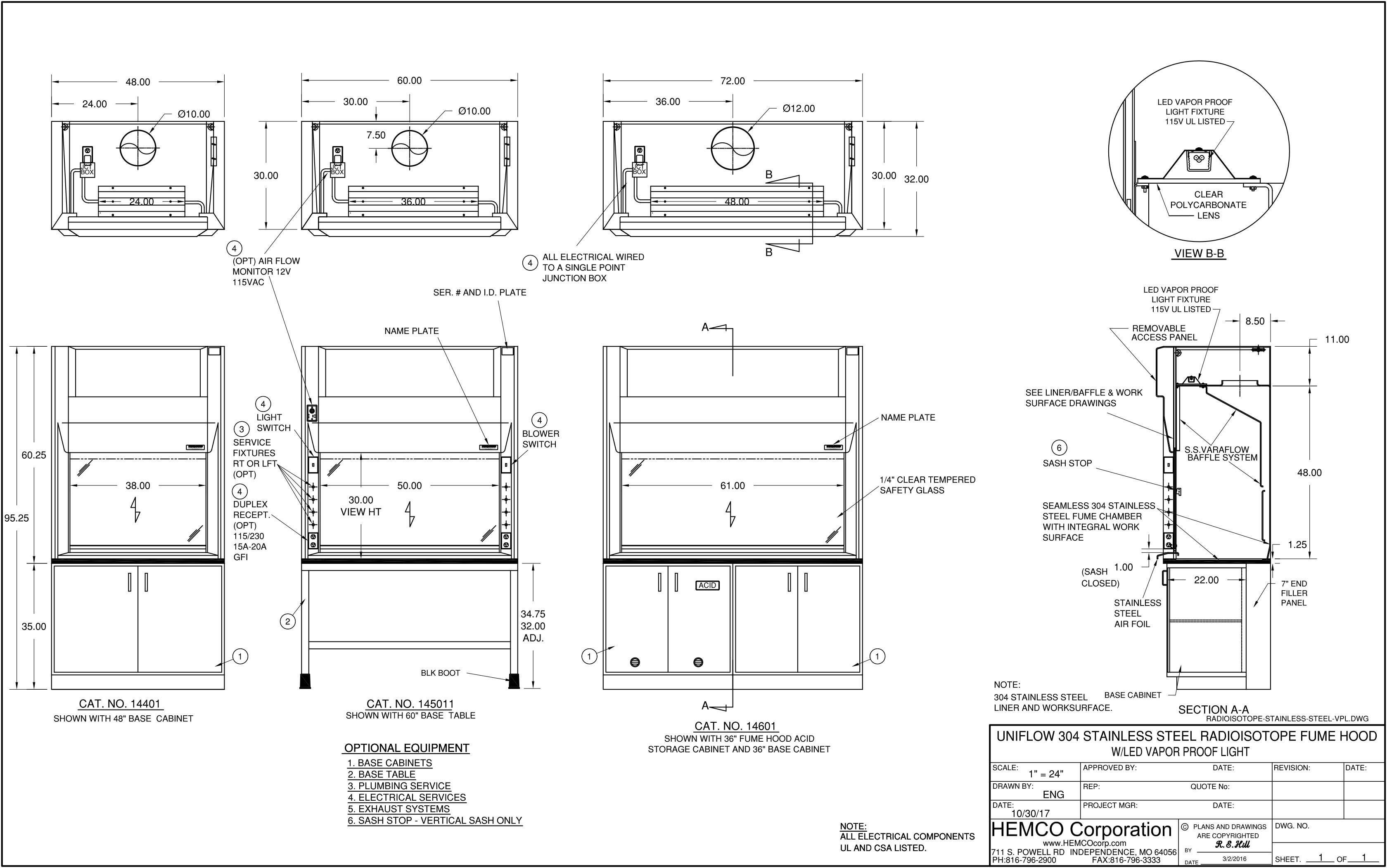

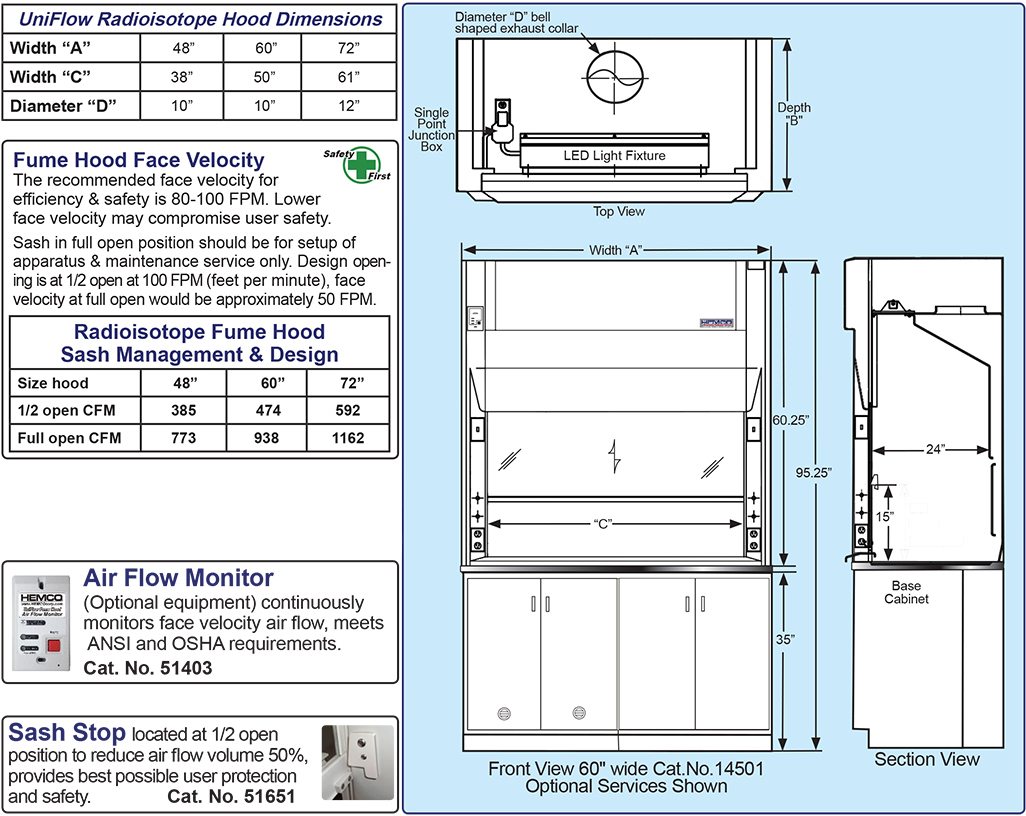

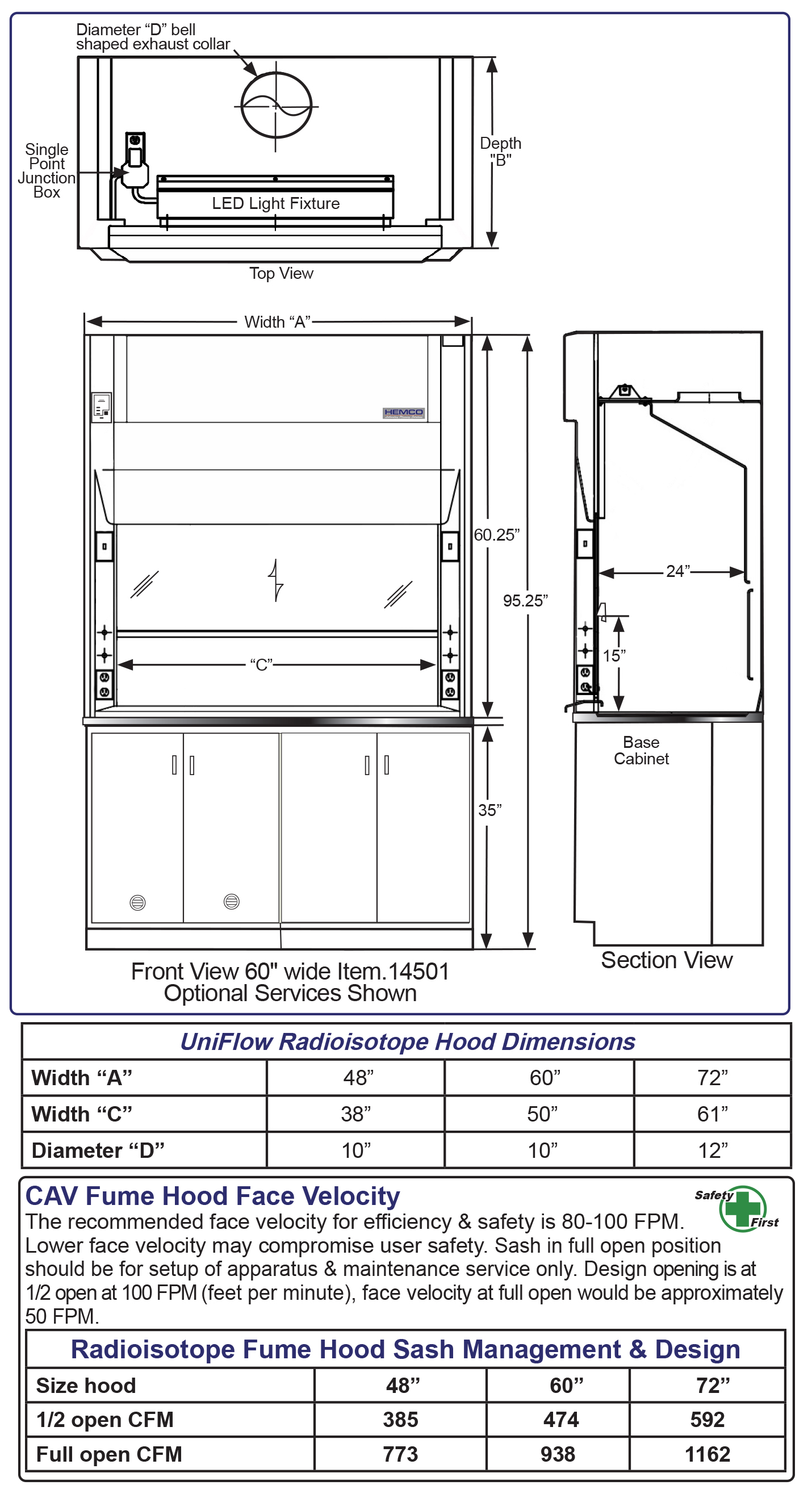

Overall unit height is 60.25”, with a 44” high interior fume chamber designed to accommodate a variety of laboratory applications.
Maintains consistent airflow through the fume chamber and directs exhaust efficiently to the outlet.
Removable access panel allows access to ducting and electrical services from a single connection point.
28” vertical sash opening with 24” interior depth and 44” working height. Stainless steel framing and aerodynamic sash lift provide smooth operation and durability.
Sash stop located at the half-open position reduces airflow by up to 50% for improved energy efficiency.
Interior chamber provides 28" viewing height with 24" or 30" reach-in depth and 44" working height for accommodating taller apparatus.

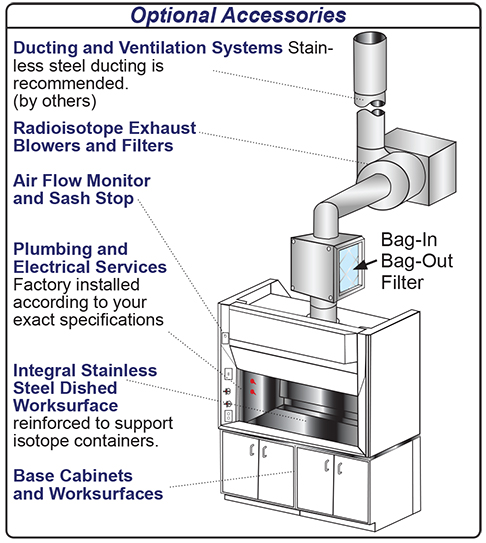

Optional Accessories
UNIFLOW RADIOISOTOPE FUME HOOD DESCRIPTIONS | Fume Hood Width "A" | ||||
|---|---|---|---|---|---|
Depth B | 48" | 60" | 72" | ||
1. UniFlow Radioisotope Fume Hood with Stainless Steel Interior Liner: | 30" | 14401 | 14501 | 14601 | |
UNIFLOW RADIOISOTOPE FUME HOOD DESCRIPTIONS | Depth B | Fume Hood Width "A" | |||
|---|---|---|---|---|---|
48" | 60" | 72" | |||
1. UniFlow Radioisotope Fume Hood with Stainless Steel Interior Liner: Seamless type 304 stainless steel fume chamber with integral worksurface all coved corners with baffle and exhaust collar. Picture frame sash opening with counterbalanced clear tempered safety glass sash with chemical resistant stainless steel framing, track, and aerodynamic sash lift. Vapor proof LED light fixture and control switch are wired to a single point junction box, 115/60Hz, AC All electrical components are U.L.listed. Optional electrical services. | 30" | 14401 | 14501 | 14601 | |
RADIOISOTOPE EXHAUST BLOWERS & FILTER SYSTEMS |
|
|
|
| |
2. Radioisotope Exhaust Blowers: V-belt drive stainless steel blower with adjustable shelves, thermal overload protection, and weather cover. | (For 48”hoods) 1/2 HP Blower - 800 CFM @ 1” SP |
| 51715-1 |
|
|
(For 60”hoods) 1/2 HP Blower - 938 CFM @ 1” SP |
|
| 51721-1 |
| |
(For 72”hoods) 1/2 HP Blower -1175 CFM @ 1” SP |
|
|
| 51724-1 | |

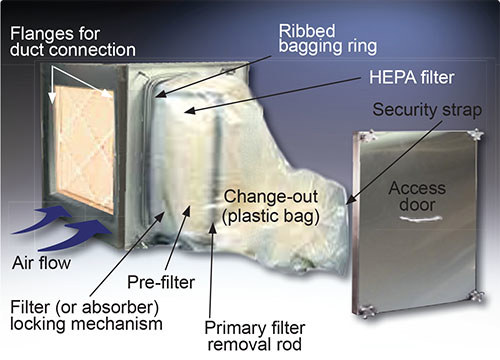

3. HEPA Filter Bag-In/Bag-Out Filter: is contained within a type 304 stainless steel housing with bag-in/bag-out attachment and prefilter. HEPA is 99.99% efficient and the prefilter is 30% efficient. Filter is rated at 1000 CFM. One filter required for 48” and 60”hoods; 2 filters required for 72” hoods. |
| 51189 | 51189 | 51189 | |
4. Carbon Filter Bag-In/Bag-Out Filter: is contained within a type 304 stainless steel housing with bag in, bag out attachment and prefilter. Advise factory of specific contaminant and volume so proper carbon can be supplied. Filter rated at 1000 CFM. One filter required for 48”and 60”hoods; 2 filters required for 72” hoods. |
| 51198 | 51198 | 51198 | |
