UniFlow Polypro Trace Metals Fume Hoods
UniFlow Polypro Trace Metals Fume Hoods are specifically designed for laboratory environments where metal contamination cannot be present. These fume hoods feature a completely non-metallic construction, preventing contamination from metallic components and ensuring compatibility with sensitive analytical and trace metal applications.
Available in widths from 48” to 96” and depths of 30” or 36”, these systems provide reliable containment, chemical resistance, and long-term durability.
Constructed with a welded one-piece polypropylene fume chamber and integral worksurface, creating a durable dual-wall structure with superior chemical resistance. Meets NFPA 45 requirements for flame spread.
Overall unit height is 60.25”, with a 44” high interior fume chamber designed to accommodate a variety of laboratory applications.
Constructed of polypropylene, the baffle system maintains uniform airflow through the chamber and directs air efficiently to the exhaust collar.
Removable access panel provides access to ducting and electrical services through a single-point PVC electrical box.
Max opening is 50%, (4) panels on (2) tracks, conveniently lift out for equipment set-up or cleaning. For 50% reduction of air supply.
or Combination Horizontal /Vertical Sash Offers the advantages of both sash types. Horizontal sash offer energy savings while vertical option allows full access to the fume chamber.
Sash stop located at the half-open position reduces airflow by up to 50% for improved energy efficiency.
28” viewing height with 24” or 30” interior depth and 44” working height allows for tall apparatus and laboratory procedures.
Sash Options
Horizontal Sliding Sashes
Sash stops available with a maximum opening of 50%. Multi-panel design allows panels to be removed for equipment setup and cleaning.
Combination Vertical & Horizontal Sash
Combines energy efficiency of horizontal sashes with full access capability of vertical movement, allowing full access to the fume chamber while maintaining energy savings.
Uniflow Polypro Trace Metals Descriptions | Hood Depth B | Fume Hood Width "A" | |||||
|---|---|---|---|---|---|---|---|
48" | 60" | 72" | 96" | ||||
1. Uniflow Polypro Trace Metal Laboratory Fume Hoods:Welded one-piece polypro fume chamber with integral worksurface, baffle and exhaust collar. | 30" | 25041 | 25051 | 25061 | 25081 | ||
36" | 25141 | 25151 | 25161 | 25181 | |||
Uniflow Polypro Trace Metals Descriptions | Hood Depth B | Fume Hood Width "A" | |||||
|---|---|---|---|---|---|---|---|
48" | 60" | 72" | 96" | ||||
1. Uniflow Polypro Trace Metal Laboratory Fume Hoods:Welded one-piece polypro fume chamber with integral worksurface, baffle and exhaust collar. Picture frame sash opening with horizontal sliding with chemical resistant PVC framing and track and aerodynamic sash lift. Vapor-proof light fixture and switch pre-wired to single point PVC junction box, 115/60Hz AC, All electrical components U.L. listed. Optional electrical services and LED lighting. | 30" | 25041 | 25051 | 25061 | 25081 | ||
36" | 25141 | 25151 | 25161 | 25181 | |||

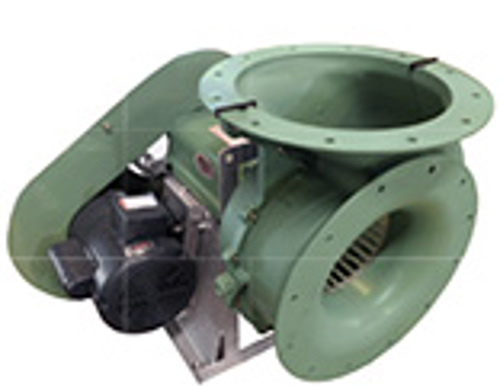

2. Polypro Trace Metals Exhaust Blower: High efficiency impellers produce low power consumption, reduced operating costs and quiet operation. 20 forward curved blades in fire retardant polypropylene. Non-static & oil resistant V-belt, cast iron pulleys, adjustable pulleys available, adjustment for tensioning & belt replacement. Chemical resistant for hostile or hazardous environments. 115V single phase or three phase. | (For 48” hoods) 1/2 HP Blower 400 CFM @ 1” SP |
| 51495 |
|
|
| |
(For 60” hoods) 1/2 HP Blower 500 CFM @ 1” SP |
|
| 51496 |
|
| ||
(For 72” hoods) 3/4 HP Blower 600 CFM @ 1” SP |
|
|
| 51497 |
| ||
