UniFlow HDPE Acid Digestion Fume Hoods
UniFlow HDPE Acid Digestion Fume Hoods are designed for laboratory environments requiring superior resistance to highly corrosive chemicals. Featuring a seamless one-piece fume chamber constructed of high-density polyethylene (HDPE), these hoods provide long-lasting durability and safe containment.
Available in widths of 48”, 60”, and 72”, HDPE digestion hoods include an integral work surface, drainage system, and dedicated wash-down system for efficient cleaning and maintenance.
Constructed with an HDPE unitized dual-wall superstructure for superior chemical resistance, strength, and durability. The vent outlet is integral to the structure for improved performance and longevity.
The fume chamber and baffle system are constructed from a seamless HDPE liner with 24” or 30” interior depth. The one-piece design resists chemical reactions and prevents buildup in joints or seams.
The integral HDPE work surface is welded directly into the superstructure and features a dished design with rear drain trough to contain spills and support wash-down functionality.
Equipped with spray nozzles, piping, control valve, and rear drain trough for efficient rinsing and cleaning after use.
Removable access panel allows convenient access to ducting and electrical connections from a single service point.
Factory-installed vapor-proof LED lighting with polished stainless steel reflectors. Energy-efficient and U.L. listed with a 5-year warranty.
28” vertical sash opening provides access for apparatus setup. Features tempered safety glass, counterbalanced operation, and chemical-resistant framing.
Continuously monitors face velocity airflow to meet ANSI and OSHA requirements.
Sash stop limits opening to 50% to improve safety and reduce airflow requirements for energy savings.

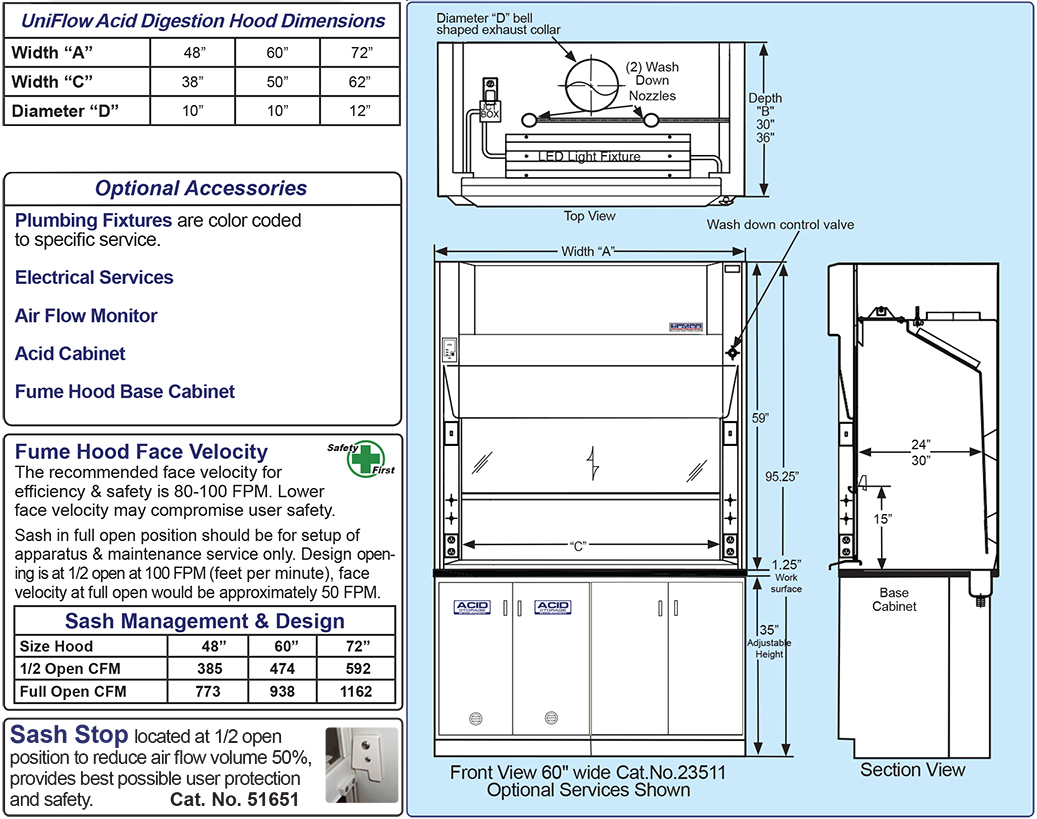

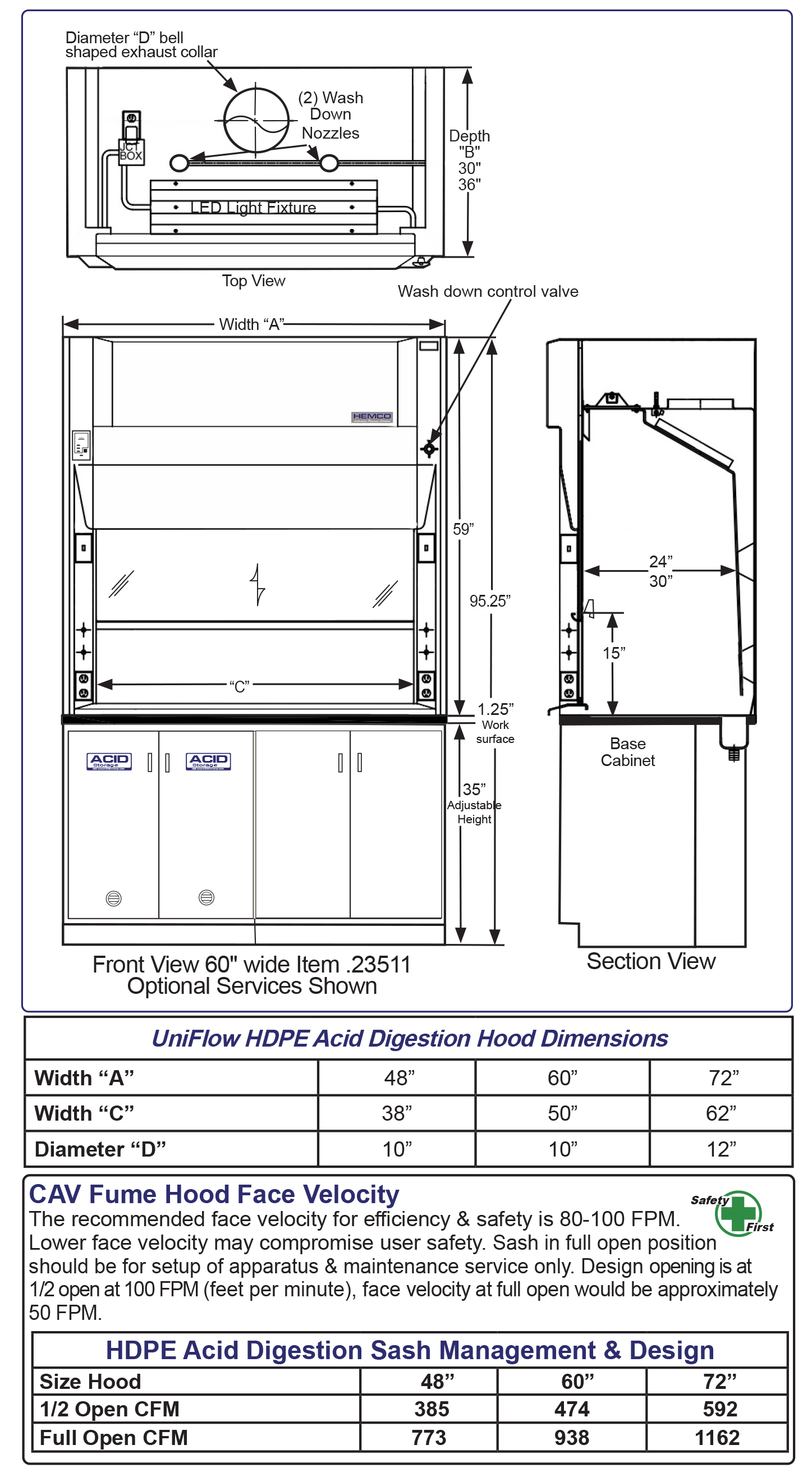

Widths: 48”, 60”, 72”
Depths: 24” or 30” interior configurations
Models with integral drainage trough and wash-down system
Models without trough and wash-down system
Optional exhaust blower configurations
Sash Management & Energy Efficiency
HEMCO’s Sash Management 1-2-3 system is designed to improve safety while significantly reducing energy consumption and operating costs.
Operating the sash at 50% open maintains recommended face velocity (80–100 FPM)
Reduces airflow requirements and lowers blower and ductwork costs
Helps achieve up to 50% energy savings
Encourages proper safety practices during operation
When not in use, the sash should remain closed to maintain safety and efficiency.
UNIFLOW HDPE ACID DIGESTION DESCRIPTIONS | Hood Depth B | Fume Hood Width "A" | |||
|---|---|---|---|---|---|
48" | 60" | 72" | |||
1. Uniflow HDPE Acid Digestion Laboratory Fume Hoods: Seamless HDPE fume chamber with integral worksurface and drainage trough, all coved corners with baffle and exhaust collar. Hood has built-in wash down system with spray nozzles and piping to front mounted control valve. Picture frame sash opening with counterbalanced clear polycarbonate sash with chemical resistant PVC framing and track and aerodynamic sash lift. Vapor proof LED light fixture and control switch are wired to a single point junction box, 115/60Hz, AC All electrical components are U.L. listed. | 30" | 23411 | 23511 | 23611 | |
36" | 23421 | 23521 | 23621 | ||
2. Uniflow HDPE Acid Digestion Laboratory Fume Hoods: Same as #1 above, except without trough and wash down. | 30" | 23431 | 23531 | 23631 | |
36" | 23441 | 23541 | 23641 | ||
3. Polypro Exhaust Blower: Belt driven, include TEFC motors and feature a spray wash nozzle and drain in the blower housing. The specifications to the right are based on 100 FPM face velocity. | (For 48” hoods) 1/2 HP Blower - 800 CFM @ 1” SP |
| 51495 |
|
|
(For 60” hoods) 1/2 HP Blower - 1000 CFM @ 1” SP |
|
| 51496 |
| |
(For 72” hoods) 3/4 HP Blower - 1200 CFM @ 1” SP |
|
|
| 51497 | |
