UniFlow Floor Mount Fume Hoods
UniFlow SE and LE Floor Mount Fume Hoods are designed for synthesis, distillation, and other laboratory applications requiring tall apparatus or roll-in equipment.
Available in widths from 48” to 144” and depths of 30”, 36”, and 48”, these modular systems provide flexibility, durability, and safe containment for demanding laboratory environments.
UniFlow floor mounted fume hoods are ideally suited for synthesis, distillation, and rack-type operations where tall apparatus is used or equipment is rolled into the work area. Modular construction allows units to be shipped disassembled for on-site assembly.
Non-metallic construction provides total chemical and corrosion resistance for superior durability and long life. The interior fume chamber features a smooth, one-piece design with coved corners for easy cleaning.
Engineered airflow system with Vector airflow slots maintains consistent air movement through the chamber and into the exhaust collar for improved containment and efficiency.
Factory-installed vapor-proof LED lighting with polished stainless steel reflectors. Energy-efficient and U.L. listed.
Sash management system helps reduce exhaust volume and improve overall energy efficiency.
When the sash is in the lowered position, airflow is directed to safely contain fumes away from the user.
62” vertical sash height allows full access for loading, unloading, and working with large or tall equipment.
Double vertical sash design provides large viewing access depending on configuration.
Aerodynamic face opening improves airflow efficiency and directs air evenly into the chamber.
Service fixtures are color-coded for easy identification and integration.
Electrical components can be mounted on either side for flexible installation.
Continuously monitors face velocity airflow to meet ANSI and OSHA requirements.
Higher viewing height (up to 70”)
Meets U.L. 1805 and NFPA-45 standards
Ideal for larger, more demanding laboratory applications
Sash Options
Vertical Sash Systems
Full-height sash allows easy loading and access for large equipment.
Horizontal Sliding Sashes
Maximum opening is 50% Panels can be removed for cleaning and equipment setup.

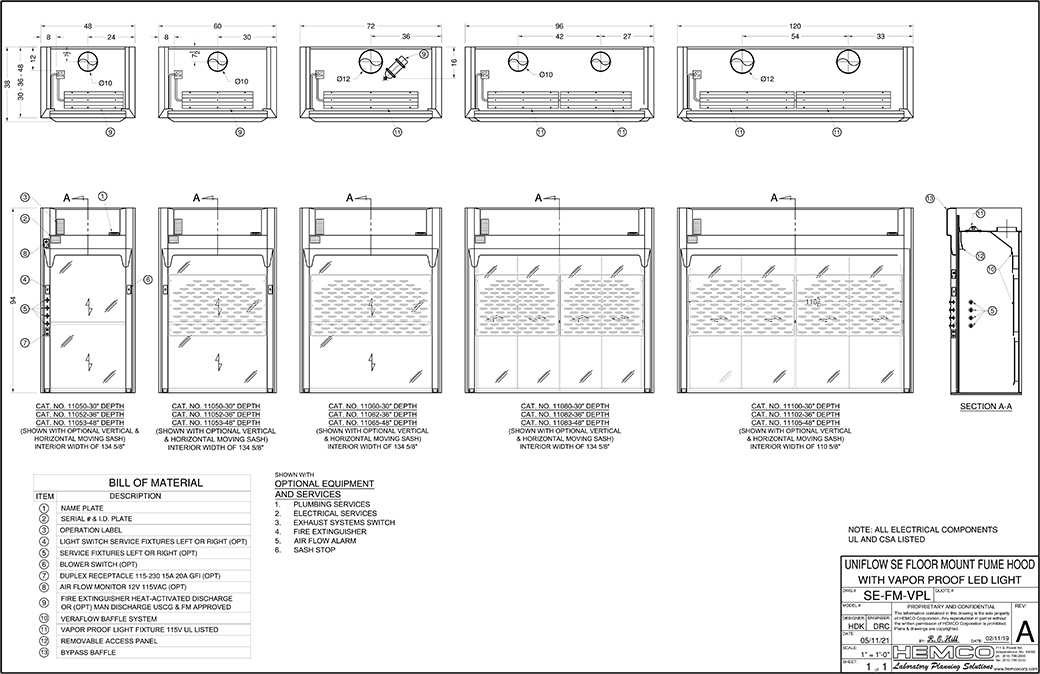

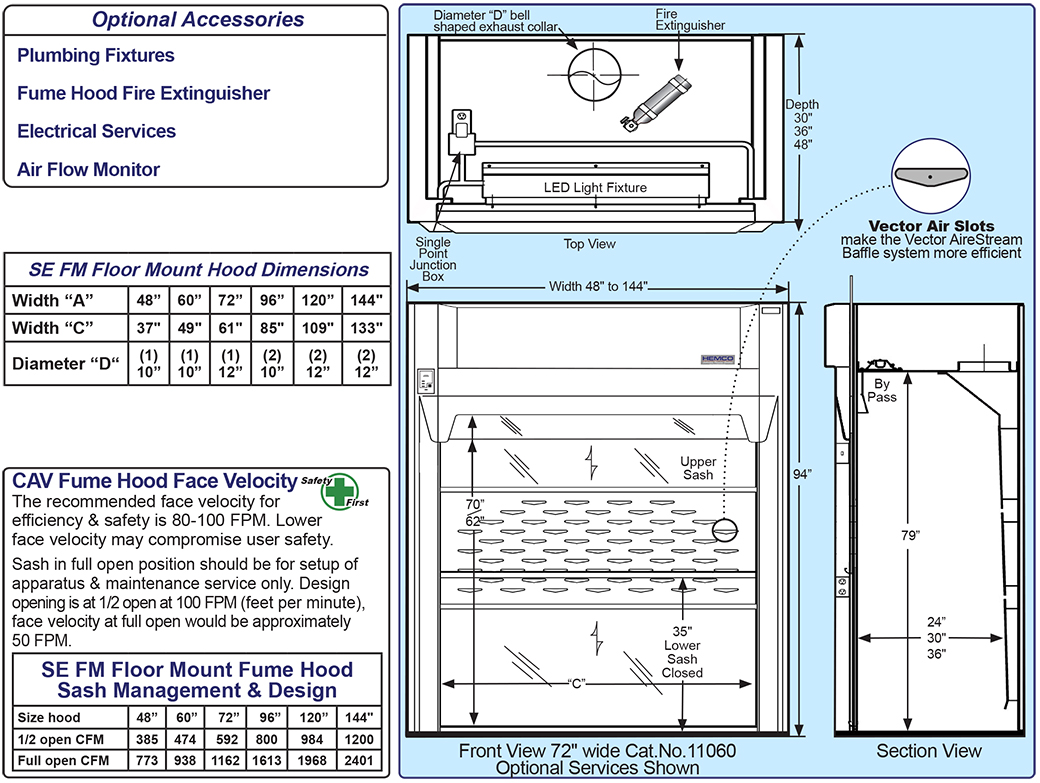

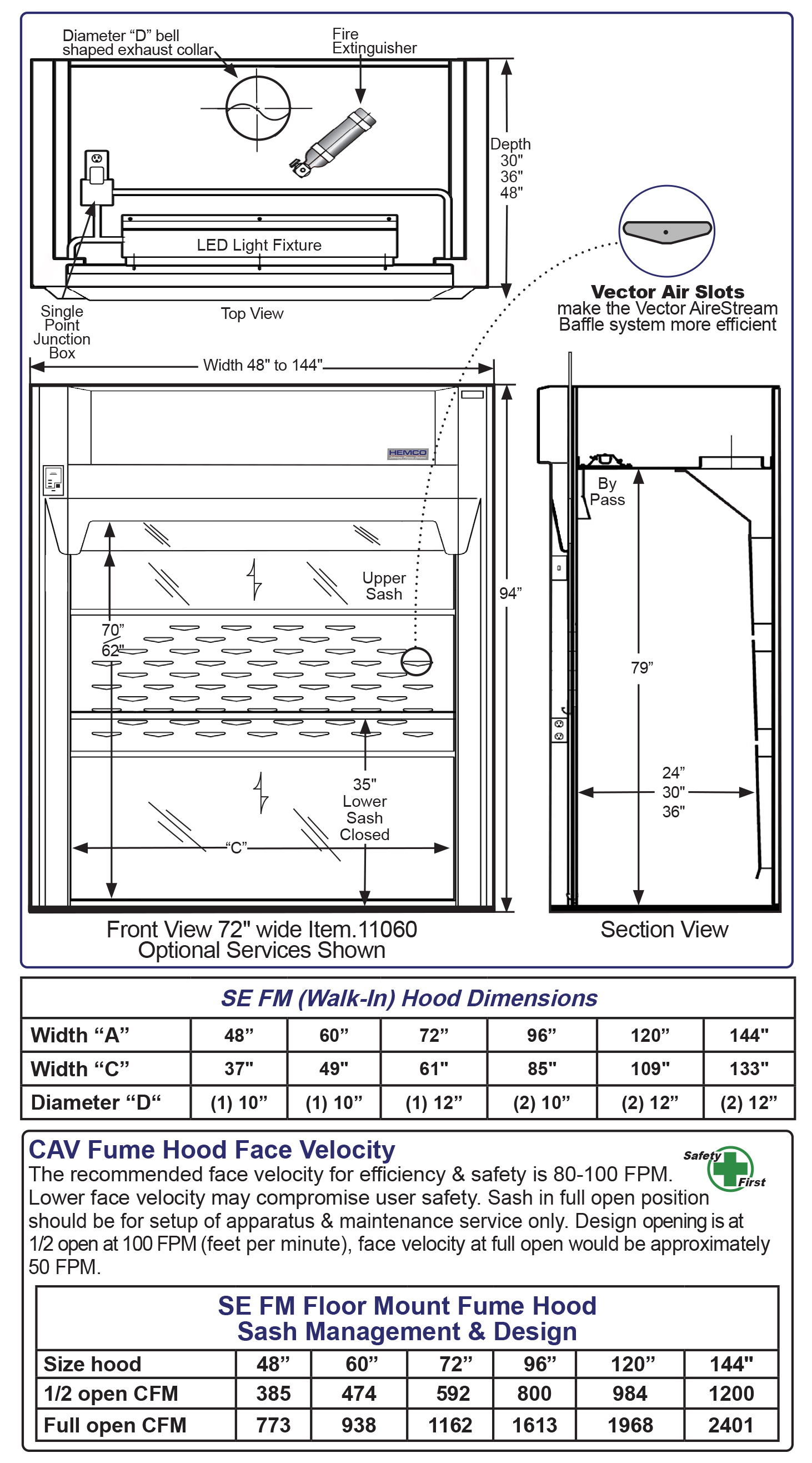

UniFlow SE FM Floor Mount Specifications | .Hood (B) Depth | .Fume Hood Width "A" | |||||
|---|---|---|---|---|---|---|---|
48" | 60" | 72" | 96" | 120" | 144" | ||
1. UniFlow SE FM Floor Mounted CAV Bypass Fume Hood with Vapor-Proof Light: Superstructure to be modular composite chemical resistant FRP non-metal construction. Interior fume chamber to be glass-smooth with Vector Aire Stream Baffle System & bell shaped exhaust collar. Picture frame upper & lower sash opening with counter balanced sashes of clear tempered safety glass with chemical resistant PVC framing, track, and aerodynamic sash lift. Vapor proof LED light fixture & control switch are wired to a single point junction box, 115/60Hz, AC. All electrical components are U.L.listed. Horizontal sliding doors optional on 96” & 120” hoods, consult factory. | 30" | 11048 | 11050 | 11060 | 11080 | 11100 | 11120 |
36" | 11042 | 11052 | 11062 | 11082 | 11102 | 11122 | |
48" | 11043 | 11053 | 11063 | 11083 | 11103 | 11125 | |
2. UniFlow SE Fume Hood with VAV:Same as #1 above except equipped with Variable Air Volume VAV restricted bypass feature in place of CAV bypass feature. Ducting must be connected to optional VAV exhaust system controls. | 30" | 11049 | 11059 | 11069 | 11089 | 11015 | 11031 |
36" | 11046 | 11056 | 11066 | 11086 | 11016 | 11032 | |
48" | 11047 | 11057 | 11067 | 11087 | 11017 | 11033 | |
3. UniFlow SE Fume Hood with Explosion-Proof Light: Same as # 1 above except equipped with explosion proof vapor tight light fixture. Class I Div II Group A B C & D, Class II Div II Group F & G, 115/230V, 50/60Hz U.L. listed Fixture is installed but must be field wired to local codes. | 30" | 11041 | 11051 | 11061 | 11081 | 11101 | 11121 |
36" | 11044 | 11054 | 11064 | 11084 | 11047 | 11047 | |
48" | 11045 | 11055 | 11065 | 11085 | 11105 | 11127 | |
4.UniFlow SE Fume Hood International Configuration: Same as #1 above except equipped to comply to international electrical configuration. 220V/50Hz AC. Optional international electrical configuration, electrical switches, receptacles and exhaust blowers available. | 30" | 11142 | 11152 | 11162 | 11182 | 11112 | 11128 |
36" | 11143 | 11153 | 11163 | 11183 | 11123 | 11129 | |
48" | 11144 | 11154 | 11164 | 11184 | 11124 | 11130 | |
5. Horizontal Sliding Doors (4 panels on 2 tracks) - for 96”, 120” & 144” hoods only | FMHS-8 | FMHS-10 | FMHS-12 | ||||

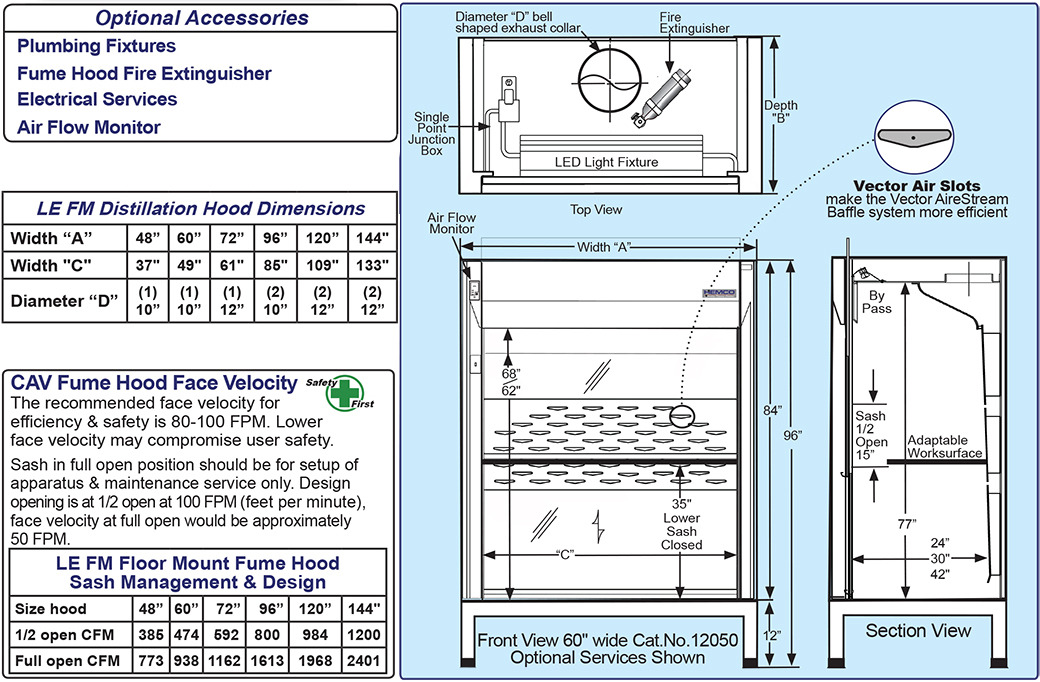

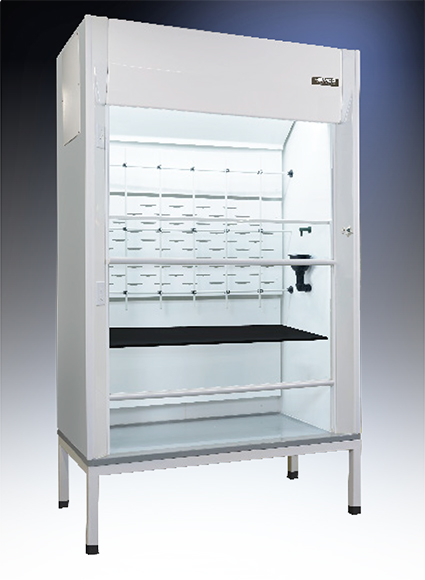

LE FM Floor Mount Fume Hoods
UniFlow LE FM Floor Mount Fume Hoods are ideally suited for synthesis, distillation, and rack-type operations where tall apparatus is used or equipment is rolled into the work area. Modular construction allows units to be shipped disassembled for on-site assembly.
Non-metallic construction provides total chemical and corrosion resistance for long-term durability. The one-piece interior chamber features smooth, coved corners for easy cleaning.
Engineered airflow system maintains consistent air movement through the chamber and into the exhaust collar for improved containment and efficiency.
Factory-installed vapor-proof LED lighting with polished stainless steel reflectors. Energy-efficient and U.L. listed.
Sash management system helps reduce exhaust volume and improve overall energy efficiency.
When the sash is in the lowered position, airflow is directed to safely contain fumes away from the user.
62" vertical sash height allows full access for loading, unloading, and working with large or tall equipment. Includes upper and lower sash with 76" stand-up height and interior depths of 30", 36", and 48".
Double vertical sash design provides 68" of viewing access. Sashes are counterbalanced with 3/16" tempered safety glass, non-metallic PVC framing and track, and aerodynamic sash lifts for smooth operation. Horizontal sliding doors available on 96", 120", and 144" wide models.
Aerodynamic face opening improves airflow efficiency and directs air evenly into the chamber and through the baffle system.
Energy Efficient vapor proof LED light fixture with polished stainless steel reflectors, and light switch on left column, all factory installed.
Service fixtures are color-coded for easy identification and integration.
Electrical components can be mounted on either side for flexible installation.
Continuously monitors face velocity airflow to meet ANSI and OSHA requirements.
Slightly reduced viewing height (up to 68”)
Designed for standard floor-mounted applications
Provides efficient, reliable containment for typical lab environments
Sash Options
Standard Vertical Sashes
For HEMCO fume hoods,4',5',& 6' wide. The sash may be lifted to the completely open position for maximum access thru the fume chamber. Sash stops available.
Horizontal Sliding Sashes
For HEMCO fume hoods, 8' 10', & 12' wide. The maximum sash opening for the horizontal sash is 1/2 that of the vertical sashes. The smaller opening, means less air exhausted resulting in energy savings.

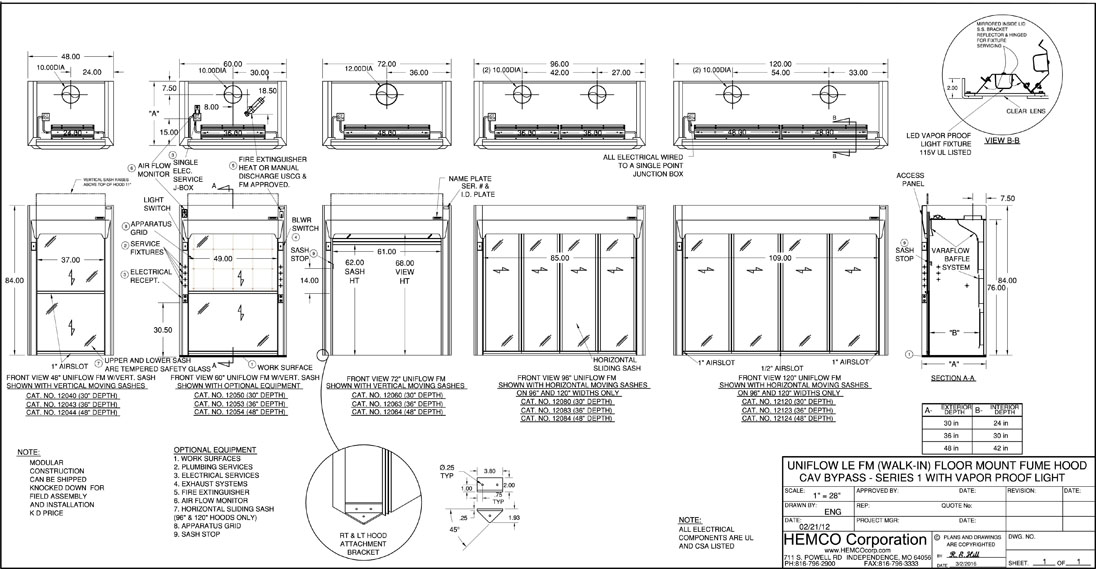

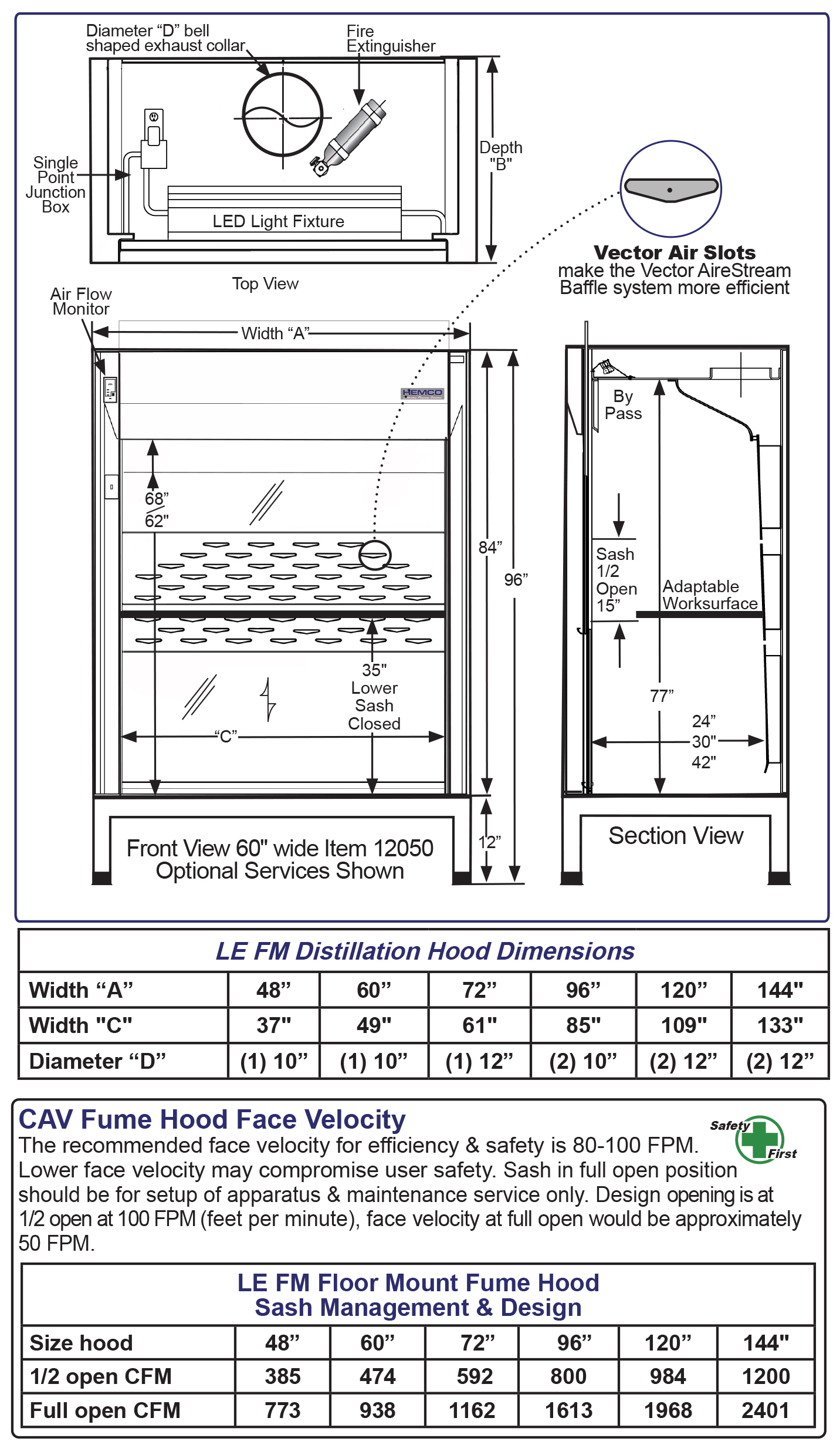

UniFlow LE FM Floor Mounted Specifications | (B) Depth | Fume Hood Width "A" | |||||
|---|---|---|---|---|---|---|---|
48" | 60" | 72" | 96" | 120" | 144" | ||
1. UniFlow LE FM Floor Mounted CAV Bypass Fume Hood with Vapor-Proof Light:Super structure to be modular composite chemical resistant FRP non-metal construction. Interior fume chamber to be glass-smooth with bell shaped exhaust collar. Picture frame upper and lower sash opening with counterbalanced upper and lower sashes of clear tempered safety glass with chemical resistant PVC framing, track, and aerodynamic sash lift. Vapor proof LED light fixture and control switch are wired to a single point junction box. 115/60Hz, AC All electrical components are U.L. listed. | 30" | 12040 | 12050 | 12060 | 12080 | 12100 | 12120 |
36" | 12043 | 12053 | 12063 | 12083 | 12123 | ||
48" | 12044 | 12054 | 12064 | 12084 | 12124 | ||
2. UniFlow LE Fume Hood with VAV: Same as #1 above except equipped with vapor proof light fixture and VAV. | 30" | 12145 | 12155 | 12165 | 12185 | 12105 | 12125 |
36" | 12146 | 12156 | 12166 | 12186 | 12106 | 12126 | |
48" | 12147 | 12157 | 12167 | 12187 | 12107 | >12127< | |
3. UniFlow LE Fume Hood with Explosion-Proof Light: Same as #1 above except equipped with explosion proof vapor tight light fixture. Class I Div II Group A B C & D, Class II Div II Group F & G, 115/ 230V, 50/60Hz U.L. listed fixture is installed but must be field wired to comply with local codes. | 30" | 12142 | 12152 | 12162 | 12182 | 12012 | 12112 |
36" | 12143 | 12153 | 12163 | 12183 | 12013 | 12113 | |
48" | 12148 | 12154 | 12164 | 12184 | 12014 | 12114 | |
4. UniFlow LE Fume Hood International Configuration: Same as #1 above except equipped to comply to international electrical configuration. 220V/50Hz AC. Optional international electrical configuration, electrical switches, receptacles and exhaust blowers available. | 30" | 12440 | 12450 | 12460 | 12480 | 12430 | 12420 |
36" | 12243 | 12253 | 12263 | 12283 | 12233 | 12223 | |
48" | 12244 | 12254 | 12264 | 12284 | 12234 | 12224 | |
5. Distillation Base Table: Heavy duty welded steel tube table with chemical resistant epoxy powder coat finish, and dished phenolic resin worksurface. Offered in 12" height. | 30" | 54818 | 56018 | 57218 | 59618 | 510018 | 512018 |
36" | 54838 | 56038 | 57238 | 59638 | 510038 | 512038 | |
48" | 54848 | 56048 | 57248 | 59648 | 510048 | 512048 | |
6. Horizontal Sliding Doors: for 96”, 120” and 144” hoods only | FMHS-8 | FMHS-10 | FMHS-12 | ||||
7. Adaptable Worksurface phenolic resin worksurface is provided to slide into place at desired height. Can then be removed for larger equipment. | 30" | 21415 | 21515< | 21615 | 21815 | 211015 | 211215 |
36" | 21424 | 21525 | 21625 | 21825 | 211025 | 211225 | |
48" | 21435 | 21535 | 21635 | 21835 | 211035 | 211235 | |
