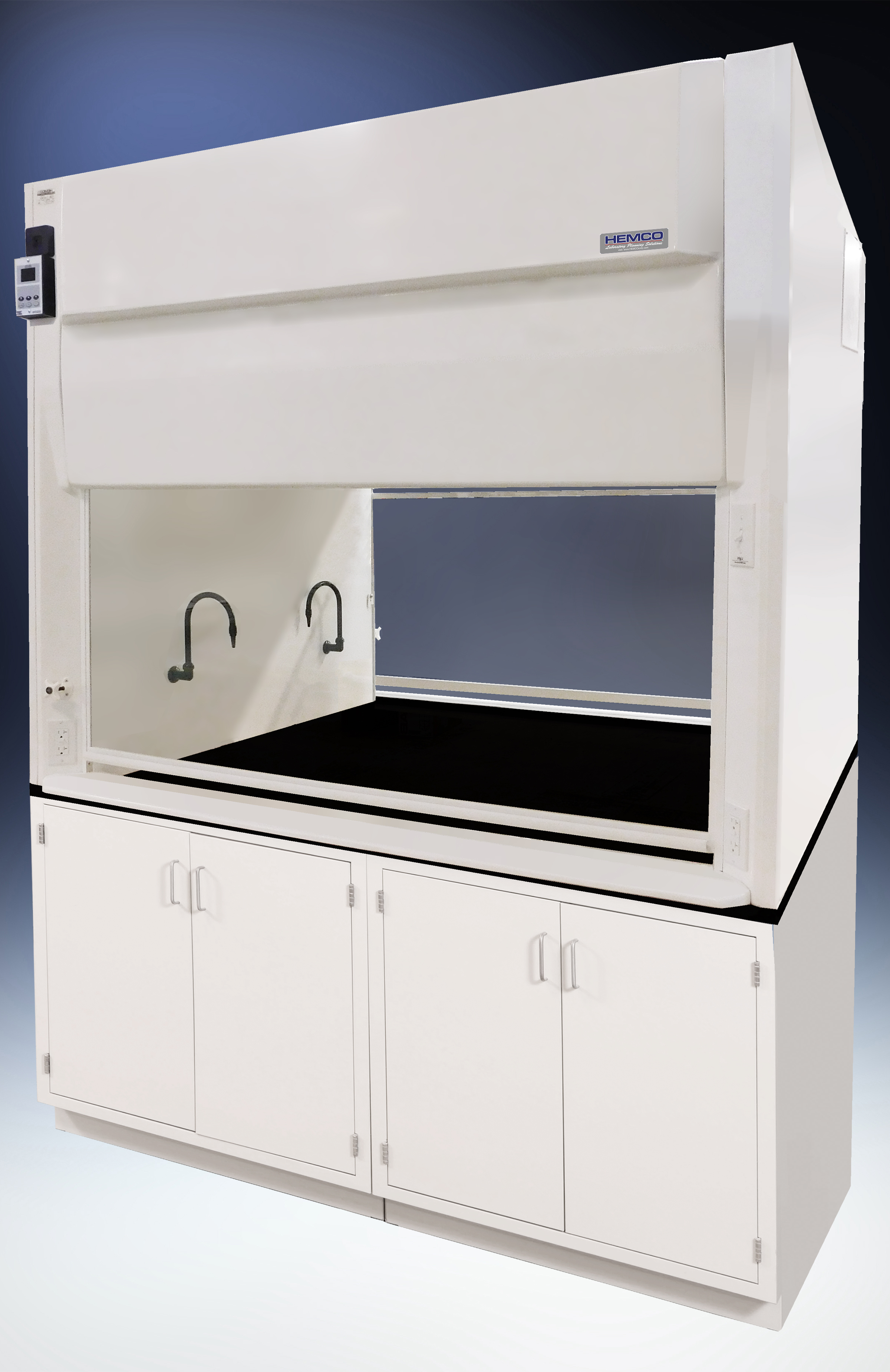

UniFlow Dual Entry Fume Hoods
UniFlow Dual Entry Fume Hoods are designed for applications requiring access and visibility from both sides of the hood. These systems are ideal for teaching environments, demonstrations, and shared laboratory workspaces where multiple users need simultaneous access.
Dual entry hoods can be installed in island configurations, peninsular layouts, or through-wall applications connecting two laboratory spaces.
Unitized dual-wall composite construction provides superior chemical resistance, strength, and durability. The seamless interior fume chamber features a glass-smooth surface with VaraFlow baffle system and bell-shaped exhaust collar. Meets NFPA 45 requirements for flame spread.
Overall unit height is 59”, with a 42” high interior fume chamber designed to accommodate a variety of laboratory applications.
Removable access panel provides access to ducting and electrical services from a single connection point.
Sash is 3/16 thick tempered safety glass, with chemical-resistant non-metallic PVC framing, track, and aerodynamic sash lift (horizontal sash). Sash handle for efficient airflow and ease of movement. Standard horizontal sash, optional vertical sash, specify sash for each side.
Full 28” viewing-height sash with 28” sash opening height for ease of access and viewing tall apparatus setup.
Sash Options
Horizontal Sliding Sashes (Standard)
Multi-panel horizontal sashes reduce airflow requirements by limiting opening size, improving energy efficiency.
Vertical Sash (Optional)
Allows full opening for maximum access to the fume chamber when needed.

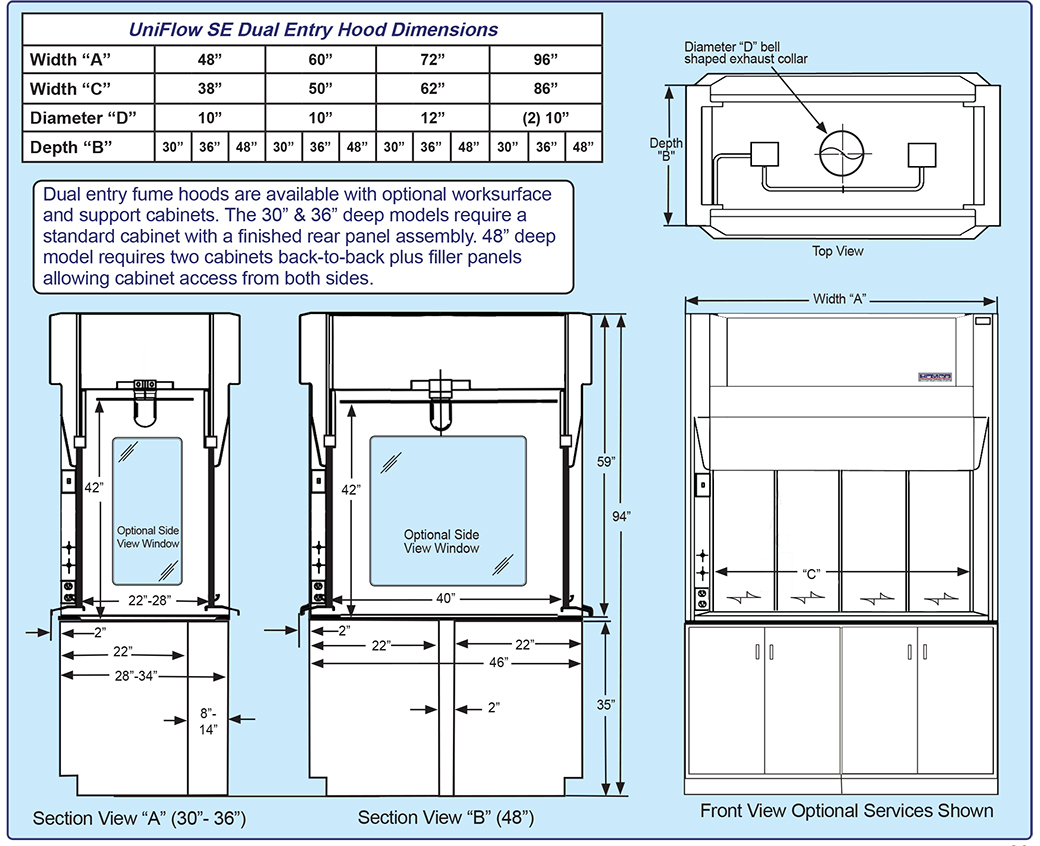

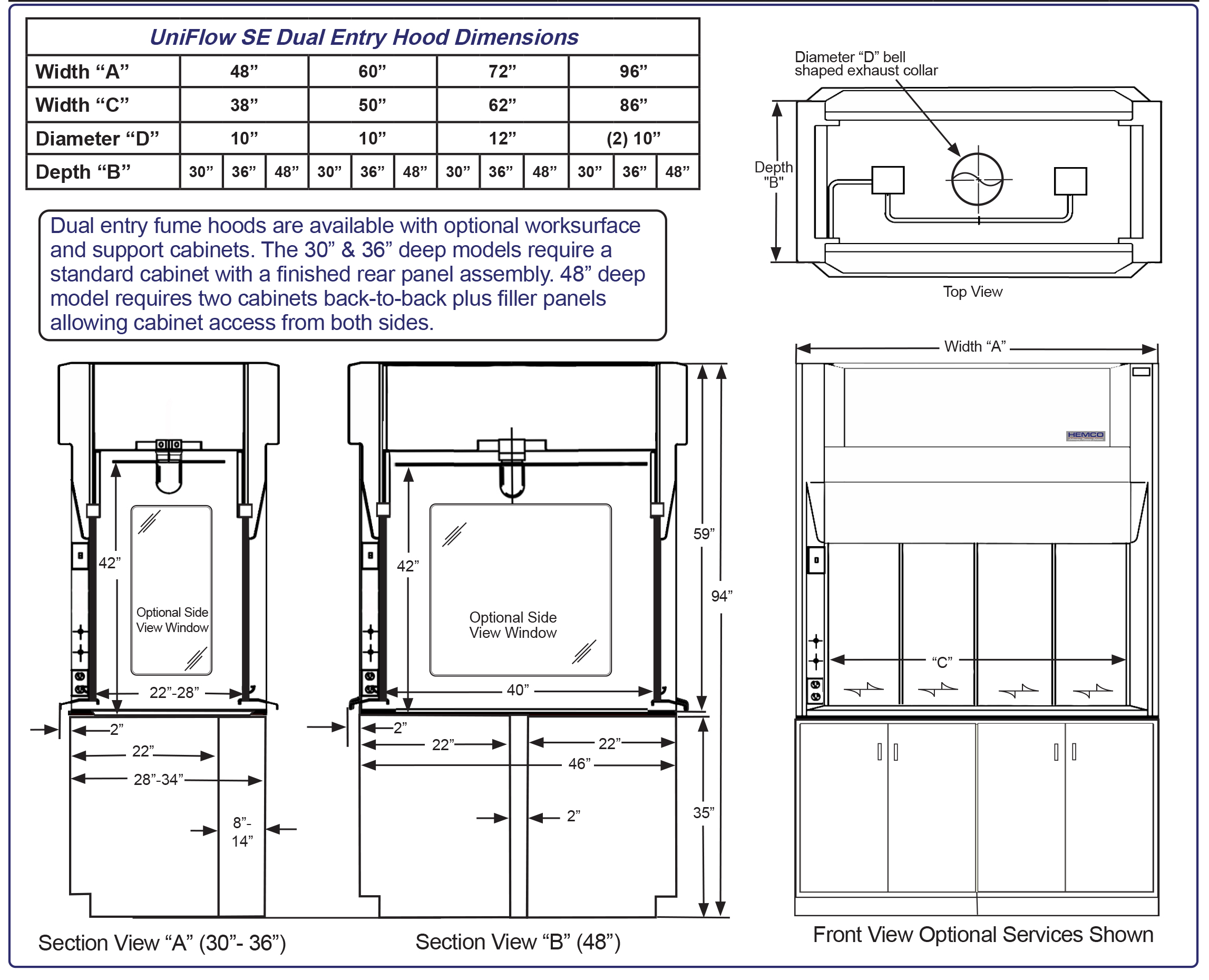

UNIFLOW SE DUAL ENTRY DESCRIPTIONS | Hood Depth B | Fume Hood Width "A" | |||
|---|---|---|---|---|---|
1.SE Dual Entry Bypass CAV Hood | 48" | 60" | 72" | 96" | |
30' | 12140 | 12150 | 12160 | 12180 | |
36" | 12340 | 12350 | 12360 | 12380 | |
48" | 12240 | 12250 | 12260 | 12280 | |
UNIFLOW SE DUAL ENTRY DESCRIPTIONS | Hood Depth B | Fume Hood Width "A" | |||
|---|---|---|---|---|---|
1.SE Dual Entry Bypass CAV Hood 30”Depth: Superstructure to be modular | 48" | 60" | 72" | 96" | |
30' | 12140 | 12150 | 12160 | 12180 | |
36" | 12340 | 12350 | 12360 | 12380 | |
48" | 12240 | 12250 | 12260 | 12280 | |
2. Vertical Moving Sash Option: Add suffix to catalog number. | VS-4 | VS-5 | VS-6 | VS-8 | |
|---|---|---|---|---|---|
3. Epoxy Resin Work Surface: Ideal for high concentrations of solvents, acids and alkalies. Excellent scratch and wear resistance. Dished to contain spillage. 1 -1/4" thick, color: black. | 30” deep worksurface | 20435 | 20535 | 20635 | 20835 |
36” deep worksurface | 20455 | 20555 | 20655 | 20855 | |
48” deep worksurface | 20445 | 20545 | 20645 | 20845 | |
4. 30” Base Cabinet Assembly:consists of cabinet(s) & 8" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view A) | 28" deep - cabinet access from one side only | 50430 | 50530 | 50630 | 50830 |
5. 36” Base Cabinet Assembly: consists of (2) cabinets & 14" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view A) | 34" deep - cabinet access from one side only | 50436 | 50536 | 50636 | 50836 |
6. 48” Base Cabinet Assembly: consists of (4) cabinets and 2" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view B) | 46" deep - cabinet access from both sides | 50448 | 50548 | 50648 | 50848 |

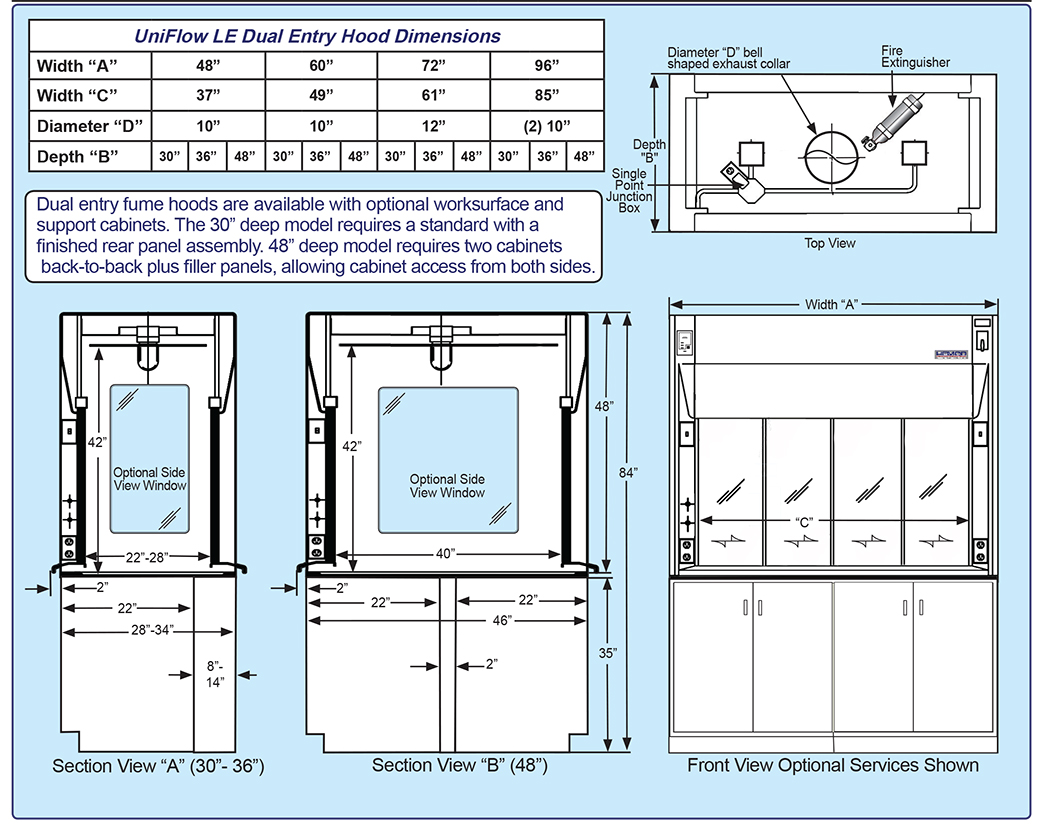

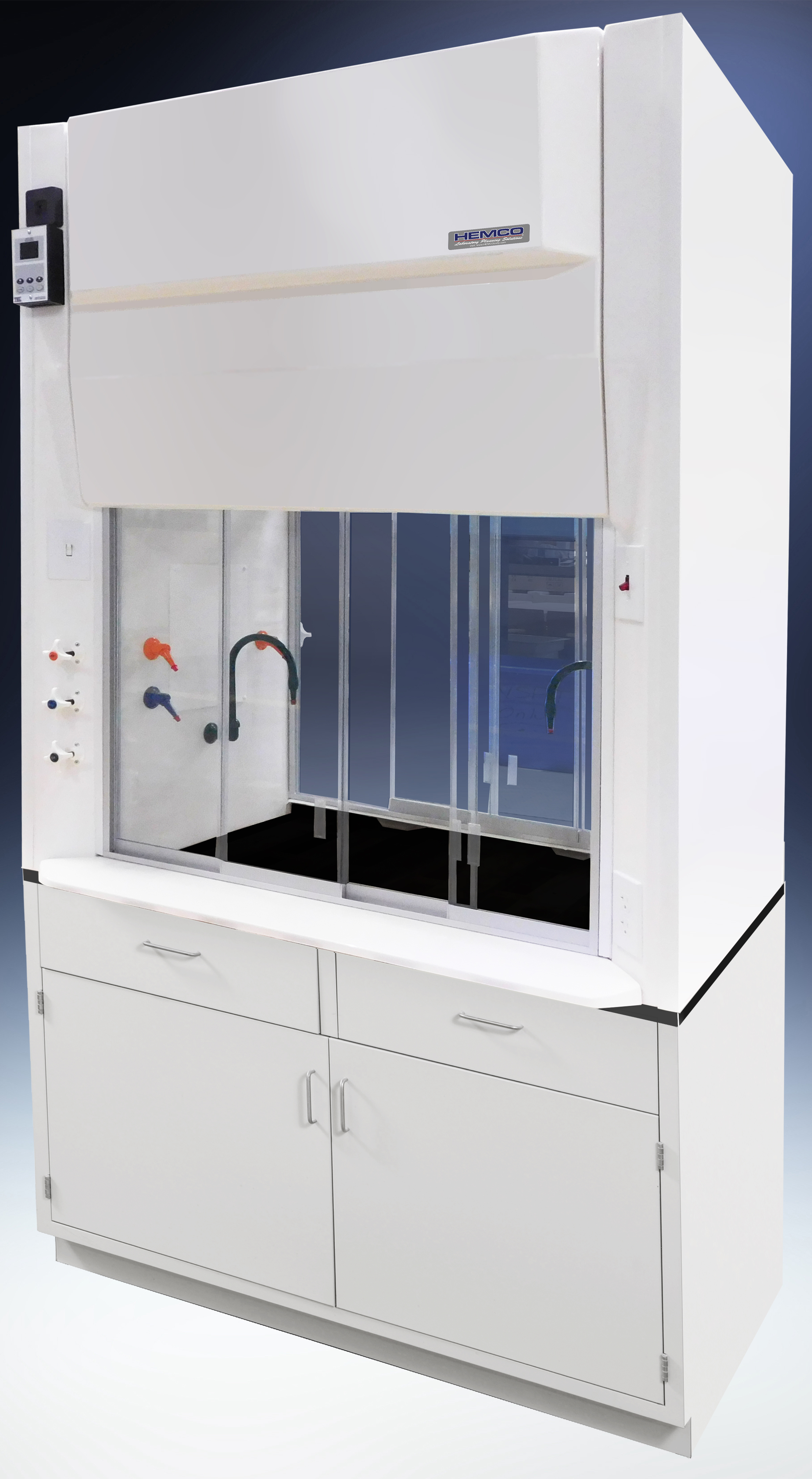

LE UniFlow Dual Entry Fume Hoods

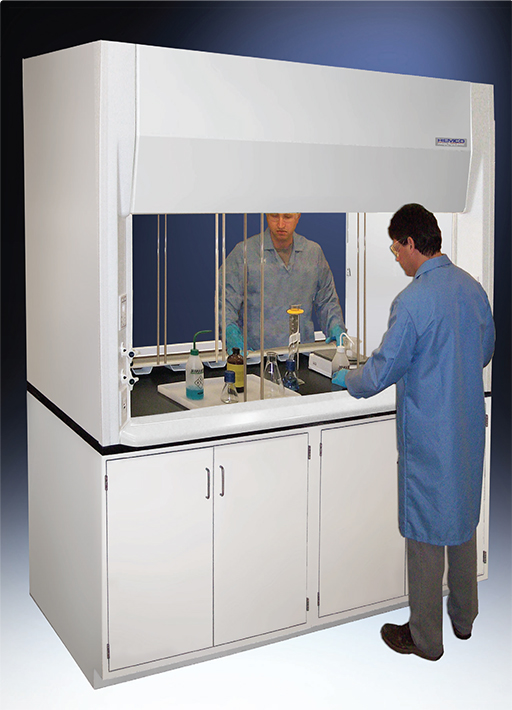

UniFlow LE Dual Entry Air Bypass Fume Hoods are ideal for demonstrations or applications where observation and access is required from both sides of the fume hood.
Available in 48", 60", 72", and 96" widths and 30", 36", and 48" depths. Hoods can be positioned on an island or in peninsular locations, or located on a common wall of two rooms with accessibility from either room.
Unitized dual-wall composite construction provides superior chemical resistance, strength, and durability. The seamless interior fume chamber features a glass-smooth surface with VaraFlow baffle system and bell-shaped exhaust collar. Meets NFPA 45 requirements for flame spread.
Overall unit height is 48”, with a 42” high interior fume chamber designed to accommodate a variety of laboratory applications.
Removable access panel provides access to ducting and electrical services from a single connection point.
Horizontal Sashes: The standard sash for dual-entry fume hoods. The maximum sash opening for the horizontal sash is 1/2 that of the vertical sashes. The smaller opening means less air is exhausted, resulting in energy savings. or Vertical Sashes: The optional sash for dual-entry fume hoods. The sash may be lifted to the completely open position for maximum access through the fume chamber. For 4',5',6', and 8' hoods only.
Interior chamber provides 28" viewing height with 24" or 30" reach-in depth and 54" working height for accommodating taller apparatus.
Sash Options
Horizontal Sliding Sashes (Standard)
Multi-panel horizontal sashes reduce airflow requirements by limiting opening size, improving energy efficiency.
Vertical Sash (Optional)
Allows full opening for maximum access to the fume chamber when needed.

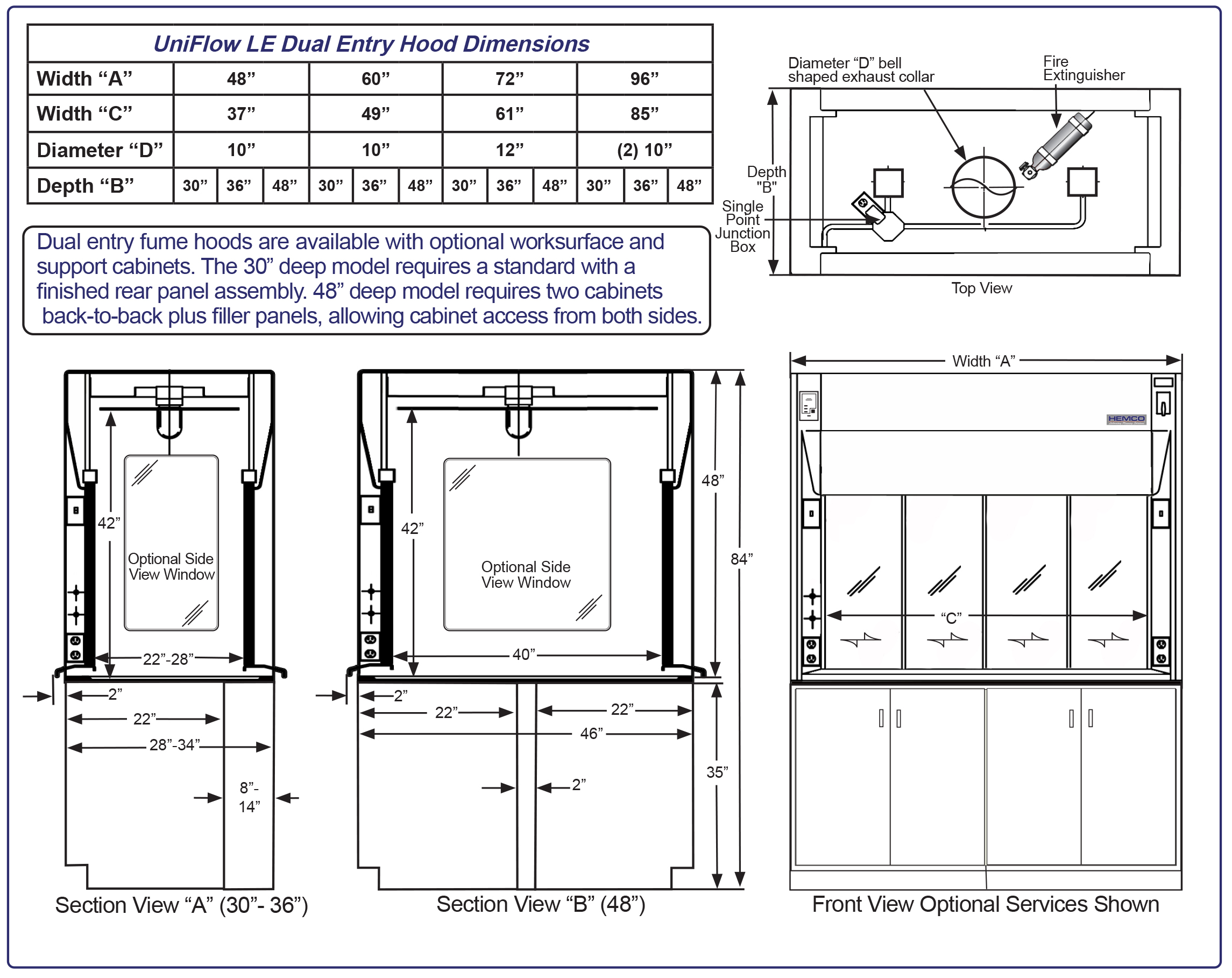

UNIFLOW LE DUAL ENTRY DESCRIPTIONS | Hood Depth B | Fume Hood Width "A" | |||
|---|---|---|---|---|---|
1. LE Dual Entry Bypass CAV Hood: | 48" | 60" | 72" | 96" | |
30" | 35431 | 35451 | 35631 | 35831 | |
36" | 35441 | 35541 | 35641 | 35841 | |
48" | 35451 | 35551 | 35651 | 35851 | |
UNIFLOW LE DUAL ENTRY DESCRIPTIONS | Hood Depth B | Fume Hood Width "A" | |||
|---|---|---|---|---|---|
1. LE Dual Entry Bypass CAV Hood: Superstructure to be modular composite chemical resistant FRP non-metal construction. Interior fume chamber to be glass-smooth with bell shaped exhaust collar. Picture frame sash opening in front with (4) horizontal moving sashes constructed of clear tempered safety glass with chemical resistant framing and track. Vapor proof light fixture and control switch are wired to a single point junction box. 115/60Hz, AC All electrical components are U.L. listed. | 48" | 60" | 72" | 96" | |
30" | 35431 | 35451 | 35631 | 35831 | |
36" | 35441 | 35541 | 35641 | 35841 | |
48" | 35451 | 35551 | 35651 | 35851 | |
2. Vertical Moving Sash Option: Add suffix to catalog number. Includes sash stops at 1/2 open position. | VS-4 | VS-5 | VS-6 | VS-8 | |
|---|---|---|---|---|---|
3. Epoxy Resin Work Surface: Iideal for high concentrations of solvents, acids and alkalies. Excellent scratch and wear resistance. Dished to contain spillage. 11/4" thick, color: black. | 30” deep worksurface | 20435 | 20535 | 20635 | 20835 |
36” deep worksurface | 20455 | 20555 | 20655 | 20855 | |
48” deep worksurface | 20445 | 20545 | 20645 | 20845 | |
4. 30” Base Cabinet Assembly: Consists of cabinet(s) & 8" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view A) | 28" deep - cabinet access from one side only | 50430 | 50530 | 50630 | 50830 |
5. 36” Base Cabinet Assembly: Consists of (2) cabinets & 14" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view A) | 34" deep - cabinet access from one side only | 50436 | 50536 | 50636 | 50836 |
6. 48” Base Cabinet Assembly: Consists of (4) cabinets and 2" filler panels of top grade welded furniture steel. Cabinets include two hinged doors. (side view B) | 46" deep - cabinet access from both sides | 50448 | 50548 | 50648 | 50848 |
