UniFlow CE AireStream Fume Hoods
UniFlow CE AireStream Fume Hoods are designed for energy savings and user protection. These low-flow constant air volume systems eliminate the need for VAV controls, auxiliary air systems, and complex airflow components. Requires remote exhaust blower. U.L. 1805 classified.
Non-metallic construction provides total chemical and corrosion resistance for long-term durability. The one-piece interior chamber features smooth, coved corners for easy cleaning.
Overall unit height is 45”, with a 35” high interior fume chamber designed to accommodate a variety of laboratory applications.
Engineered airflow system maintains consistent air movement through the chamber and into the exhaust collar for improved containment and efficiency.
Removable panel allows convenient access to ducting, plumbing, and electrical connections from a single service point.
23" vertical sash opening allows safe and easy access for laboratory work. Features counterbalanced tempered safety glass and smooth operation.

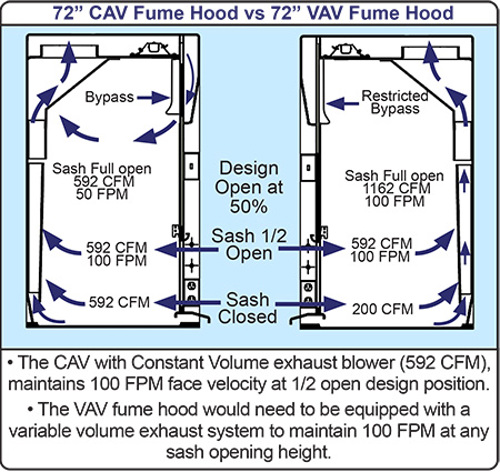

Sash stop located at the half-open position reduces airflow by up to 50% for improved energy efficiency.
Interior chamber provides 27" viewing height with compact reach-in depth, ideal for space-constrained laboratory environments.
UniFlow CE AirStream Specifications & Ordering Info | Fume Hood Width “A” | |||
30" | 36" | 48" | 72" | |
1. UniFlow CE AireStream CAV Hood with Vapor Proof Light: | 13041 | 13641 | 14841 | 17241 |
2. UniFlow CE AireStream VAV Fume Hood: | 13045 | 13645 | 14845 | 17245 |
3. UniFlow CE AireStream Hood with Explosion-Proof Light: | 13043 | 13643 | 14843 | 17243 |
4. UniFlow CE AireStream Fume Hood International Configuration: | 13046 | 13646 | 14846 | 17246 |
Start Your Next Project Today
Our team is ready to help you select the right UniFlow CE AireStream configuration for your laboratory. Contact us to discuss your project requirements.
