MicroFlow III Ductless Workstation

MicroFlow III Ductless Workstation

HEMCO MicroFlow III Ductless Workstation provides compact, self-contained filtration for fumes, odors, and non-hazardous chemical vapors.

Designed for individual workstations and expanded laboratory procedures, the MicroFlow III uses activated carbon filtration with pre-filtration to deliver effective containment without requiring external ductwork. The 24" wide workspace allows access for hands and forearms up to the elbows, making it HEMCO's largest MicroFlow unit for applications requiring more room and deeper reach.

MicroFlow III Rear view
MicroFlow III Rear view

Specifications

Cat. No.

1. MicroFlow III Workstation 115V

74010

2. Replacement carbon filter

52006

3. Replacement pre-filter

74011

4. Mobile Table 30” wide X 24” deep X 30” high

50303

Easy Filter Change

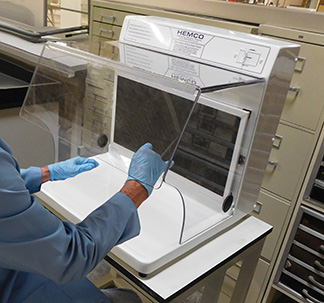

MicroFlow III
MicroFlow III

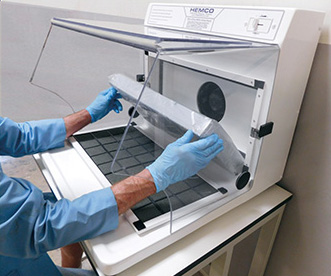

Remove plastic wrap from carbon filter & snap into place using filter clips
Remove plastic wrap from carbon filter & snap into place using filter clips

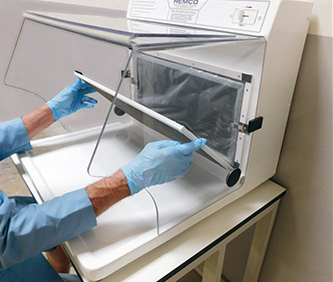

Install particle prefilter and attach using velcro
Install particle prefilter and attach using velcro

Important Considerations

MicroFlow workstations are intended for non-hazardous chemical applications only.

Users should always review SDS/MSDS data to confirm compatibility with carbon filtration systems.

Personal protective equipment should be used when handling chemicals.

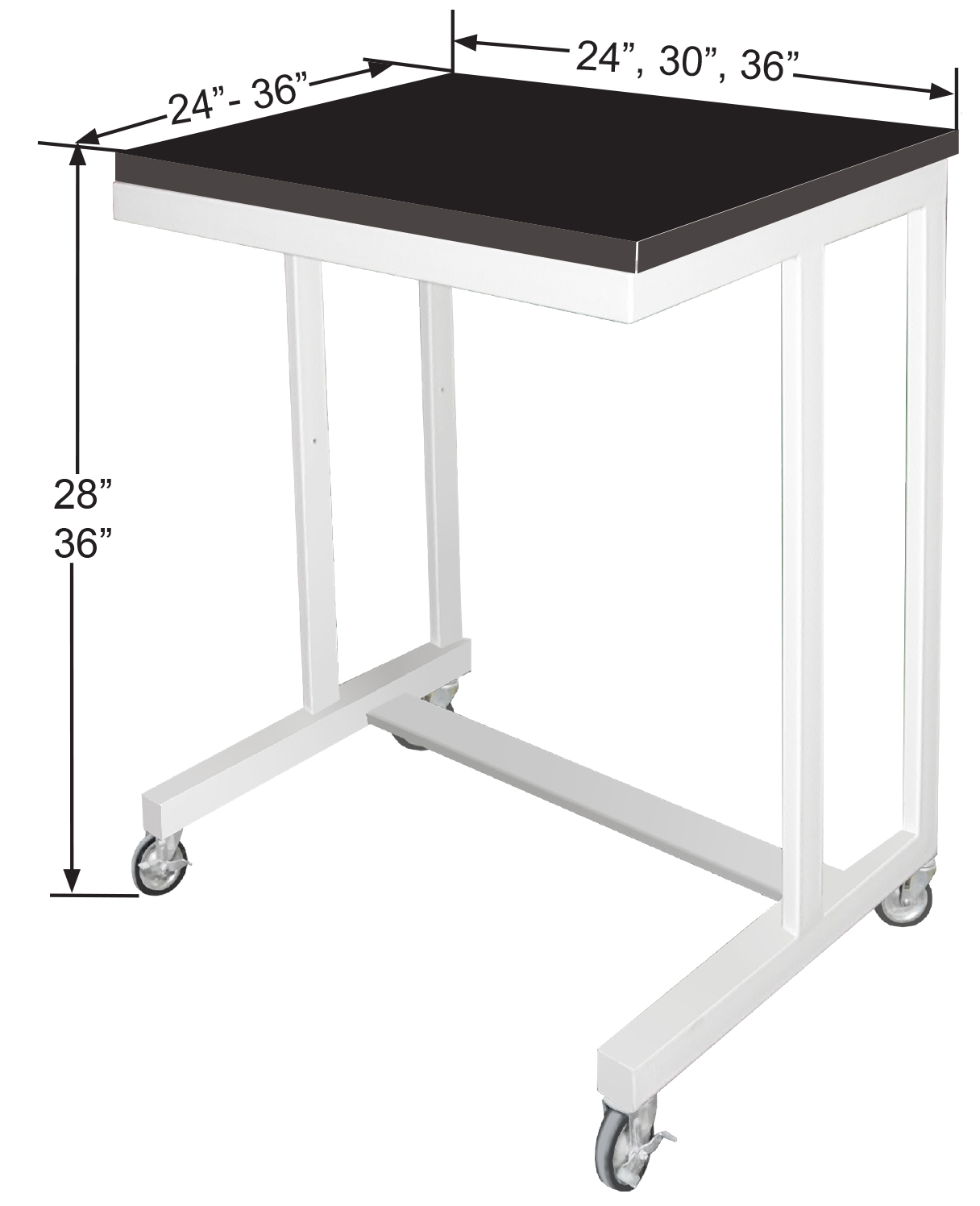

C-Frame Table

C-Frame Table

The C - Frame Table is designed to support Demonstration Hoods, VSE Enclosures and light weight laboratory equipment.

  • Mobile Table: Sizes from 30”, 36” & 48” wide

  • 36” Standard Height

  • Constructed of 1” X 2”, 16 gauge rectangular tubing, with welded construction

  • (4) adjustable leg levelers included

  • Epoxy Resin Work Surface measures 3/4” thick X 24” deep X Length depending upon size

  • Powder Coated finish resists chemicals Color: White

Specifications

Specifications

C-Frame table is designed to hold:

  • MicroFlow I Workstations

  • MicroFlow II Workstations

  • MicroFlow III Workstations

  • Demonstration Hoods

  • VSE Vented Safety Enclosures

  • Table Top Fume Hoods

Cat. No.

Width "A"

Height "B"

50303

36”

28" Sitting

50303

36"

36" Sitting

50403

48"

28" Sitting

50403

48"

36" Sitting

Start Your Next Project Today

Our team can help determine the right MicroFlow workstation size and configuration for your specific laboratory or educational application.
