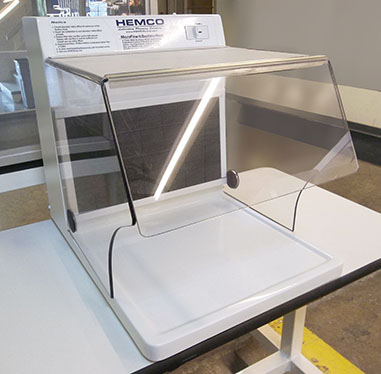

MicroFlow II Ductless Workstation

The MicroFlow II Workstation ideal for: A class 1 ductless hood workstation. Equipped with Activated Carbon filtration, for fumes, odors, non-hazardous chemical vapors and pre-filter for particulate filtration.

• Completely self contained with clear hood surround with safety viewing sash for user.

• Clear hood surround with safety viewing sash allows visibility from 3 sides, and provides both safety and access to inside work area. Sash can be conformed for use with a microscope.

• Integral work surface dished to contain spills.

• Variable speed fan control. High speed 100fpm to Low speed minimum air flow for sensitive operations.

• Operates on 115V AC / 60Hz, or 230V AC / 50Hz International, Conforms to UL, CSA, & CE requirements.

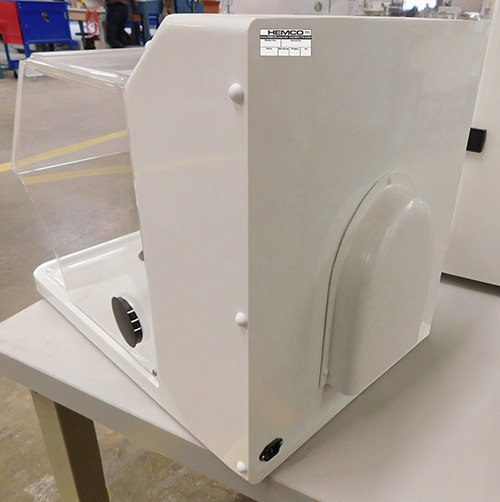

• 6' Electrical cord connects and disconnects at left rear side exits left side.

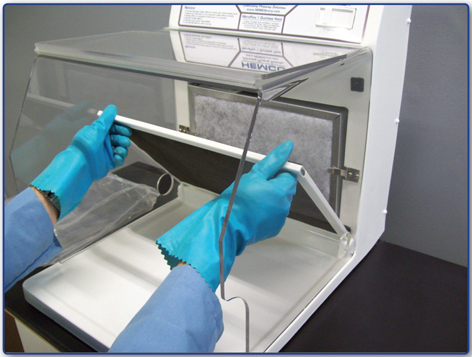

• Easy change out of used filter. Recommend filter change every 60-90 days or sooner. Filter life varies with usage.

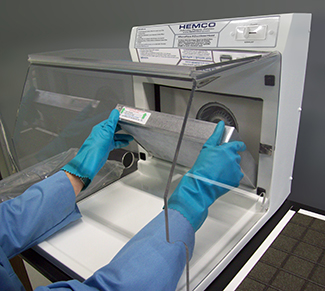

• Filter is removed and replaced inside the fume chamber for user safety.

• Dimensions 18” wide X 24” deep X 20” high allows for easy access with hands and forearms.


Maintenance Manual (PDF)

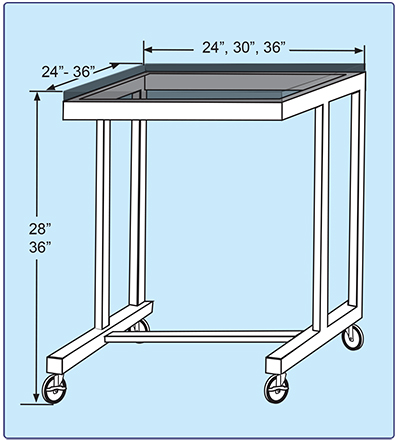

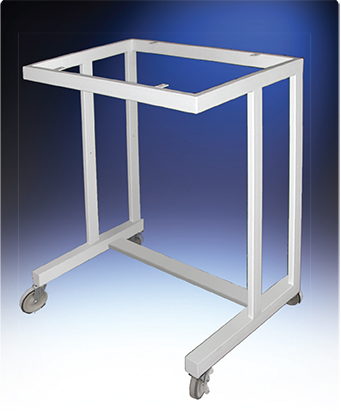

The C - Frame Table is designed to support Demonstration Hoods, VSE Enclosures and light weight laboratory equipment.

• Mobile Table: Sizes from 30”, 36” & 48” wide

• 36” Standard Height

• Constructed of 1” X 2”, 16 gauge rectangular tubing, with welded construction

• (4) adjustable leg levelers included

• Epoxy Resin Work Surface measures 3/4” thick X 24” deep X Length depending upon size

• Powder Coated finish resists chemicals Color: White
